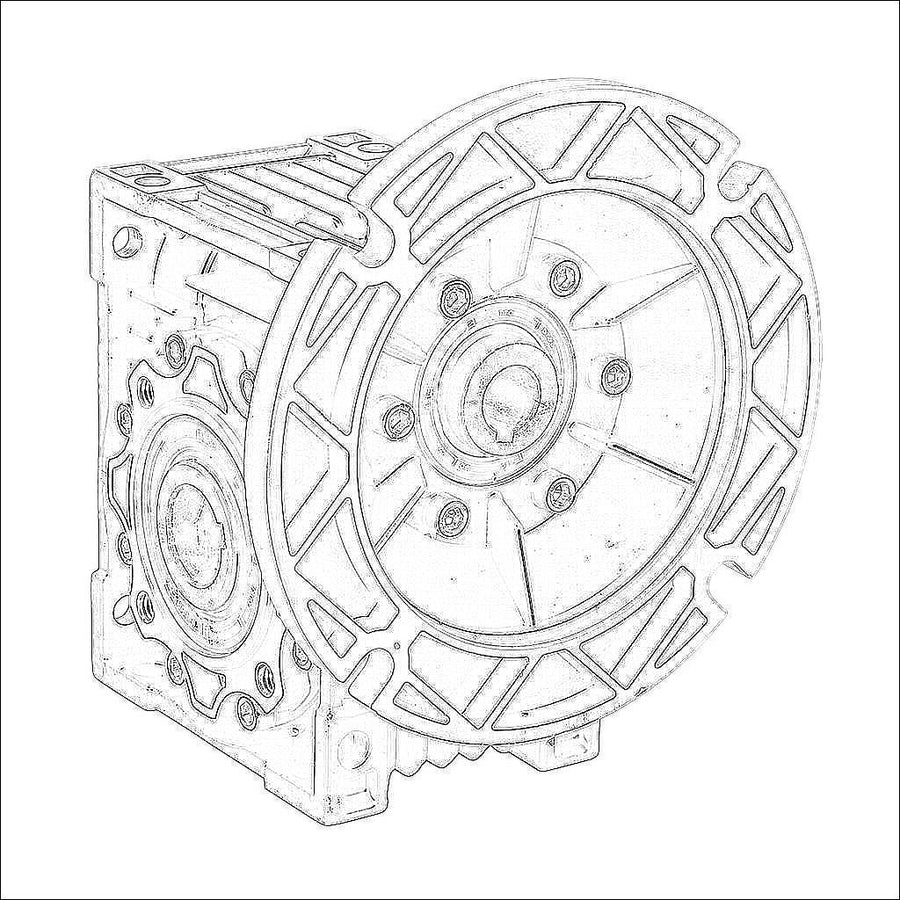

WGA-50M-040-H1
IronHorse medium-duty worm gearbox, 40:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 0.7hp at 1.0 SF, 689 lb-in mechanical output torque, 50mm center distance, cast aluminum housing, top, bottom and back mount.
$297.50

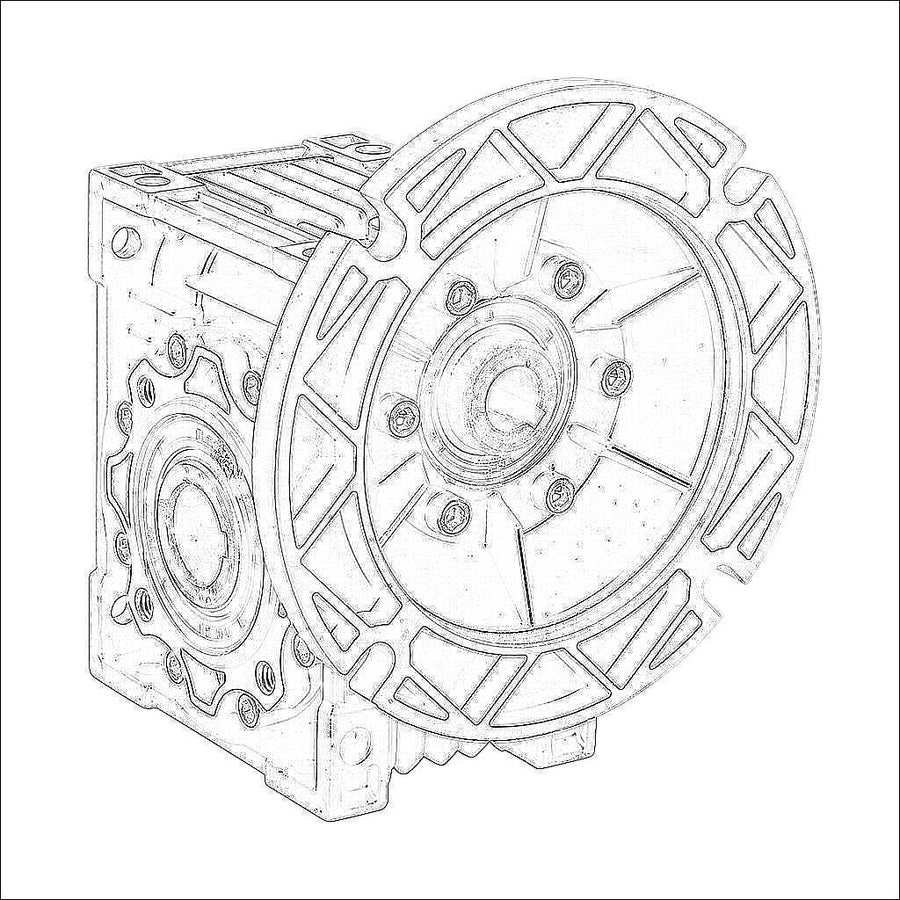

WGA-50M-060-H1
IronHorse medium-duty worm gearbox, 60:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 0.47hp at 1.0 SF, 605 lb-in mechanical output torque, 50mm center distance, cast aluminum housing, top, bottom and back mount.
$297.50

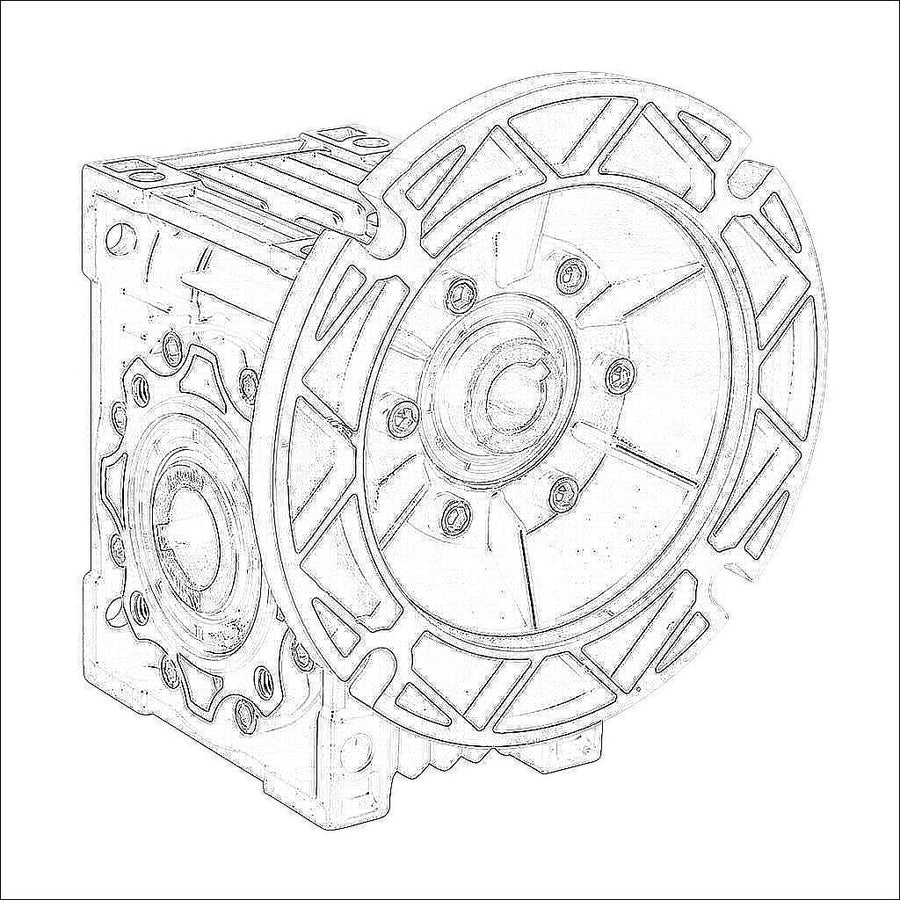

WGA-50M-080-H1
IronHorse medium-duty worm gearbox, 80:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 0.35hp at 1.0 SF, 546 lb-in mechanical output torque, 50mm center distance, cast aluminum housing, top, bottom and back mount.
$297.50

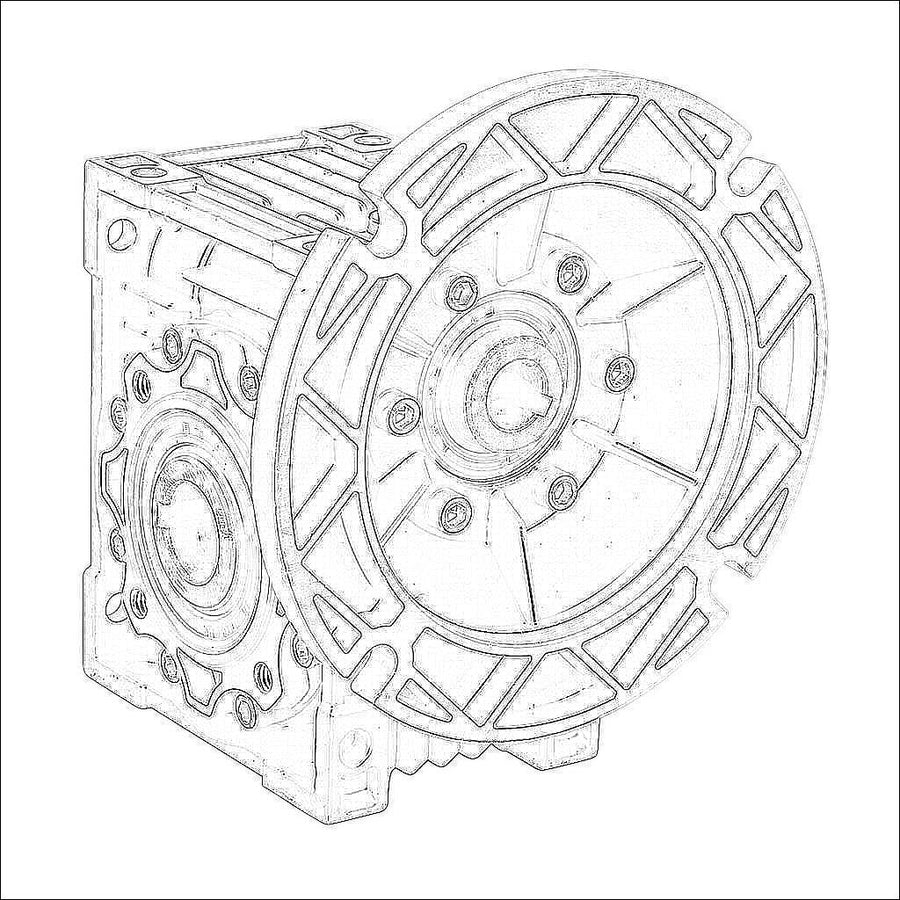

WGA-50M-100-H1
IronHorse medium-duty worm gearbox, 100:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 0.26hp at 1.0 SF, 462 lb-in mechanical output torque, 50mm center distance, cast aluminum housing, top, bottom and back mount.
$297.50
WGA-63M-060-H1
IronHorse medium-duty worm gearbox, 60:1 ratio, NEMA 56C input, hollow, 1.125in diameter output shaft, nominal 0.82hp at 1.0 SF, 1135 lb-in mechanical output torque, 63mm center distance, cast aluminum housing, top, bottom and back mount.
$382.50
WGA-63M-080-H1
IronHorse medium-duty worm gearbox, 80:1 ratio, NEMA 56C input, hollow, 1.125in diameter output shaft, nominal 0.6hp at 1.0 SF, 1027 lb-in mechanical output torque, 63mm center distance, cast aluminum housing, top, bottom and back mount.
$382.50

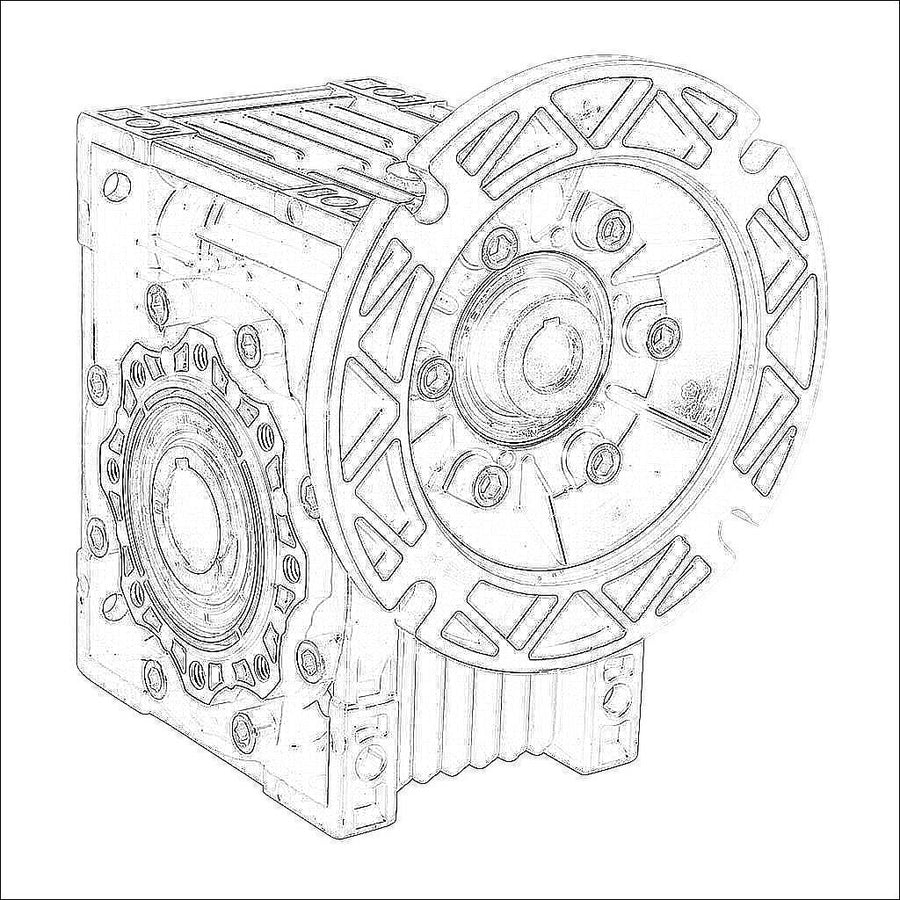

WGA-63M-100-H1
IronHorse medium-duty worm gearbox, 100:1 ratio, NEMA 56C input, hollow, 1.125in diameter output shaft, nominal 0.51hp at 1.0 SF, 992 lb-in mechanical output torque, 63mm center distance, cast aluminum housing, top, bottom and back mount.
$382.50

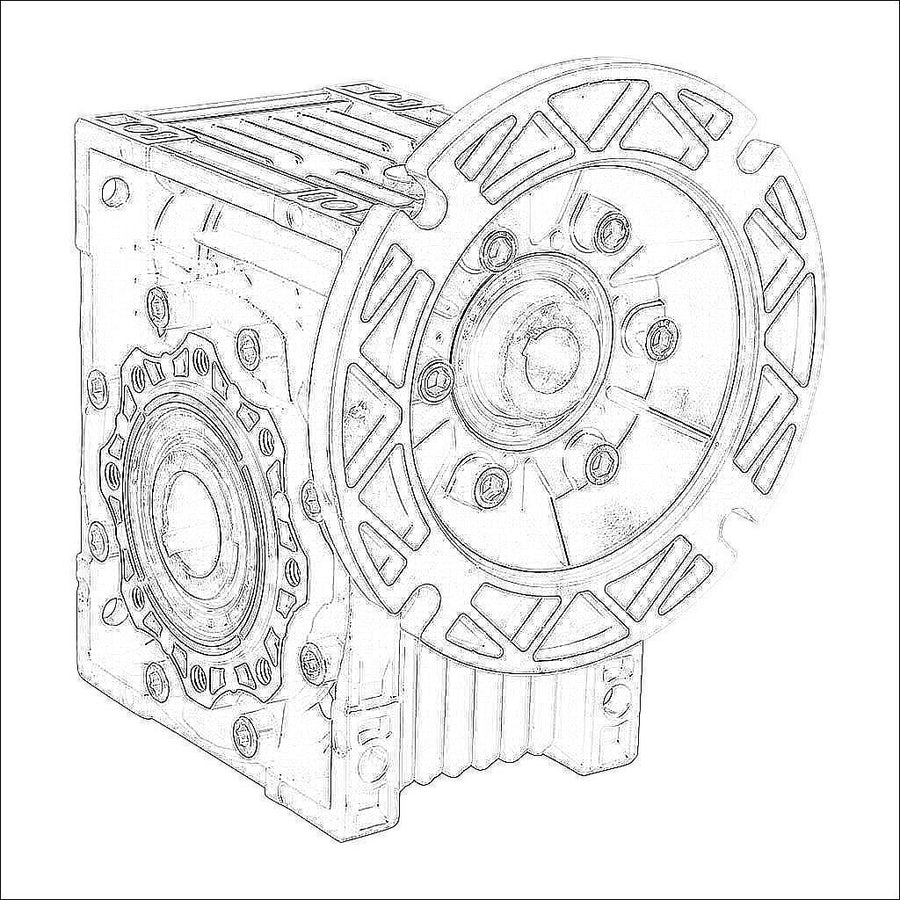

WGA-63M-010-H1
IronHorse medium-duty worm gearbox, 10:1 ratio, NEMA 56C input, hollow, 1.125in diameter output shaft, nominal 3.52hp at 1.0 SF, 1108 lb-in mechanical output torque, 63mm center distance, cast aluminum housing, top, bottom and back mount.
$428.40
WGA-63M-010-H2
IronHorse medium-duty worm gearbox, 10:1 ratio, NEMA 145TC input, hollow, 1.125in diameter output shaft, nominal 3.52hp at 1.0 SF, 1108 lb-in mechanical output torque, 63mm center distance, cast aluminum housing, top, bottom and back mount.
$428.40

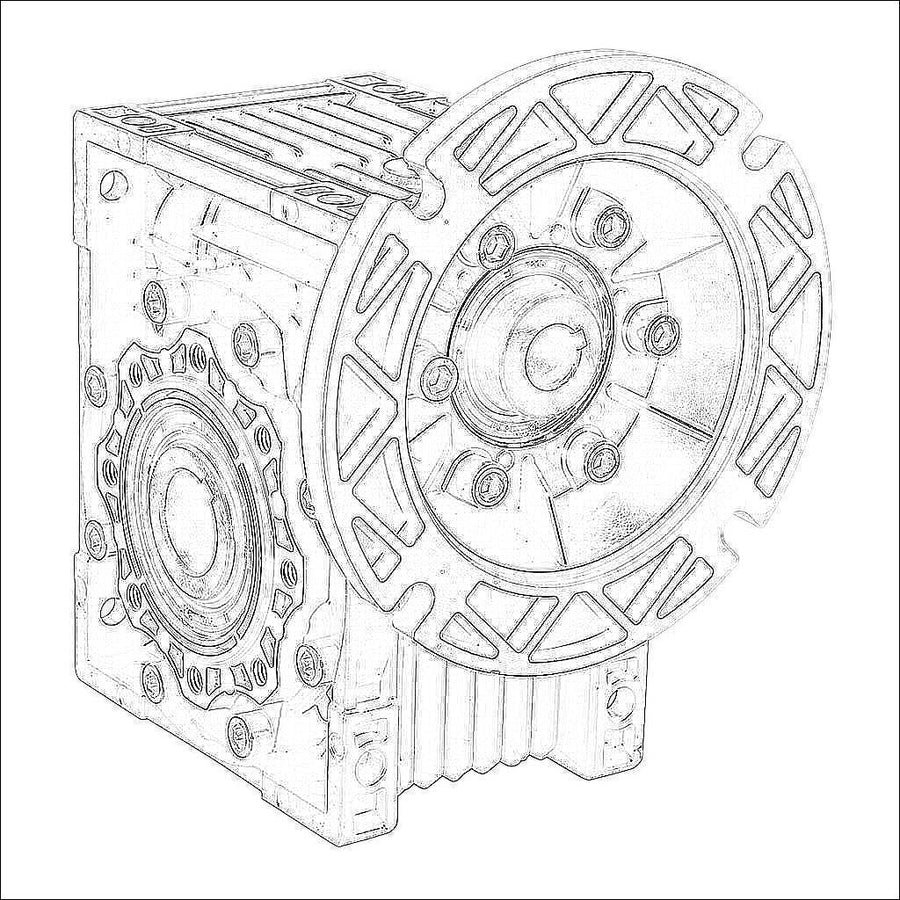

WGA-63M-020-H1
IronHorse medium-duty worm gearbox, 20:1 ratio, NEMA 56C input, hollow, 1.125in diameter output shaft, nominal 2.06hp at 1.0 SF, 1225 lb-in mechanical output torque, 63mm center distance, cast aluminum housing, top, bottom and back mount.
$428.40

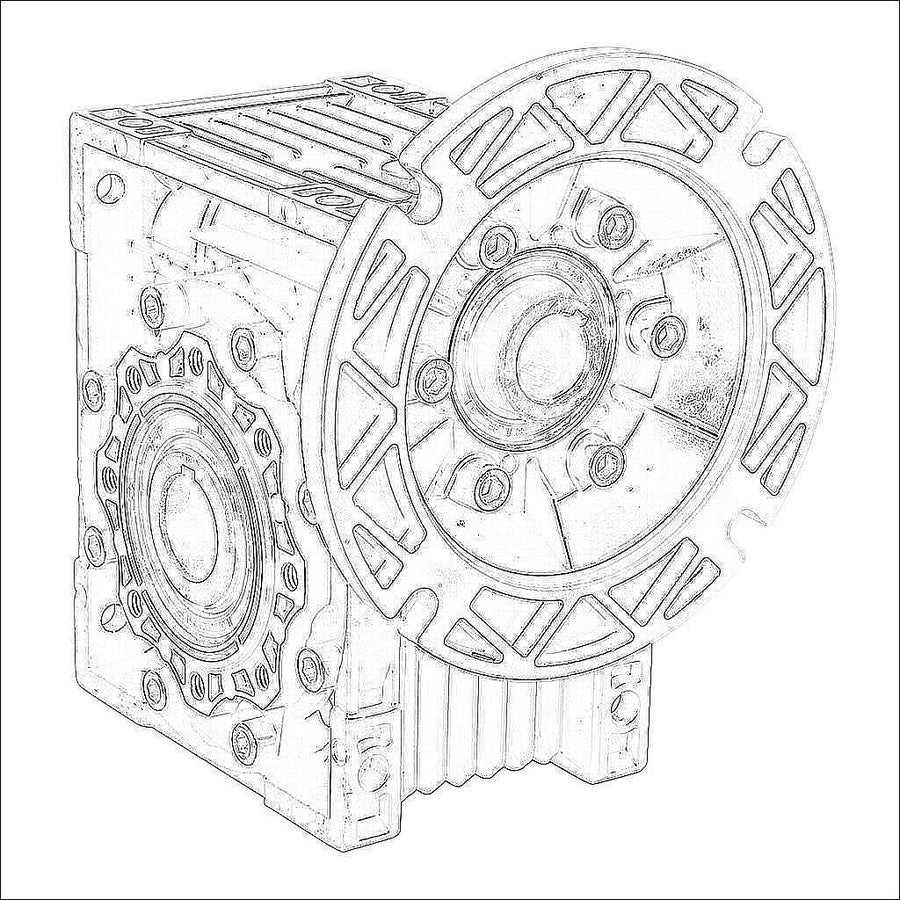

WGA-63M-020-H2
IronHorse medium-duty worm gearbox, 20:1 ratio, NEMA 145TC input, hollow, 1.125in diameter output shaft, nominal 2.06hp at 1.0 SF, 1225 lb-in mechanical output torque, 63mm center distance, cast aluminum housing, top, bottom and back mount.
$428.40

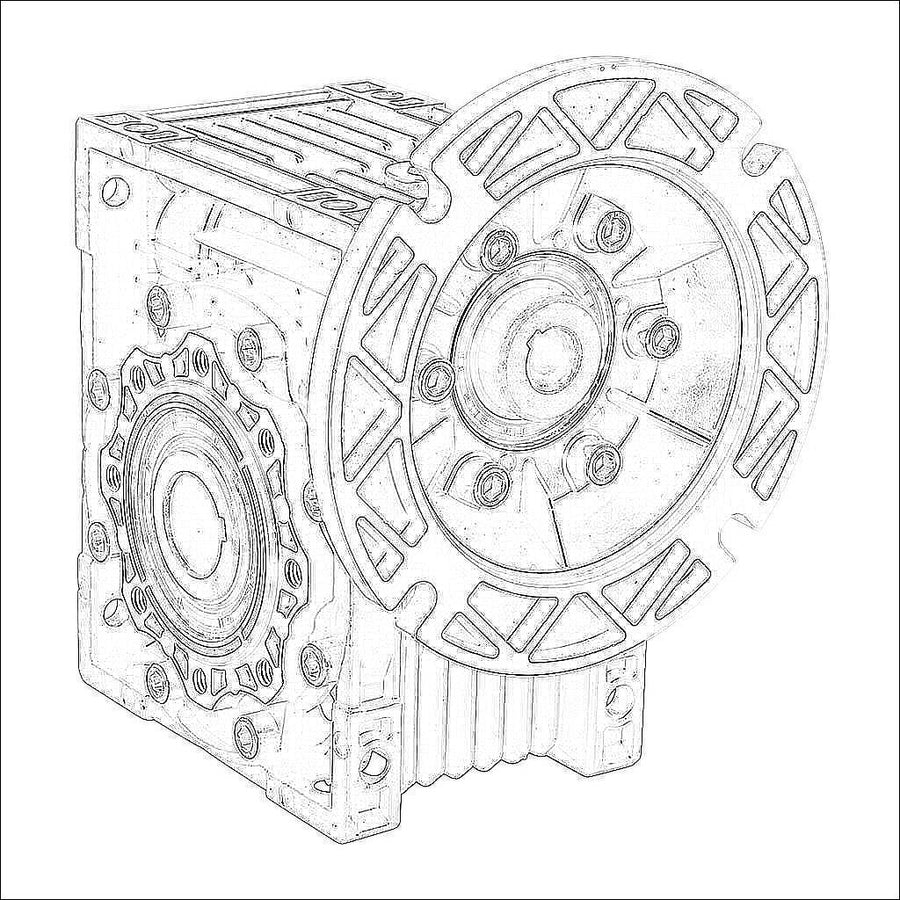

WGA-63M-030-H1
IronHorse medium-duty worm gearbox, 30:1 ratio, NEMA 56C input, hollow, 1.125in diameter output shaft, nominal 1.64hp at 1.0 SF, 1345 lb-in mechanical output torque, 63mm center distance, cast aluminum housing, top, bottom and back mount.
$428.40

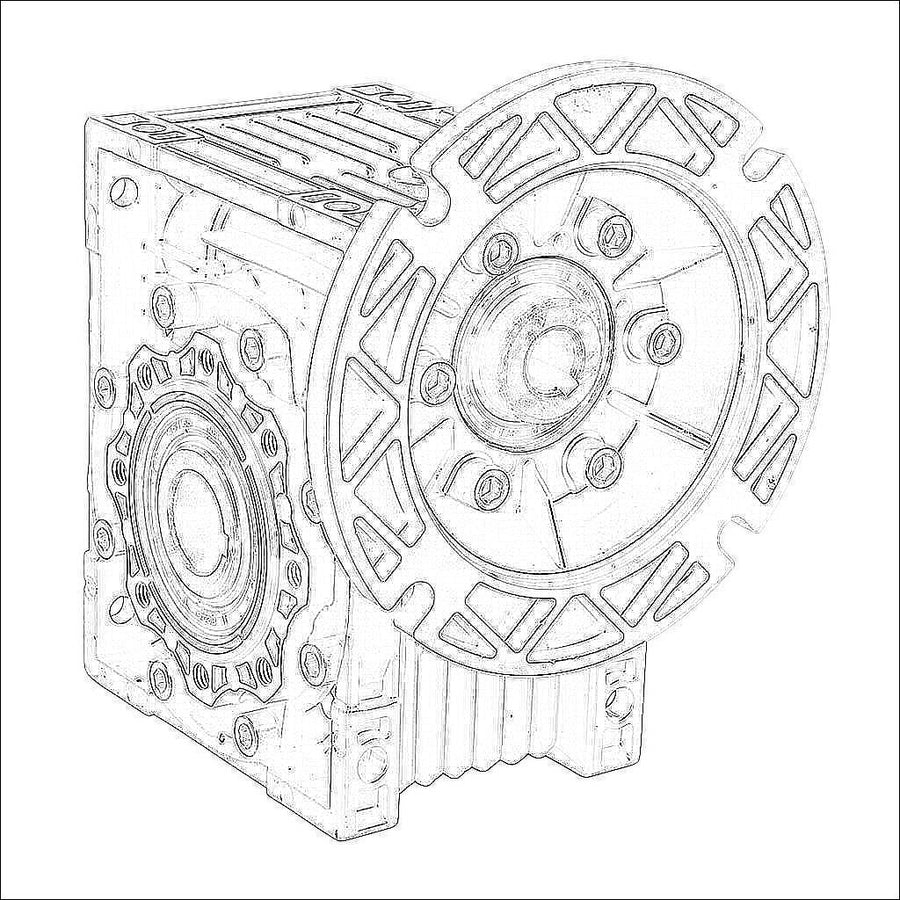

WGA-63M-040-H1
IronHorse medium-duty worm gearbox, 40:1 ratio, NEMA 56C input, hollow, 1.125in diameter output shaft, nominal 1.21hp at 1.0 SF, 1261 lb-in mechanical output torque, 63mm center distance, cast aluminum housing, top, bottom and back mount.
$428.40

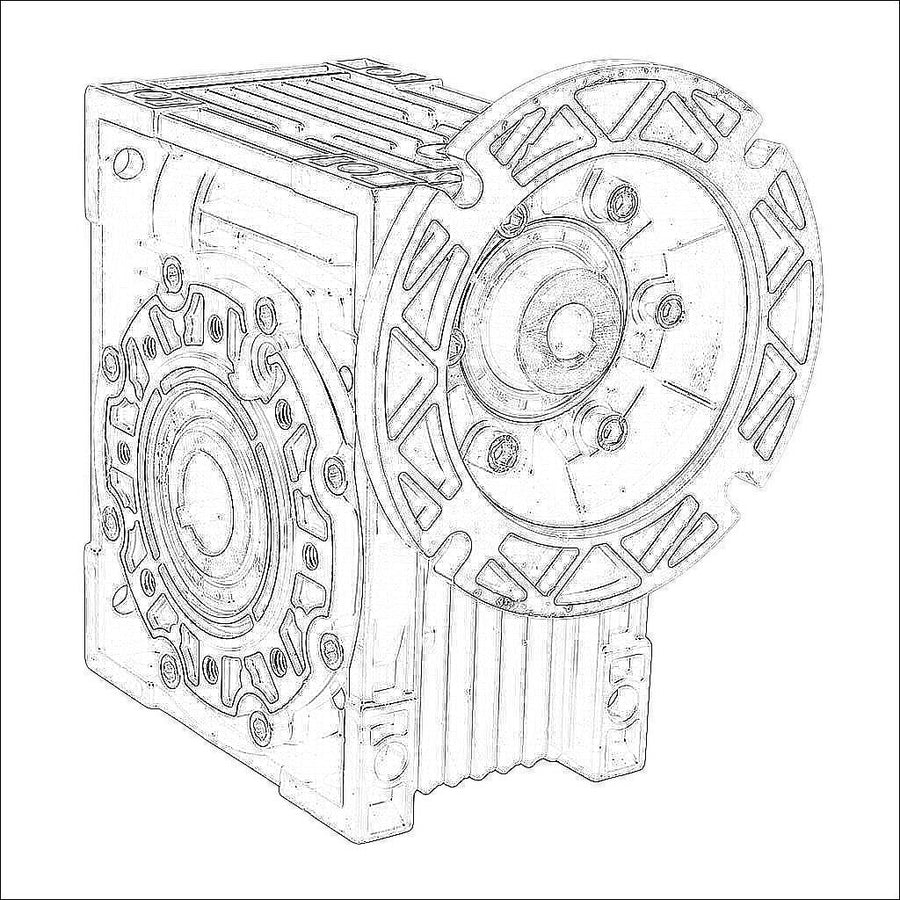

WGA-75M-010-H1
IronHorse medium-duty worm gearbox, 10:1 ratio, NEMA 56C input, hollow, 1.25in diameter output shaft, nominal 5.2hp at 1.0 SF, 1656 lb-in mechanical output torque, 75mm center distance, cast aluminum housing, top, bottom and back mount.
$625.80

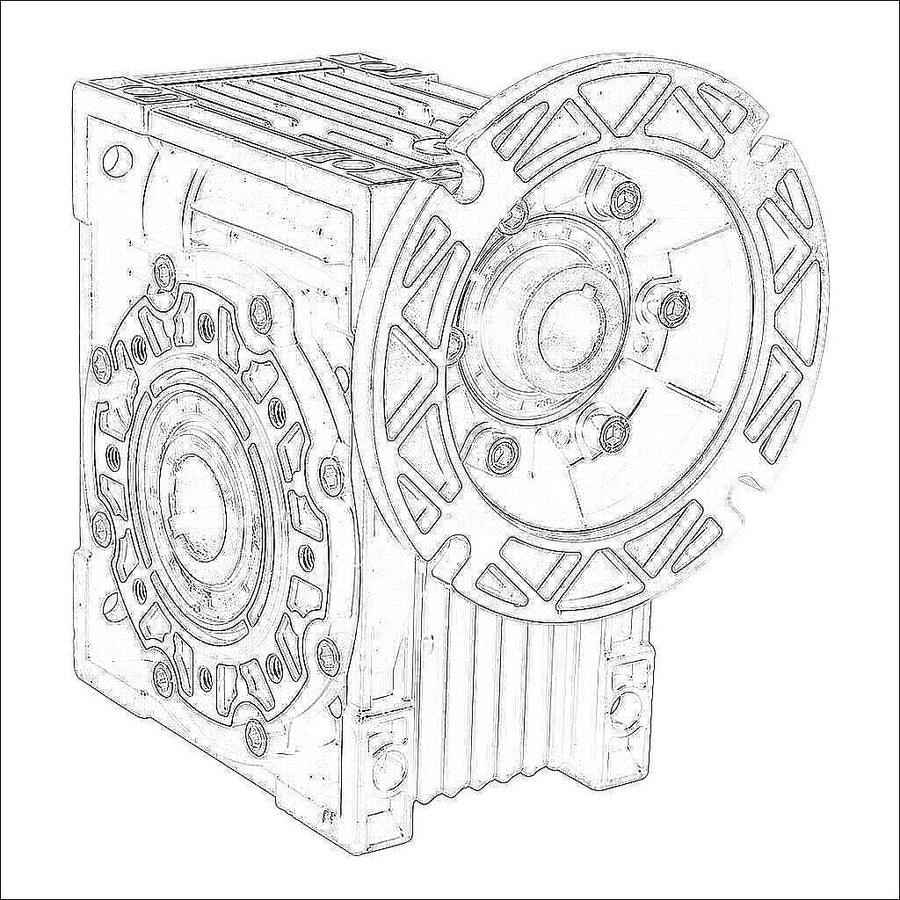

WGA-75M-010-H2
IronHorse medium-duty worm gearbox, 10:1 ratio, NEMA 145TC input, hollow, 1.25in diameter output shaft, nominal 5.2hp at 1.0 SF, 1656 lb-in mechanical output torque, 75mm center distance, cast aluminum housing, top, bottom and back mount.
$625.80

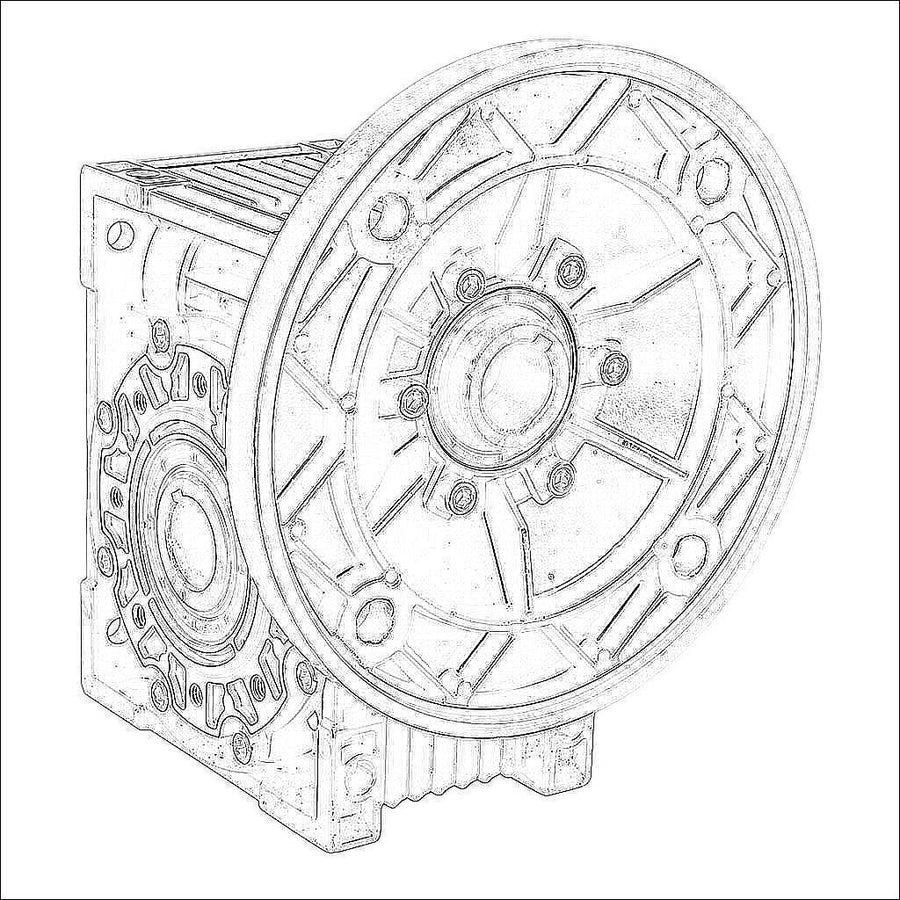

WGA-75M-010-H3
IronHorse medium-duty worm gearbox, 10:1 ratio, NEMA 182/4TC input, hollow, 1.25in diameter output shaft, nominal 5.2hp at 1.0 SF, 1656 lb-in mechanical output torque, 75mm center distance, cast aluminum housing, top, bottom and back mount.
$625.80

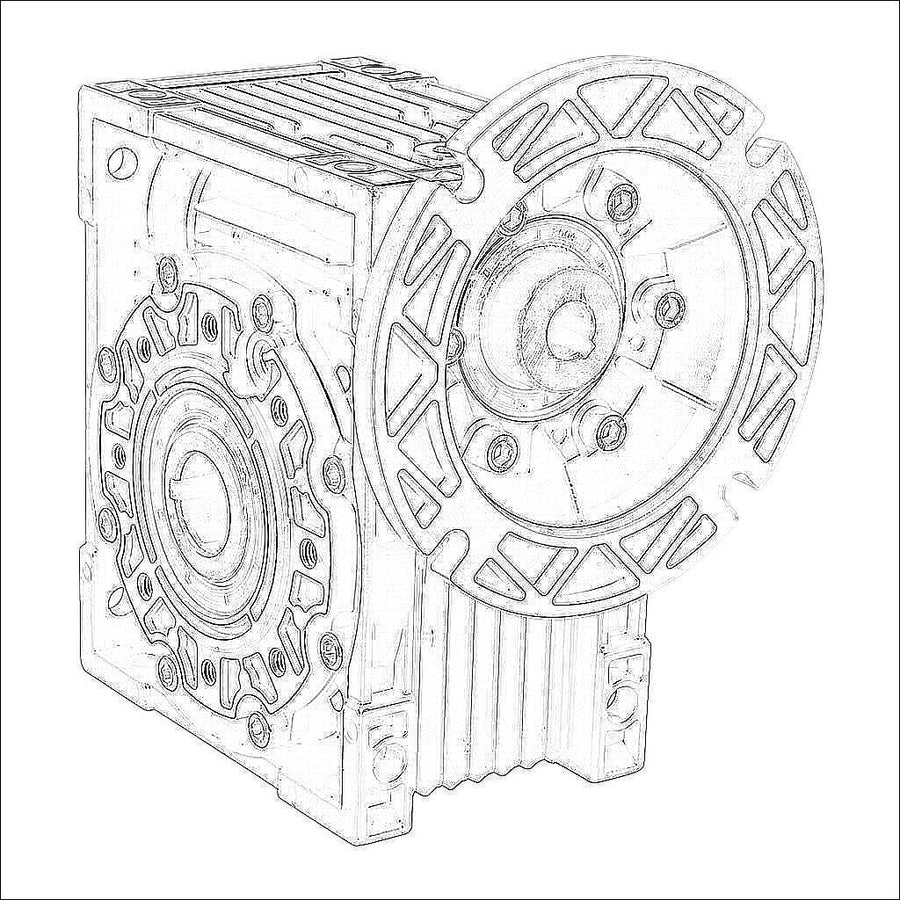

WGA-75M-020-H1
IronHorse medium-duty worm gearbox, 20:1 ratio, NEMA 56C input, hollow, 1.25in diameter output shaft, nominal 3.24hp at 1.0 SF, 1953 lb-in mechanical output torque, 75mm center distance, cast aluminum housing, top, bottom and back mount.
$625.80

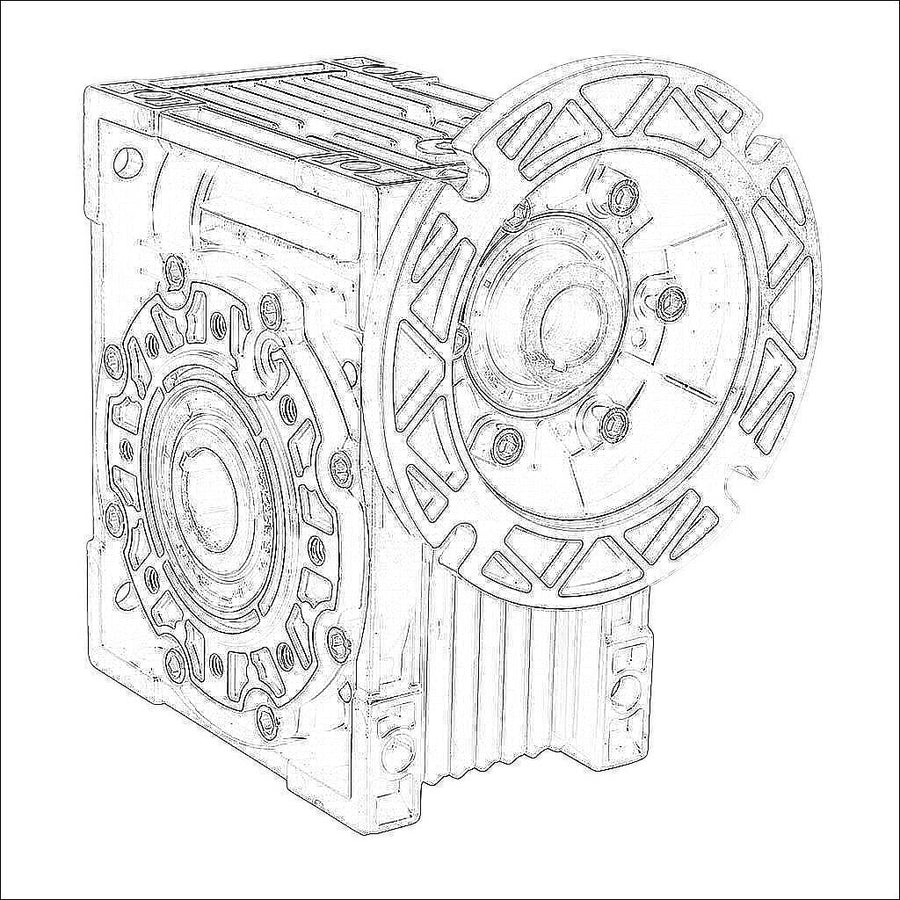

WGA-75M-020-H2
IronHorse medium-duty worm gearbox, 20:1 ratio, NEMA 145TC input, hollow, 1.25in diameter output shaft, nominal 3.24hp at 1.0 SF, 1953 lb-in mechanical output torque, 75mm center distance, cast aluminum housing, top, bottom and back mount.
$625.80

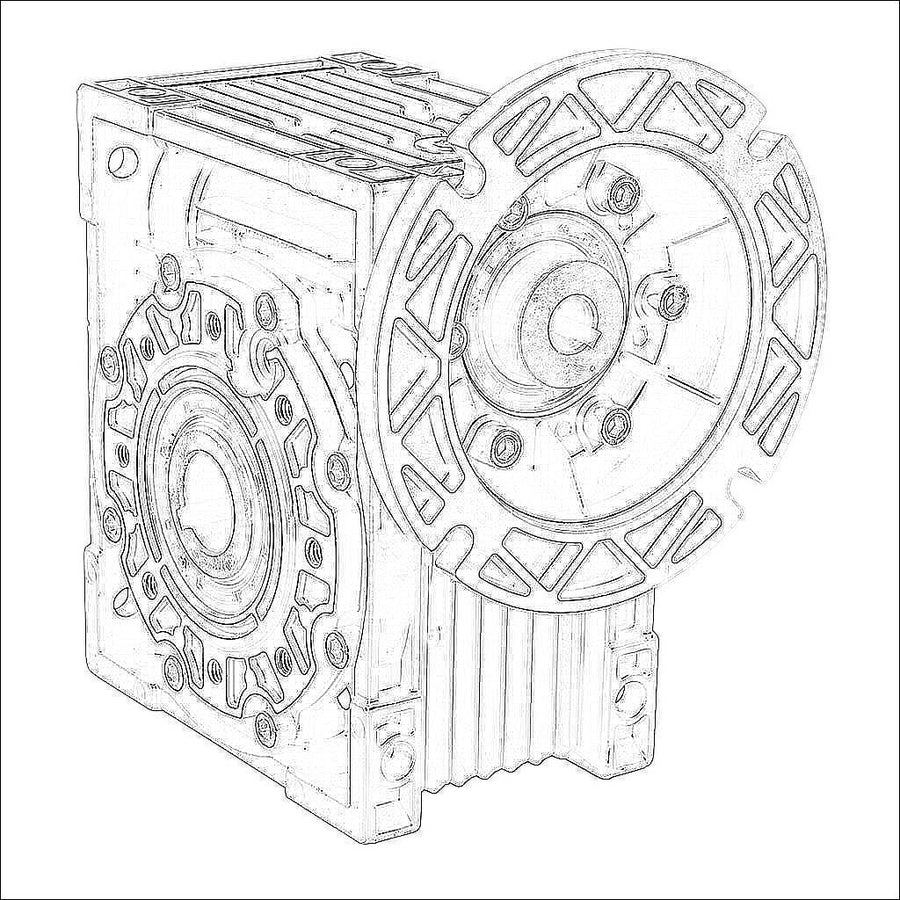

WGA-75M-030-H1
IronHorse medium-duty worm gearbox, 30:1 ratio, NEMA 56C input, hollow, 1.25in diameter output shaft, nominal 2.41hp at 1.0 SF, 2028 lb-in mechanical output torque, 75mm center distance, cast aluminum housing, top, bottom and back mount.
$625.80

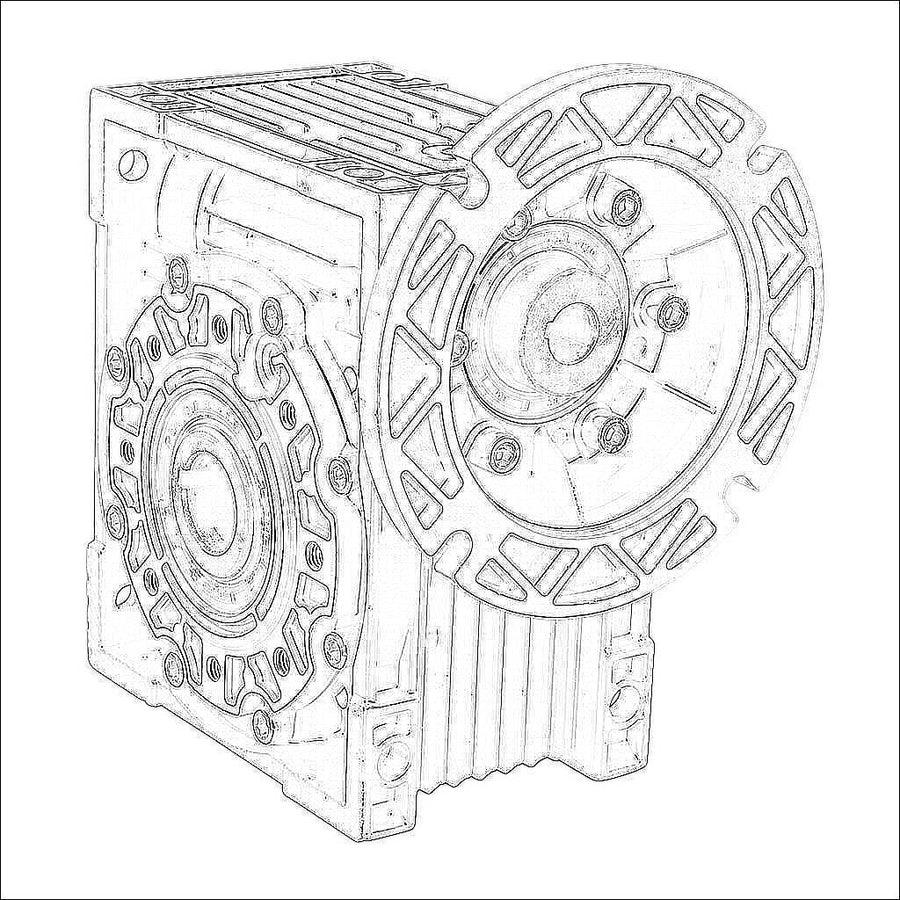

WGA-75M-040-H1
IronHorse medium-duty worm gearbox, 40:1 ratio, NEMA 56C input, hollow, 1.25in diameter output shaft, nominal 1.9hp at 1.0 SF, 2029 lb-in mechanical output torque, 75mm center distance, cast aluminum housing, top, bottom and back mount.
$625.80

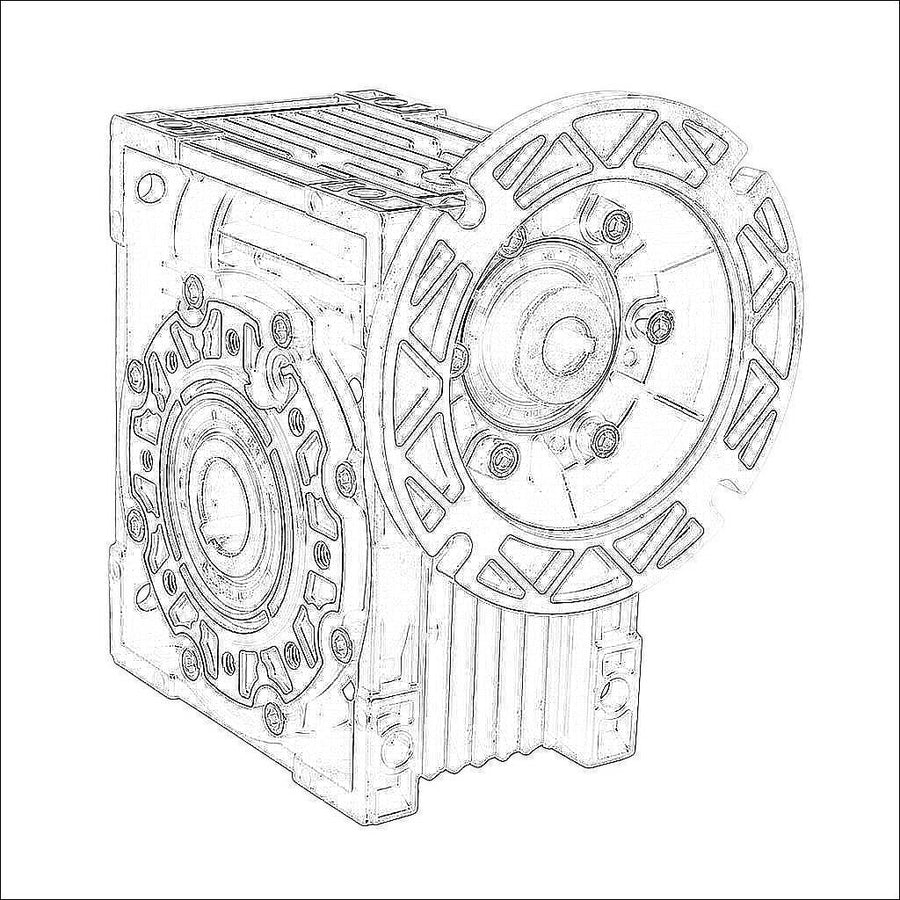

WGA-75M-060-H1
IronHorse medium-duty worm gearbox, 60:1 ratio, NEMA 56C input, hollow, 1.25in diameter output shaft, nominal 1.22hp at 1.0 SF, 1778 lb-in mechanical output torque, 75mm center distance, cast aluminum housing, top, bottom and back mount.
$625.80

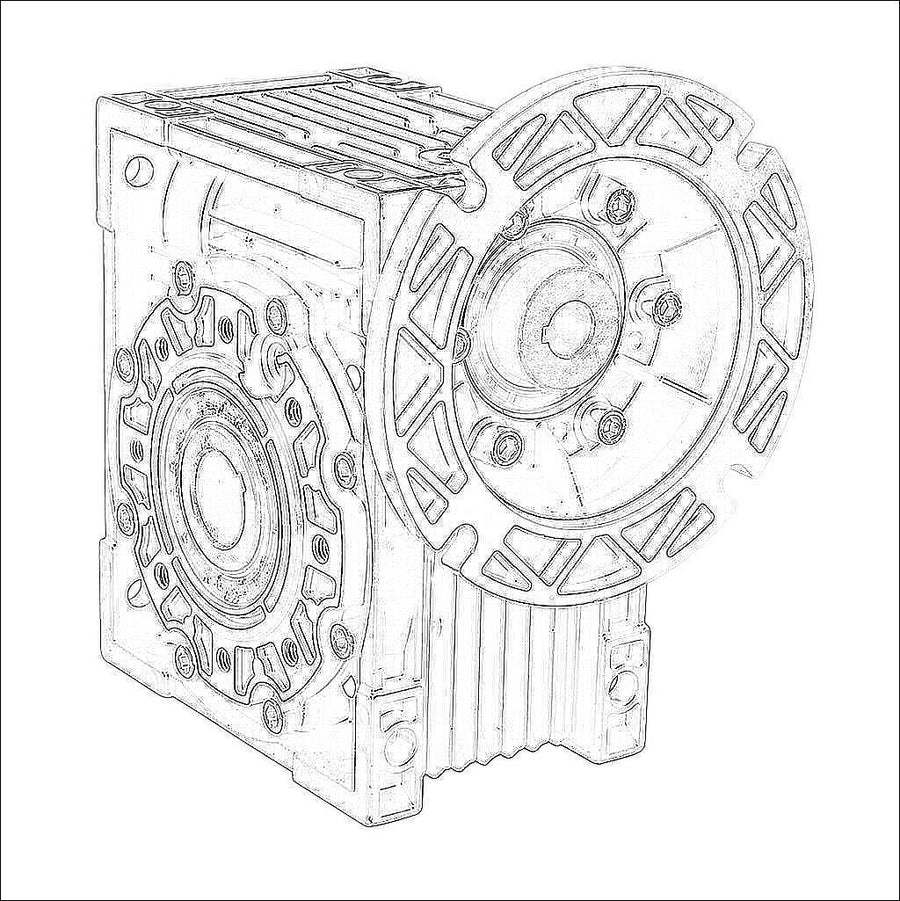

WGA-75M-080-H1
IronHorse medium-duty worm gearbox, 80:1 ratio, NEMA 56C input, hollow, 1.25in diameter output shaft, nominal 0.91hp at 1.0 SF, 1632 lb-in mechanical output torque, 75mm center distance, cast aluminum housing, top, bottom and back mount.
$625.80
WGA-75M-100-H1
IronHorse medium-duty worm gearbox, 100:1 ratio, NEMA 56C input, hollow, 1.25in diameter output shaft, nominal 0.74hp at 1.0 SF, 1517 lb-in mechanical output torque, 75mm center distance, cast aluminum housing, top, bottom and back mount.
$625.80
