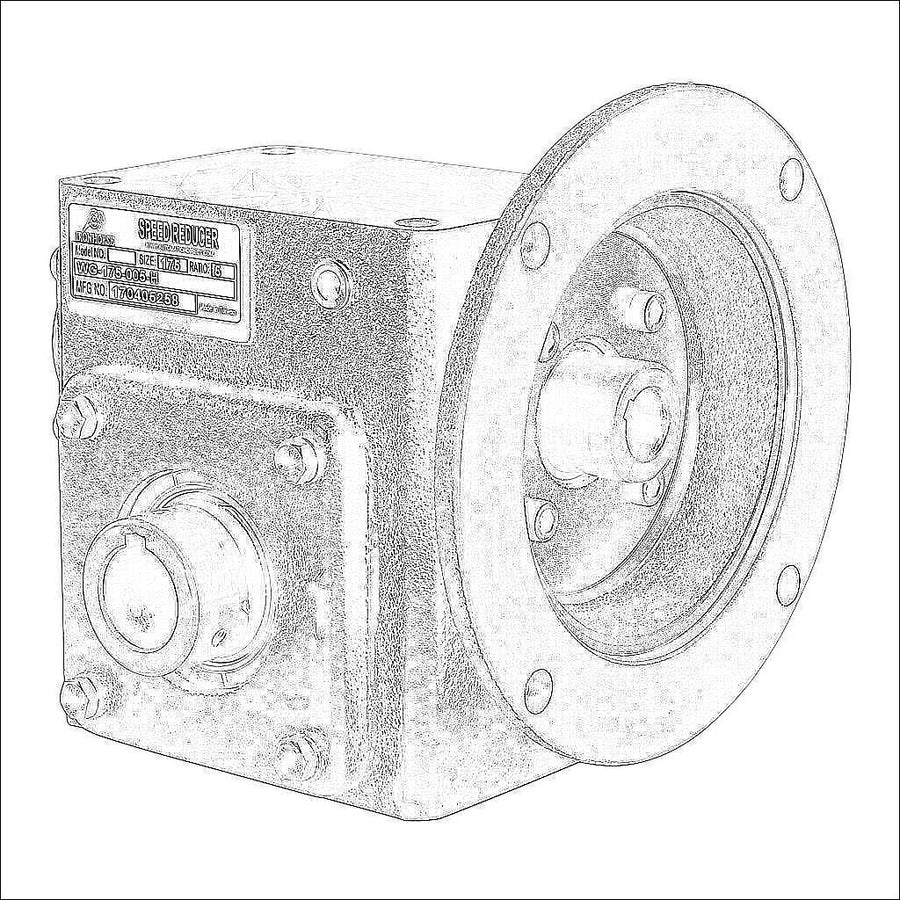

WG-175-005-H
IronHorse heavy-duty worm gearbox, 5:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 2.83hp at 1.0 SF, 499 lb-in mechanical output torque, 1-3/4in center distance, cast iron housing, tapped-base mount.
$401.80

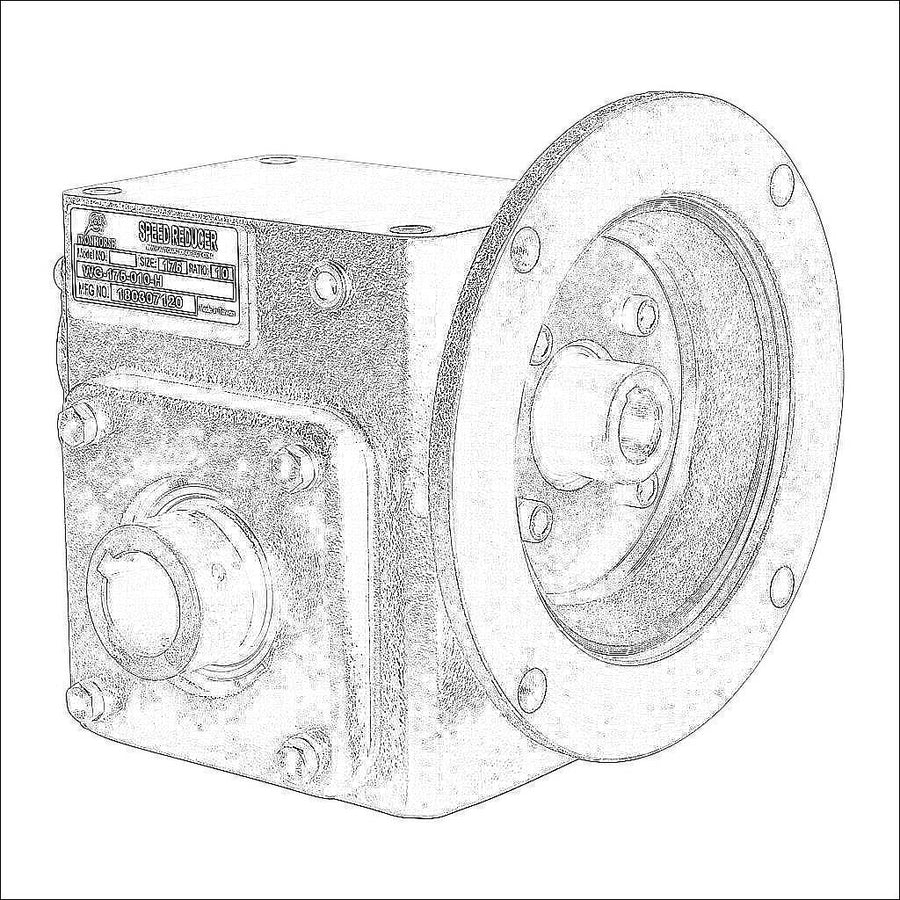

WG-175-010-H
IronHorse heavy-duty worm gearbox, 10:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 1.57hp at 1.0 SF, 515 lb-in mechanical output torque, 1-3/4in center distance, cast iron housing, tapped-base mount.
$401.80

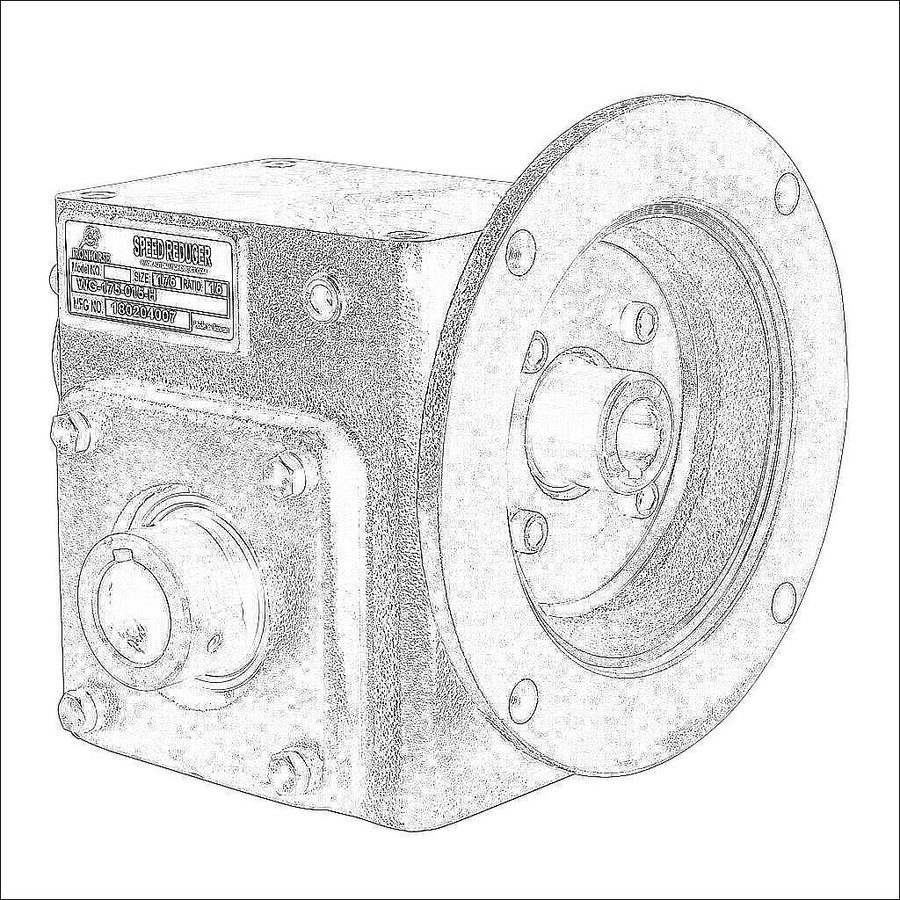

WG-175-015-H
IronHorse heavy-duty worm gearbox, 15:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 1.24hp at 1.0 SF, 554 lb-in mechanical output torque, 1-3/4in center distance, cast iron housing, tapped-base mount.
$401.80

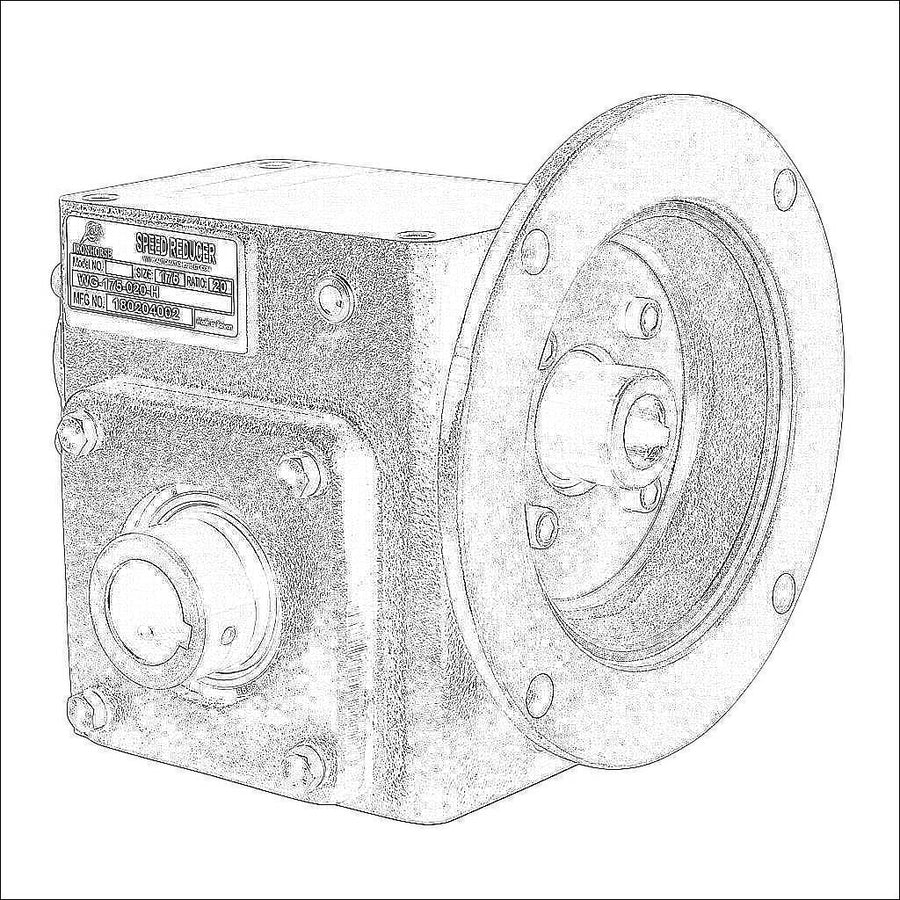

WG-175-020-H
IronHorse heavy-duty worm gearbox, 20:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 1.02hp at 1.0 SF, 596 lb-in mechanical output torque, 1-3/4in center distance, cast iron housing, tapped-base mount.
$401.80

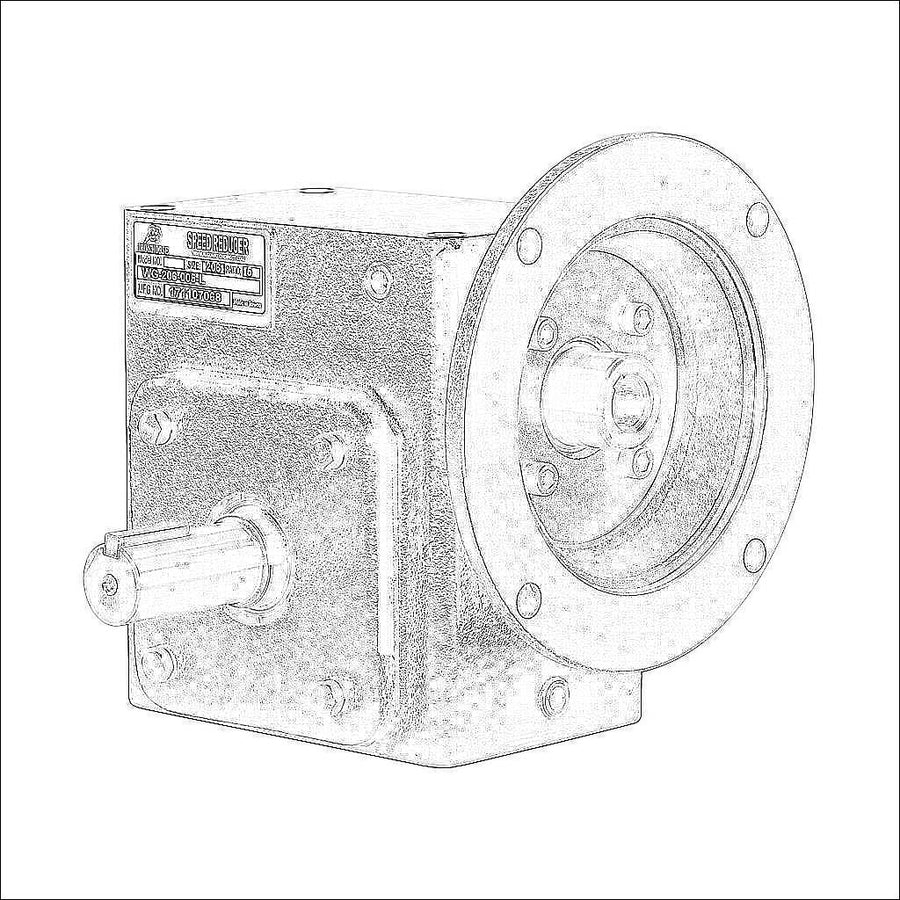

WG-206-005-L
IronHorse heavy-duty worm gearbox, 5:1 ratio, NEMA 56C input, left hand, 1in diameter output shaft, nominal 3.62hp at 1.0 SF, 685 lb-in mechanical output torque, 2-1/16in center distance, cast iron housing, tapped-base mount.
$411.60

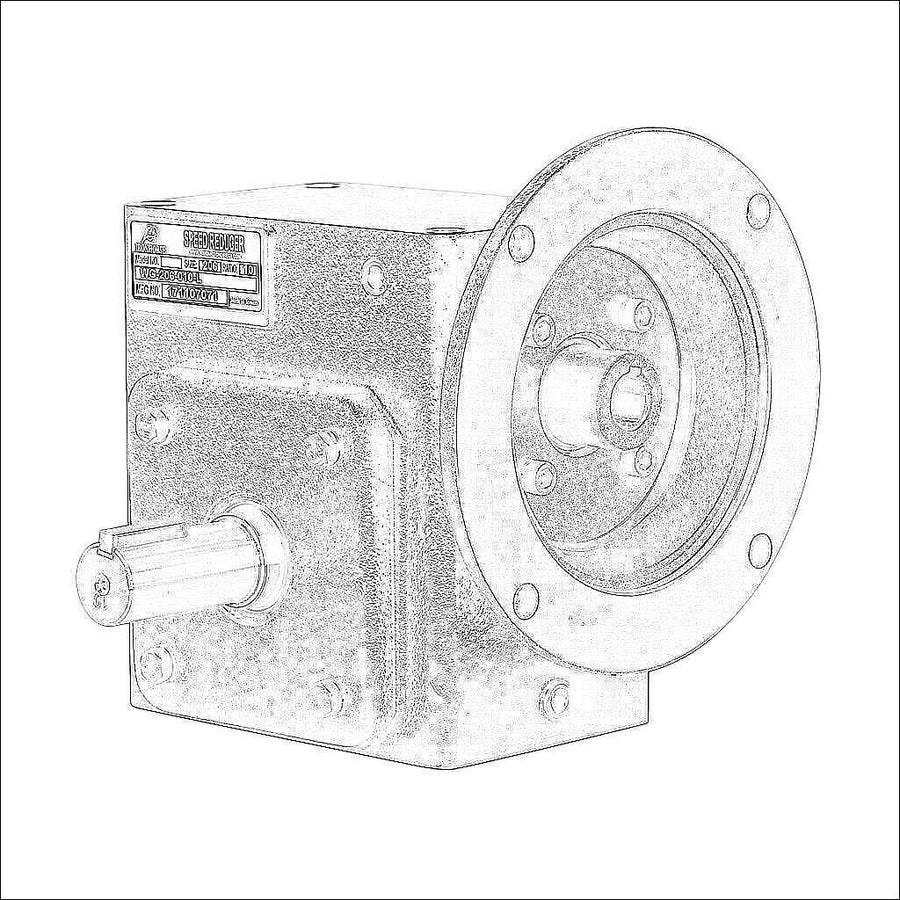

WG-206-010-L
IronHorse heavy-duty worm gearbox, 10:1 ratio, NEMA 56C input, left hand, 1in diameter output shaft, nominal 2.77hp at 1.0 SF, 935 lb-in mechanical output torque, 2-1/16in center distance, cast iron housing, tapped-base mount.
$411.60

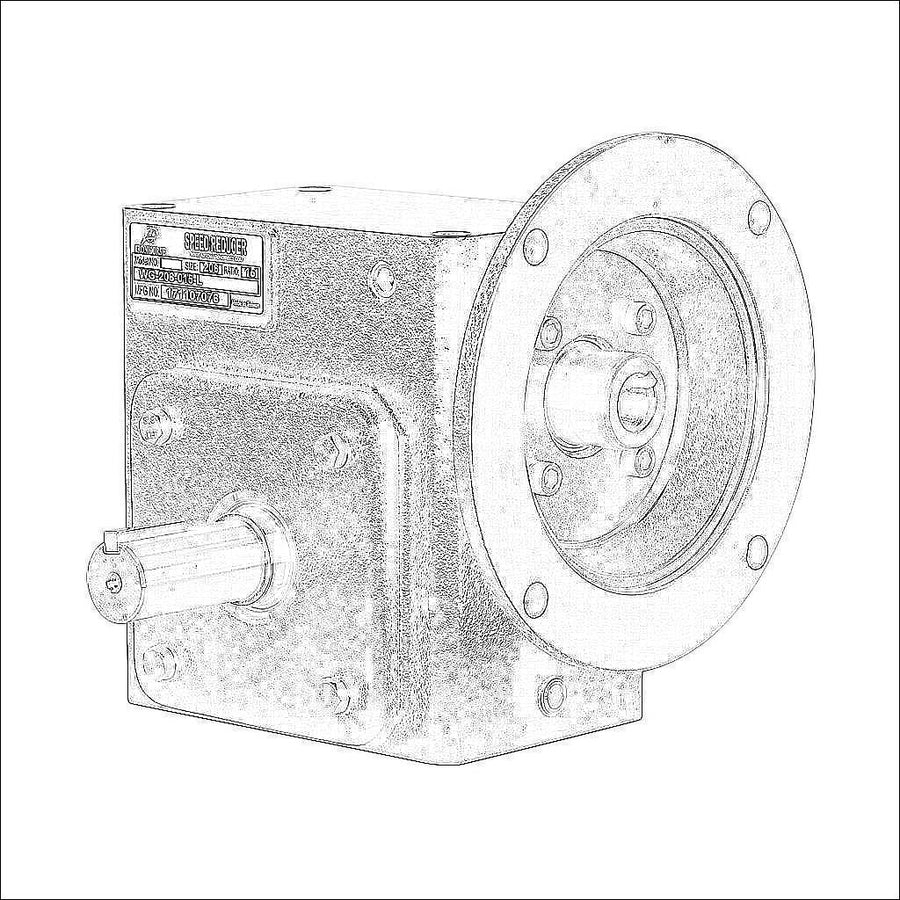

WG-206-015-L
IronHorse heavy-duty worm gearbox, 15:1 ratio, NEMA 56C input, left hand, 1in diameter output shaft, nominal 2.09hp at 1.0 SF, 1002 lb-in mechanical output torque, 2-1/16in center distance, cast iron housing, tapped-base mount.
$411.60

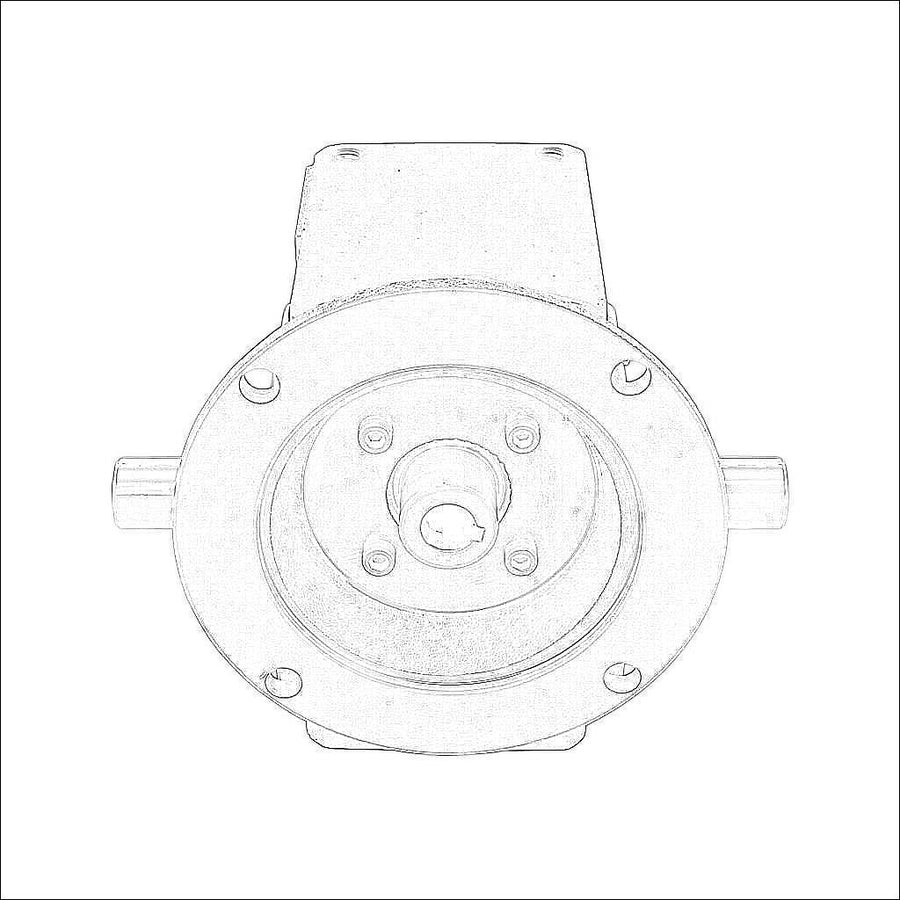

WG-206-005-D
IronHorse heavy-duty worm gearbox, 5:1 ratio, NEMA 56C input, dual, 1in diameter output shaft, nominal 3.62hp at 1.0 SF, 685 lb-in mechanical output torque, 2-1/16in center distance, cast iron housing, tapped-base mount.
$414.40

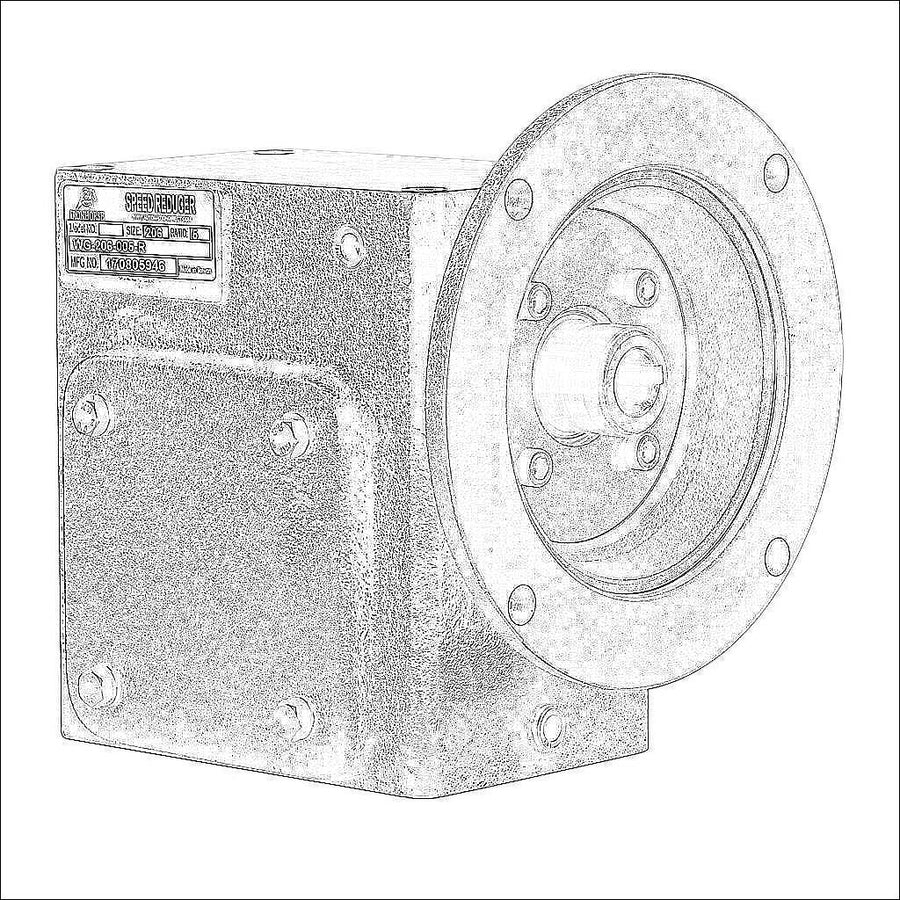

WG-206-005-R
IronHorse heavy-duty worm gearbox, 5:1 ratio, NEMA 56C input, right hand, 1in diameter output shaft, nominal 3.62hp at 1.0 SF, 685 lb-in mechanical output torque, 2-1/16in center distance, cast iron housing, tapped-base mount.
$414.40
WG-206-010-D
IronHorse heavy-duty worm gearbox, 10:1 ratio, NEMA 56C input, dual, 1in diameter output shaft, nominal 2.77hp at 1.0 SF, 935 lb-in mechanical output torque, 2-1/16in center distance, cast iron housing, tapped-base mount.
$414.40

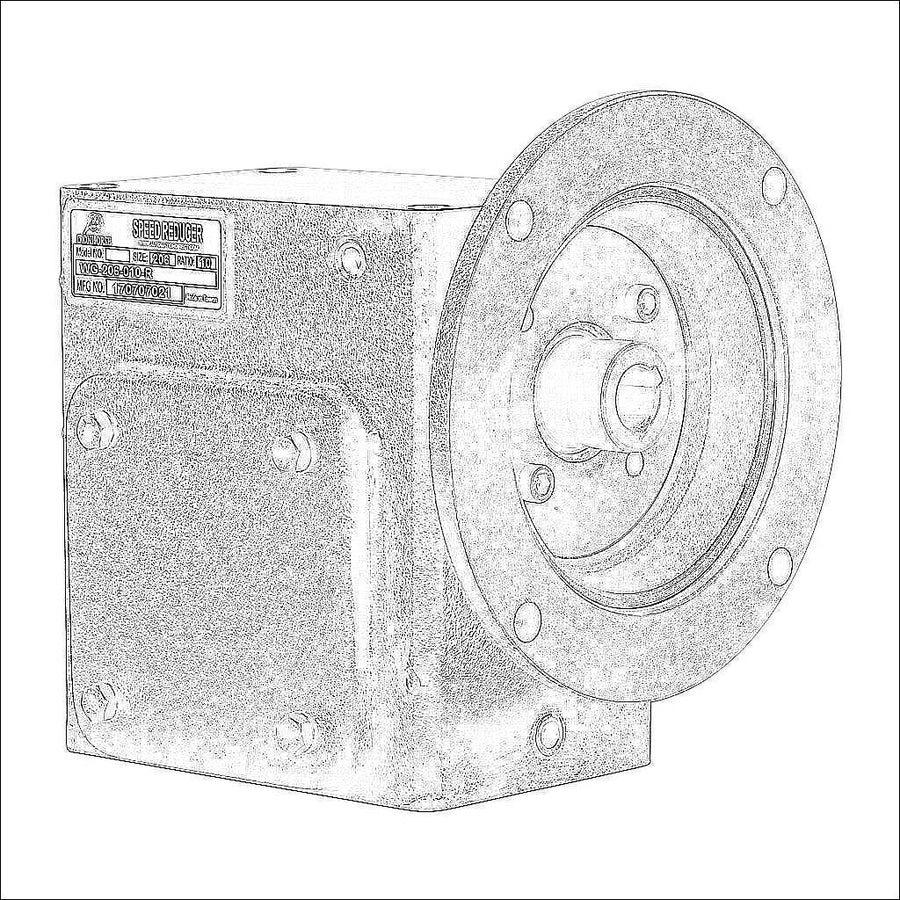

WG-206-010-R
IronHorse heavy-duty worm gearbox, 10:1 ratio, NEMA 56C input, right hand, 1in diameter output shaft, nominal 2.77hp at 1.0 SF, 935 lb-in mechanical output torque, 2-1/16in center distance, cast iron housing, tapped-base mount.
$414.40
WG-206-015-D
IronHorse heavy-duty worm gearbox, 15:1 ratio, NEMA 56C input, dual, 1in diameter output shaft, nominal 2.09hp at 1.0 SF, 1002 lb-in mechanical output torque, 2-1/16in center distance, cast iron housing, tapped-base mount.
$414.40

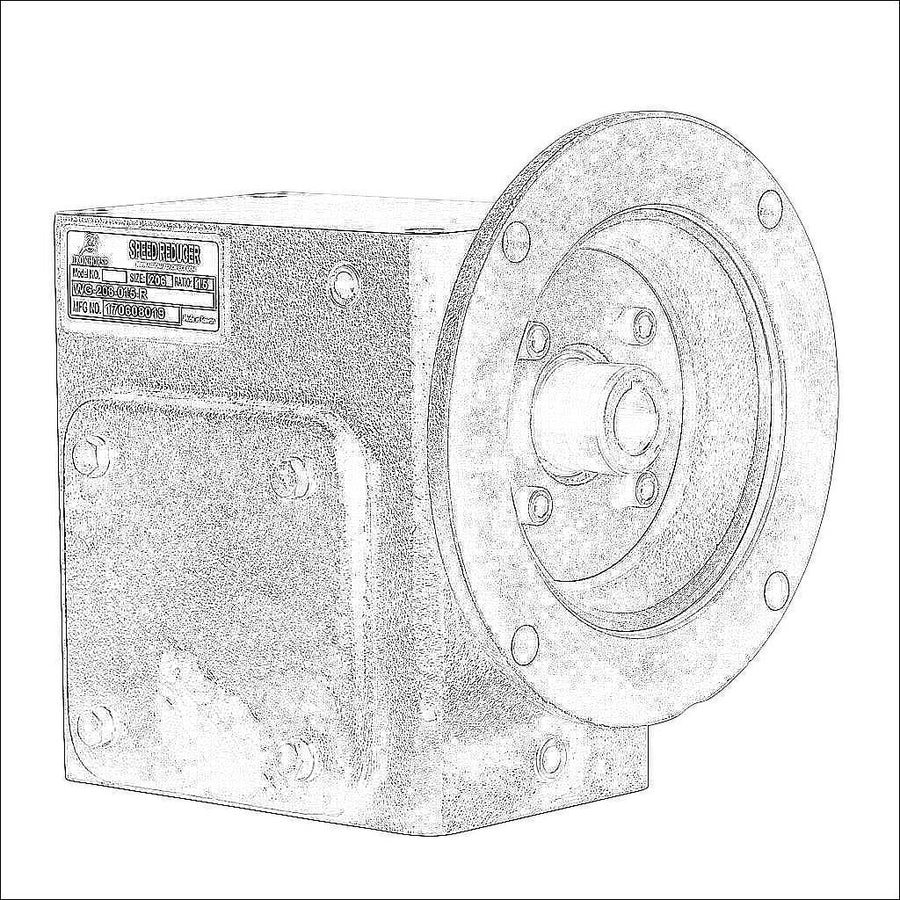

WG-206-015-R
IronHorse heavy-duty worm gearbox, 15:1 ratio, NEMA 56C input, right hand, 1in diameter output shaft, nominal 2.09hp at 1.0 SF, 1002 lb-in mechanical output torque, 2-1/16in center distance, cast iron housing, tapped-base mount.
$414.40

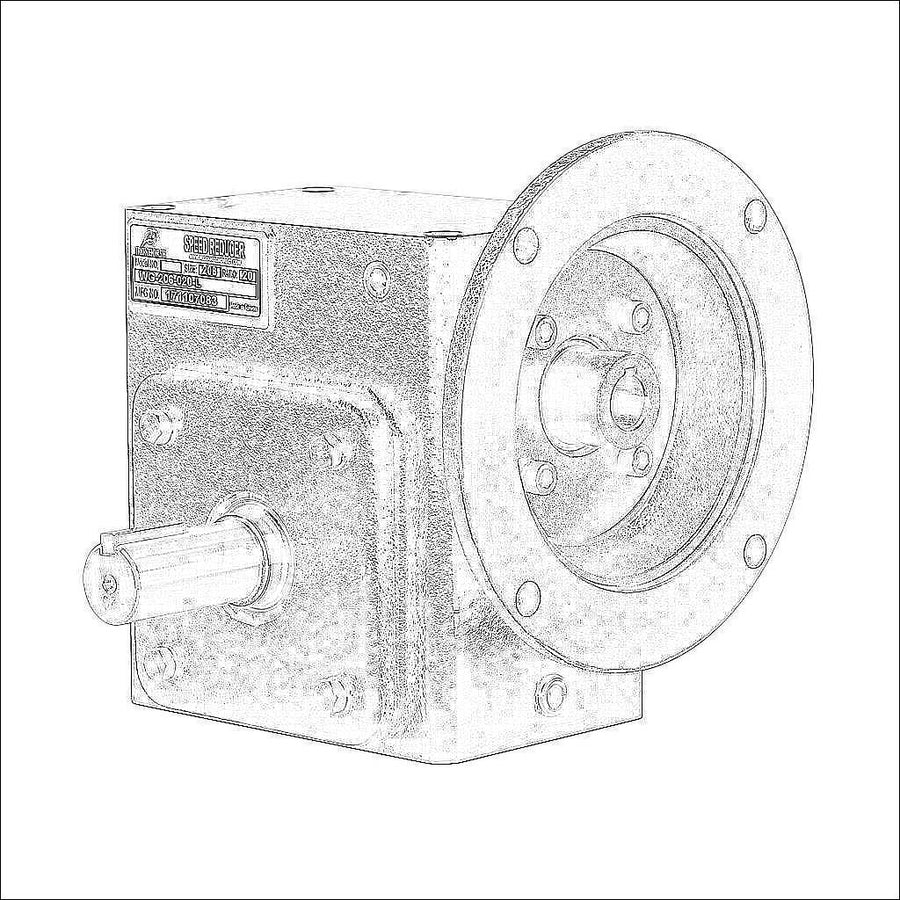

WG-206-020-L
IronHorse heavy-duty worm gearbox, 20:1 ratio, NEMA 56C input, left hand, 1in diameter output shaft, nominal 1.57hp at 1.0 SF, 914 lb-in mechanical output torque, 2-1/16in center distance, cast iron housing, tapped-base mount.
$414.40

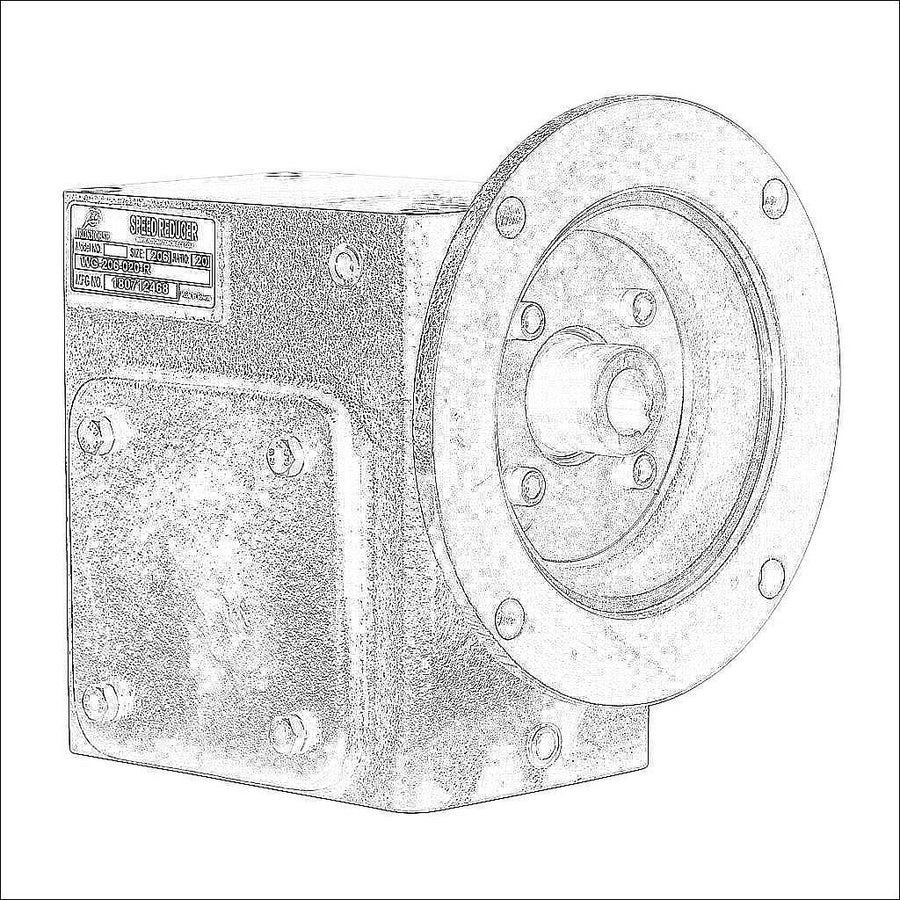

WG-206-020-R
IronHorse heavy-duty worm gearbox, 20:1 ratio, NEMA 56C input, right hand, 1in diameter output shaft, nominal 1.57hp at 1.0 SF, 914 lb-in mechanical output torque, 2-1/16in center distance, cast iron housing, tapped-base mount.
$414.40

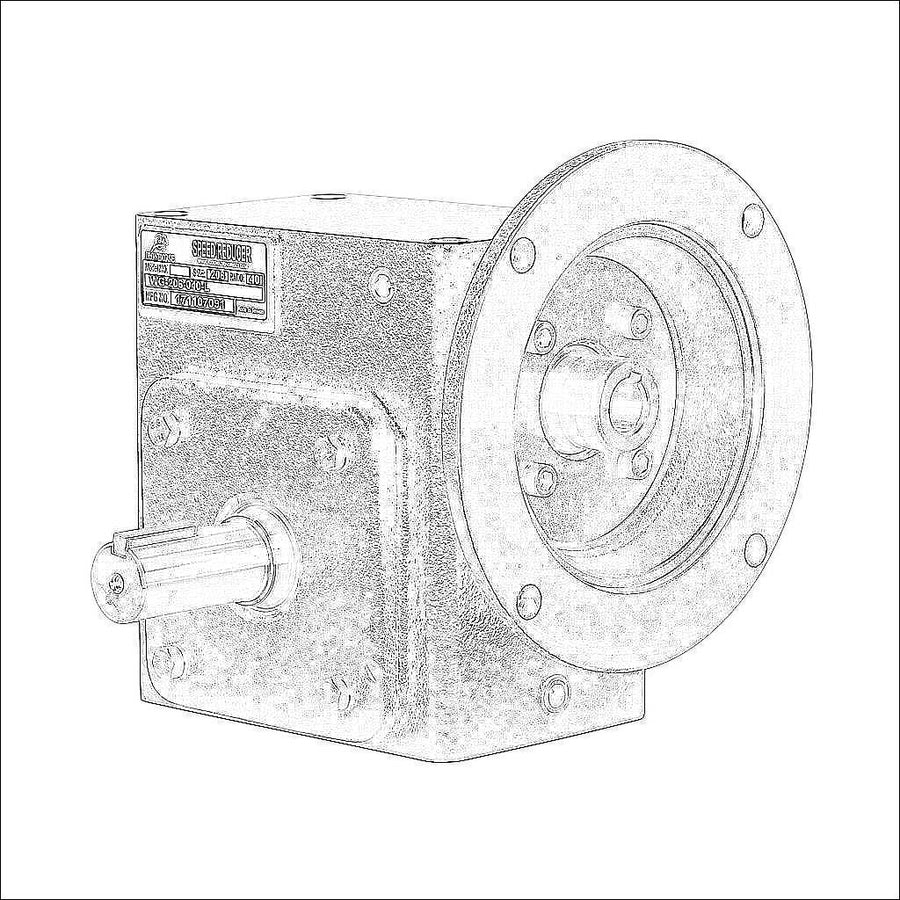

WG-206-040-L
IronHorse heavy-duty worm gearbox, 40:1 ratio, NEMA 56C input, left hand, 1in diameter output shaft, nominal 1.09hp at 1.0 SF, 1120 lb-in mechanical output torque, 2-1/16in center distance, cast iron housing, tapped-base mount.
$414.40

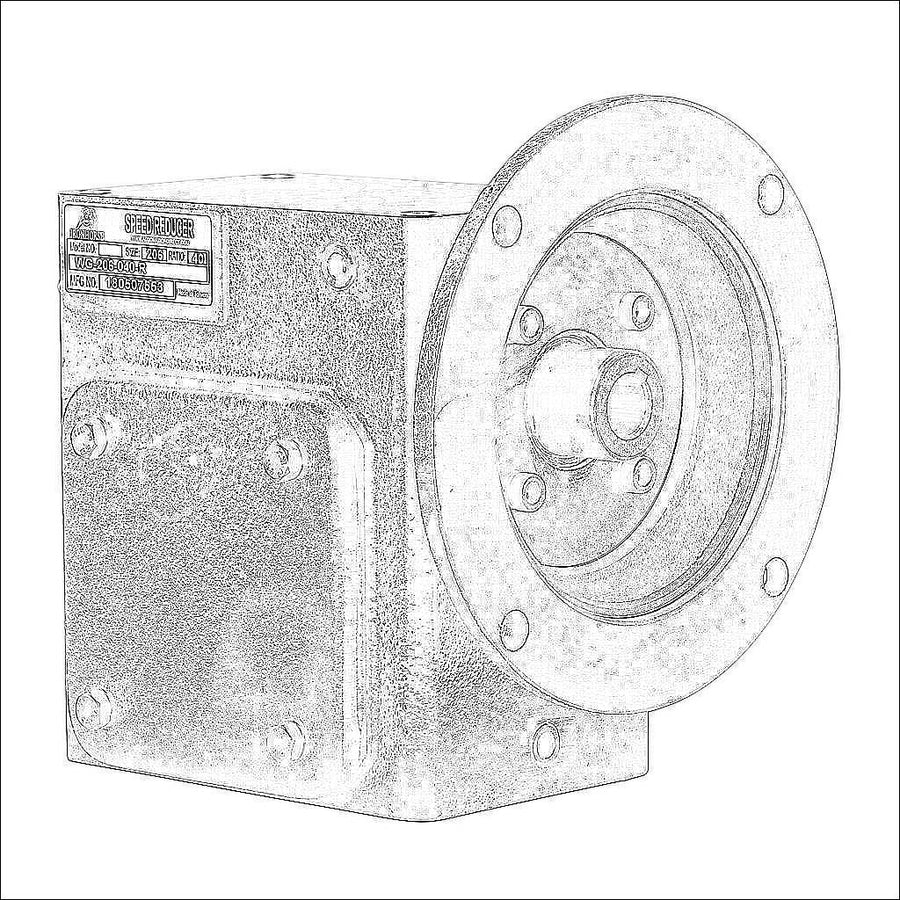

WG-206-040-R
IronHorse heavy-duty worm gearbox, 40:1 ratio, NEMA 56C input, right hand, 1in diameter output shaft, nominal 1.09hp at 1.0 SF, 1120 lb-in mechanical output torque, 2-1/16in center distance, cast iron housing, tapped-base mount.
$414.40

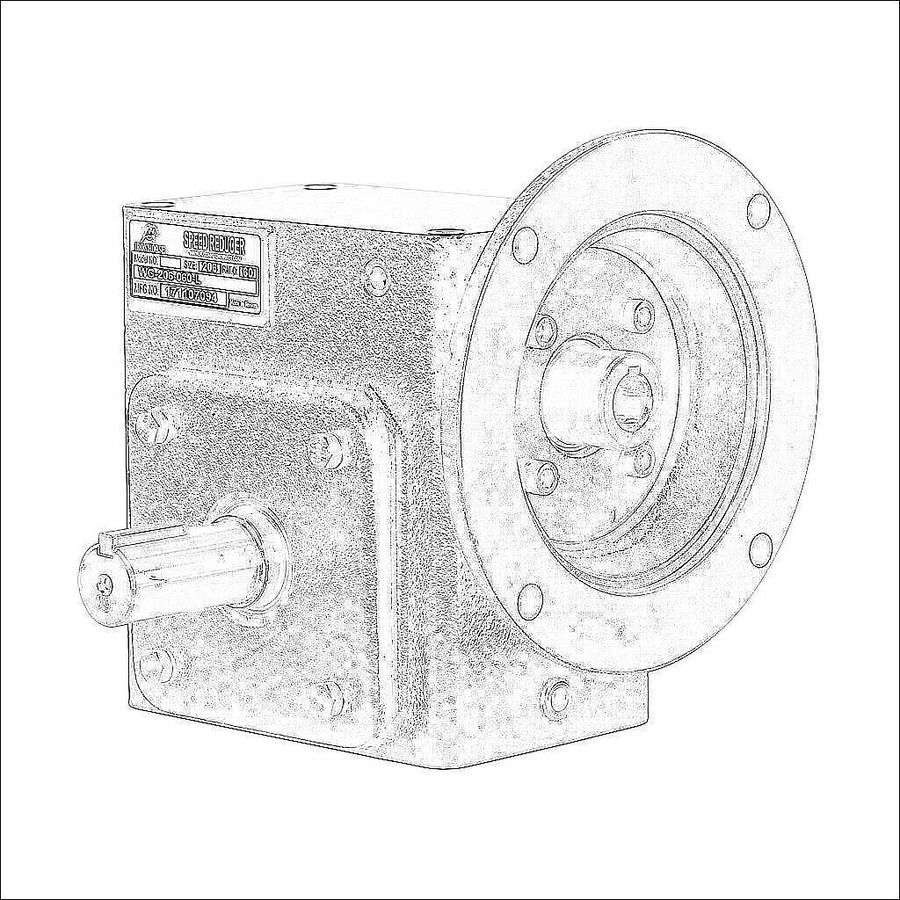

WG-206-060-L
IronHorse heavy-duty worm gearbox, 60:1 ratio, NEMA 56C input, left hand, 1in diameter output shaft, nominal 0.6hp at 1.0 SF, 750 lb-in mechanical output torque, 2-1/16in center distance, cast iron housing, tapped-base mount.
$414.40

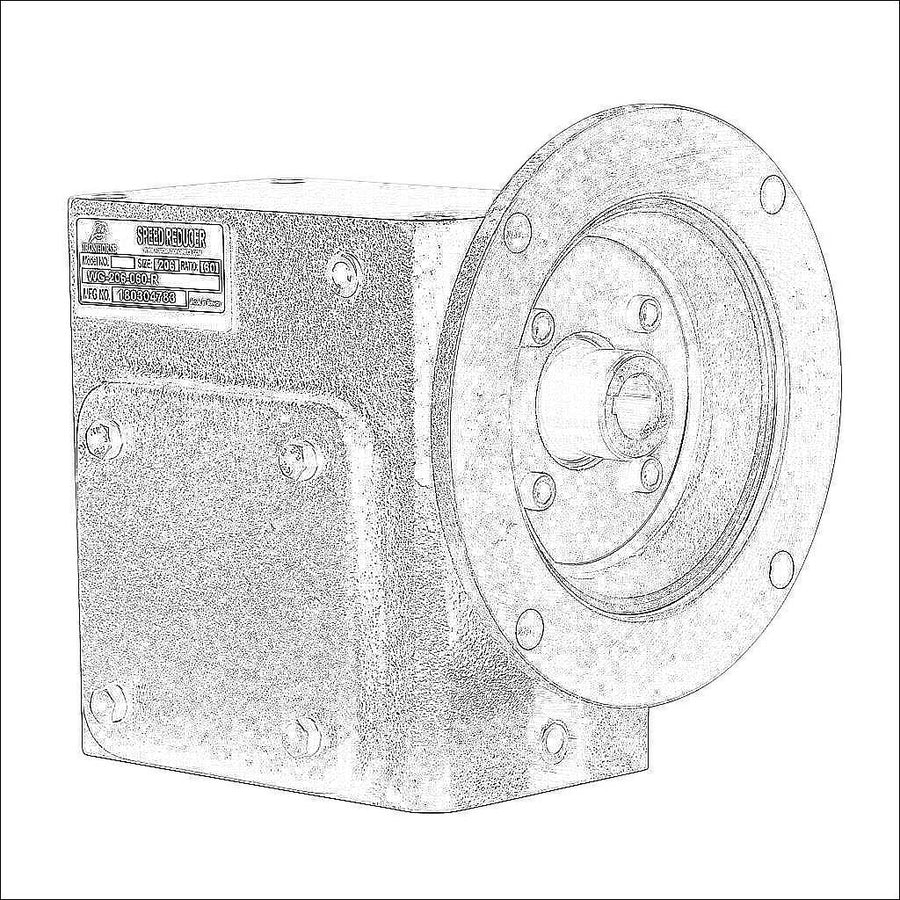

WG-206-060-R
IronHorse heavy-duty worm gearbox, 60:1 ratio, NEMA 56C input, right hand, 1in diameter output shaft, nominal 0.6hp at 1.0 SF, 750 lb-in mechanical output torque, 2-1/16in center distance, cast iron housing, tapped-base mount.
$414.40

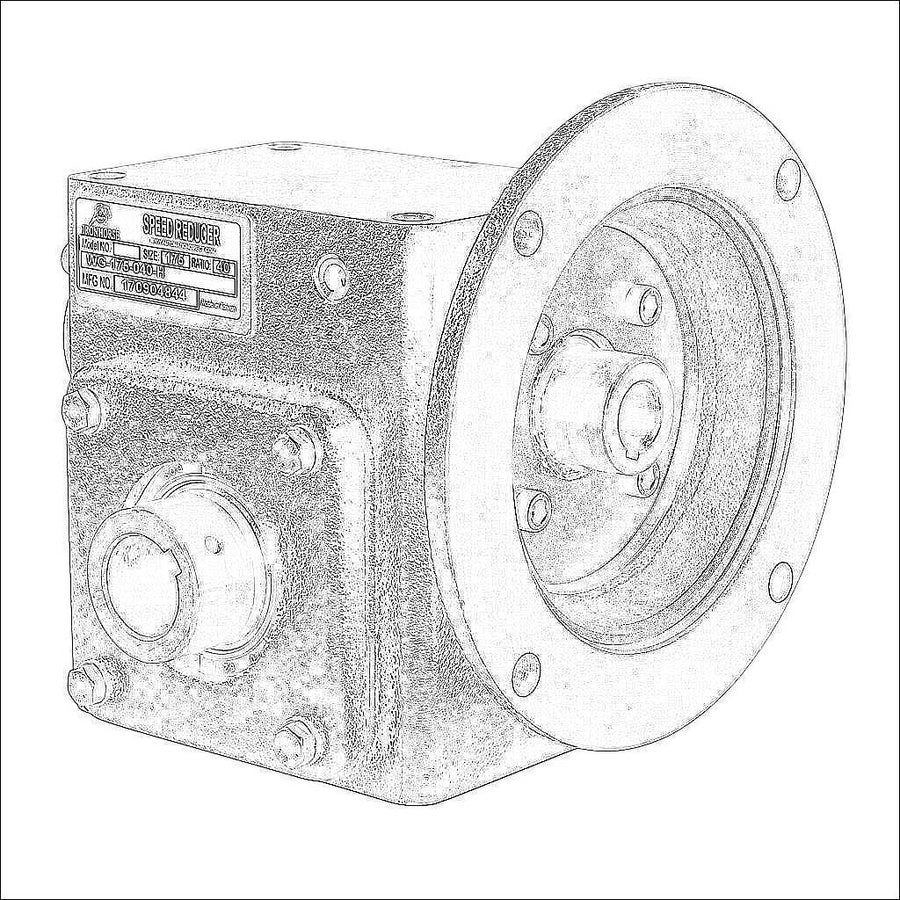

WG-175-040-H
IronHorse heavy-duty worm gearbox, 40:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 0.74hp at 1.0 SF, 714 lb-in mechanical output torque, 1-3/4in center distance, cast iron housing, tapped-base mount.
$427

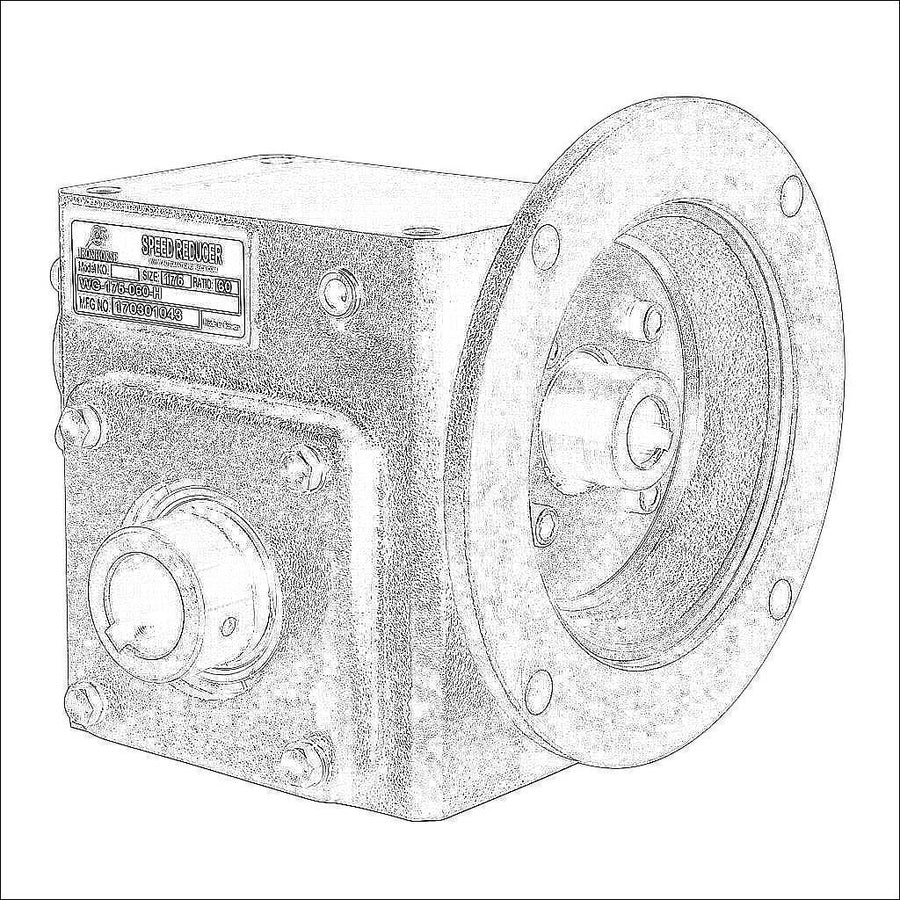

WG-175-060-H
IronHorse heavy-duty worm gearbox, 60:1 ratio, NEMA 56C input, hollow, 1in diameter output shaft, nominal 0.38hp at 1.0 SF, 469 lb-in mechanical output torque, 1-3/4in center distance, cast iron housing, tapped-base mount.
$427

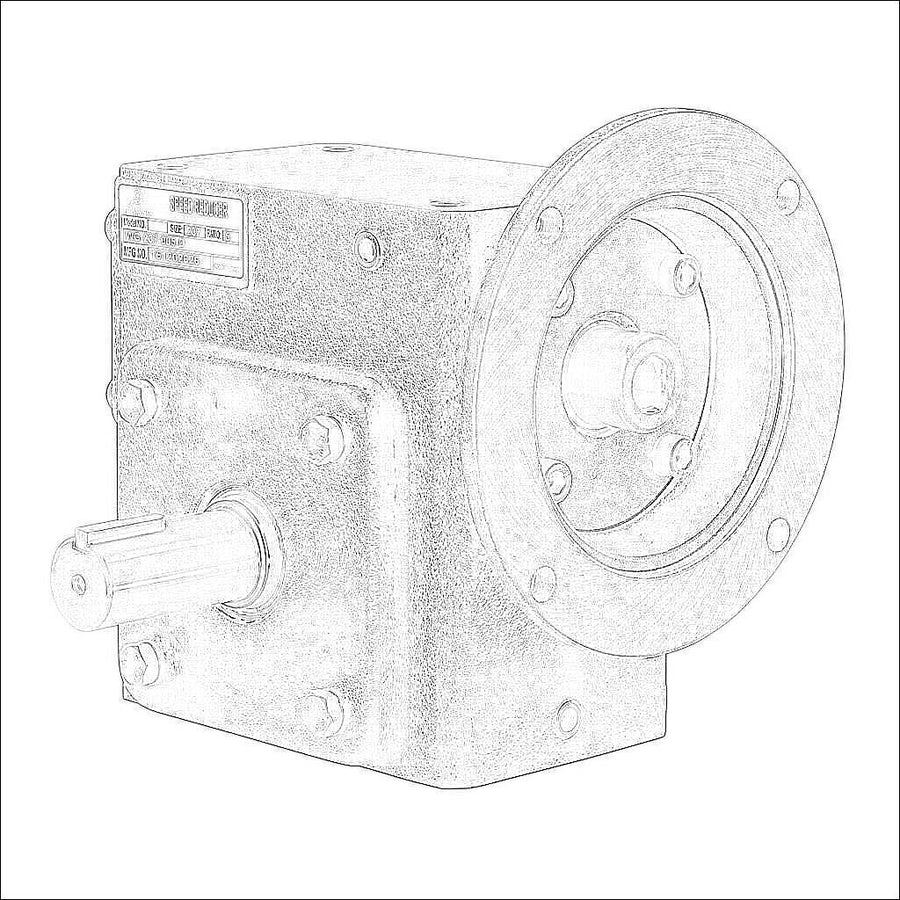

WG-237-005-D
IronHorse heavy-duty worm gearbox, 5:1 ratio, NEMA 56C input, dual, 1.125in diameter output shaft, nominal 4.57hp at 1.0 SF, 798 lb-in mechanical output torque, 2-3/8in center distance, cast iron housing, tapped-base mount.
$471.80

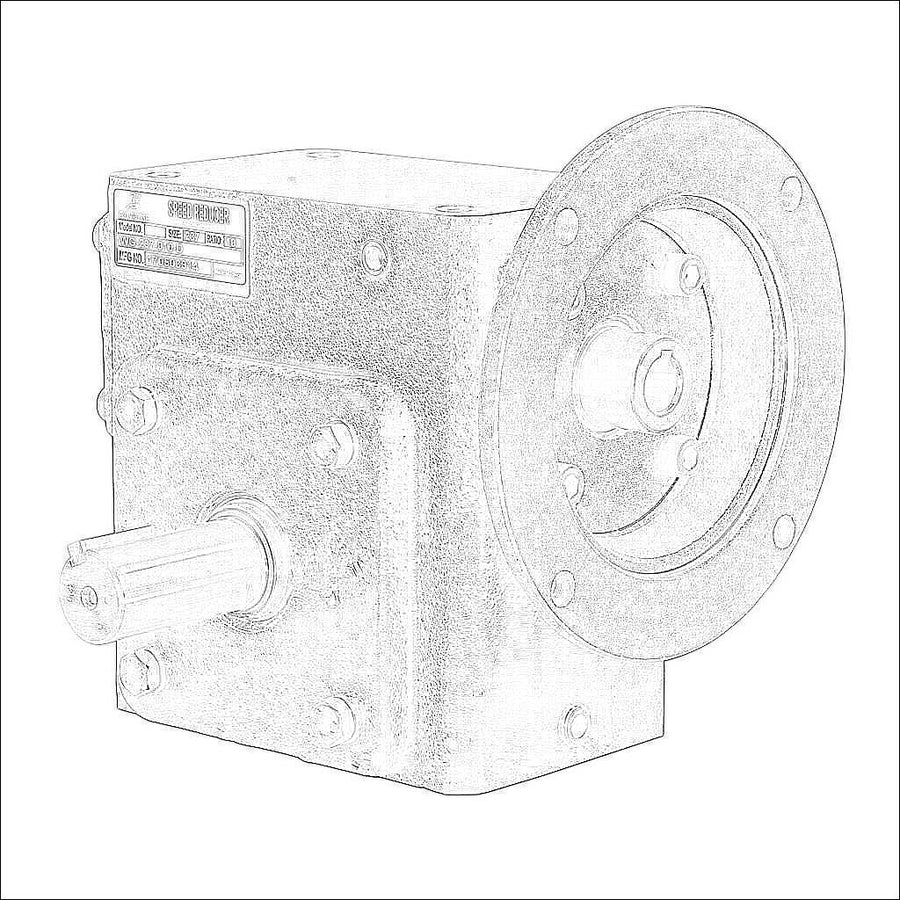

WG-237-010-D
IronHorse heavy-duty worm gearbox, 10:1 ratio, NEMA 56C input, dual, 1.125in diameter output shaft, nominal 3.47hp at 1.0 SF, 1158 lb-in mechanical output torque, 2-3/8in center distance, cast iron housing, tapped-base mount.
$471.80

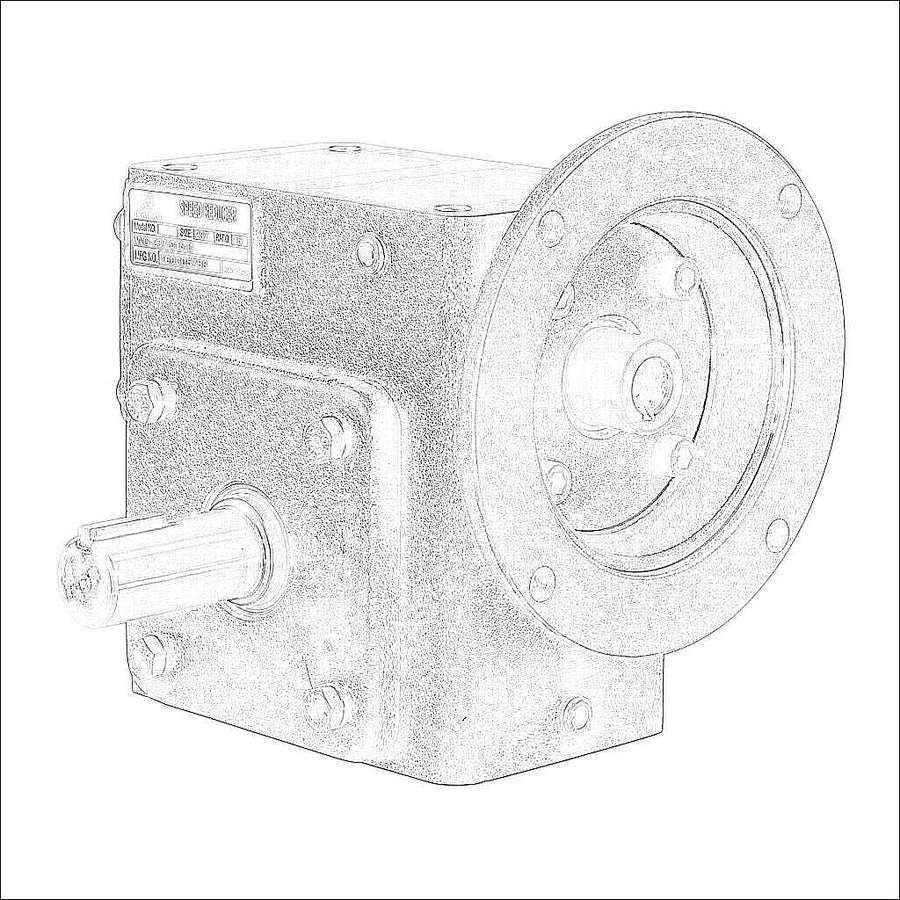

WG-237-015-D
IronHorse heavy-duty worm gearbox, 15:1 ratio, NEMA 56C input, dual, 1.125in diameter output shaft, nominal 2.64hp at 1.0 SF, 1249 lb-in mechanical output torque, 2-3/8in center distance, cast iron housing, tapped-base mount.
$471.80

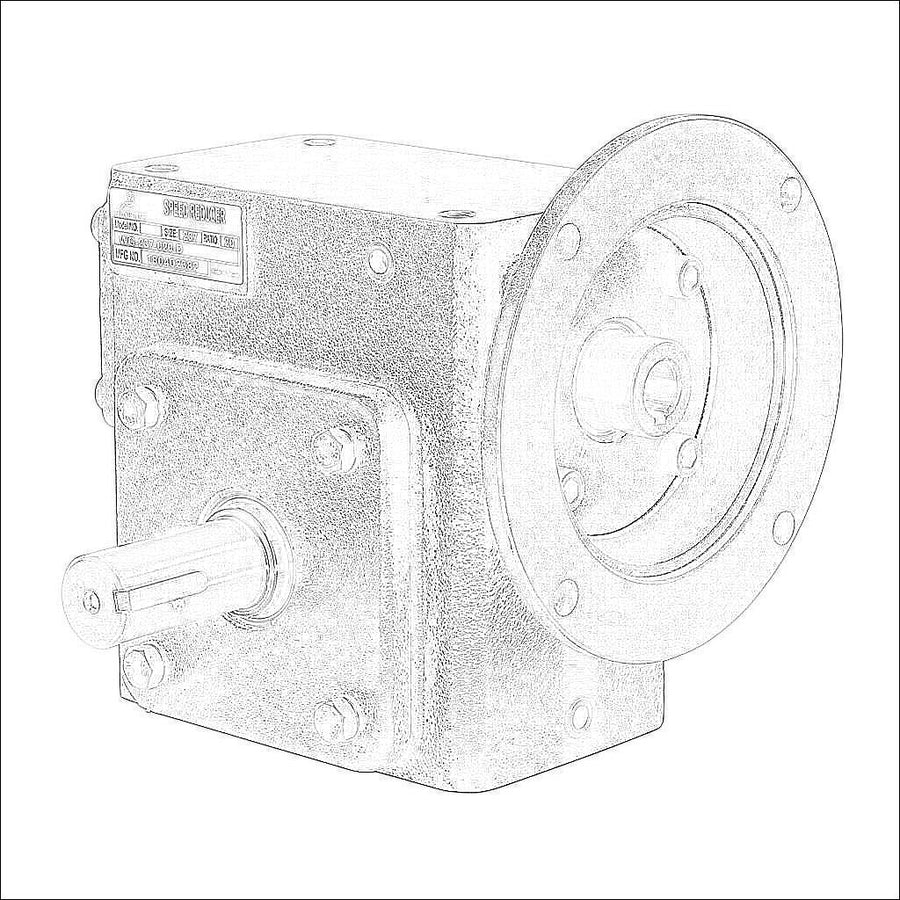

WG-237-020-D
IronHorse heavy-duty worm gearbox, 20:1 ratio, NEMA 56C input, dual, 1.125in diameter output shaft, nominal 2.06hp at 1.0 SF, 1195 lb-in mechanical output torque, 2-3/8in center distance, cast iron housing, tapped-base mount.
$471.80
