Protos X I/O

—
PX-901
PX-901
Protos X bus end terminal, for use with Protos X I/O systems. Installs at the right end of the terminal assembly. Required for proper communications between the I/O terminals and the bus coupler.
$27.50
PX-CFGSW
PX-CFGSW
Protos X Windows configuration software, USB or free download. Requires PX-USB-232 programming cable.
$28.13
PX-908
PX-908
Protos X power separation terminal, 24 VDC. For use with Protos X I/O systems. Interrupts the power flow of power bus to the left.
$34.38
PX-940
PX-940
Protos X power feed terminal, 24 VDC. For use with Protos X I/O systems. Introduces power into I/O terminals power bus or switches from one voltage source to another for power flow to the right.
$35.63
PX-970
PX-970
Protos X power feed terminal, 120-230 VAC. For use with Protos X I/O systems. Introduces power into I/O terminals power bus or switches from one voltage source to another for power flow to the right.
$46.88
PX-949
PX-949
Protos X power distribution terminal, 24 VDC. For use with Protos X I/O systems. Provides (8) 24 VDC and (8) 0 VDC connections.
$50.63
PX-144
PX-144
Protos X discrete input module, 4-point, 24 VDC, sinking, 2 common(s), 2 point(s) per common.
$66.25
PX-172-1
PX-172-1
Protos X discrete input module, 2-point, 120-230 VAC, 2 common(s), 1 point(s) per common.
$73.75
PX-172-2
PX-172-2
Protos X discrete input module, 2-point, 120 VAC/VDC, 2 common(s), 1 point(s) per common.
$73.75
PX-244-1
PX-244-1
Protos X discrete output module, 4-point, 24 VDC, sourcing, 2 common(s), 2 point(s) per common, 0.5A/point, short circuit and overload protection.
$97.50
PX-272-2
PX-272-2
Protos X relay output module, 2-point, 230 VAC/30 VDC, (2) Form A, 1 common(s), 2 point(s) per common, 5A/point.
$103.75
PX-148
PX-148
Protos X discrete input module, 8-point, 24 VDC, sinking.
$107.50
PX-902
PX-902
Protos X bus expansion end terminal, (1) Ethernet (RJ45) port(s). For use with Protos X I/O systems. Requires Ethernet (RJ45) cable. Used only with bus coupler, replaces PX-901 bus end terminal.
$107.50
PX-244-2
PX-244-2
Protos X discrete output module, 4-point, 24 VDC, sourcing, 4 common(s), 1 point(s) per common, 2A/point, short circuit and overload protection.
$121.25
PX-USB-232
PX-USB-232
Protos X programming cable, USB A to 4-pin custom Micro connector, 9.8ft/3m cable length. For use with Protos X bus couplers.
$123.75
PX-248
PX-248
Protos X discrete output module, 8-point, 24 VDC, sourcing, 0.5A/point, short circuit and overload protection.
$125
PX-272-1
PX-272-1
Protos X relay output module, 2-point, 230 VAC/VDC, solid state, 2 common(s), 1 point(s) per common, 0.3A/point.
$132.50
PX-903
PX-903
Protos X bus expansion coupler, (2) Ethernet (RJ45) port(s). For use with Protos X I/O systems. Requires Ethernet (RJ45) cable. Functions as bus coupler for expanded configuration.
$167.50
PX-249
PX-249
Protos X discrete output module, 16-point, 24 VDC, sinking, 0.5A/point, short circuit and overload protection.
$171.25

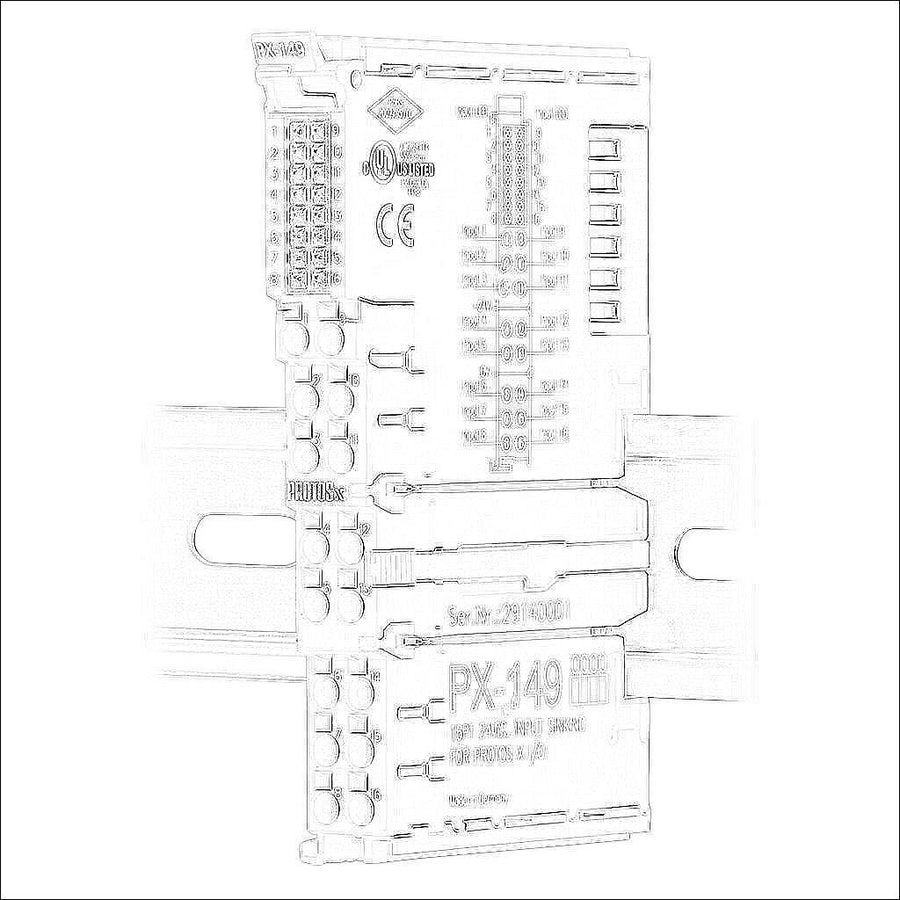

PX-149
PX-149
Protos X discrete input module, 16-point, 24 VDC, sinking.
$185

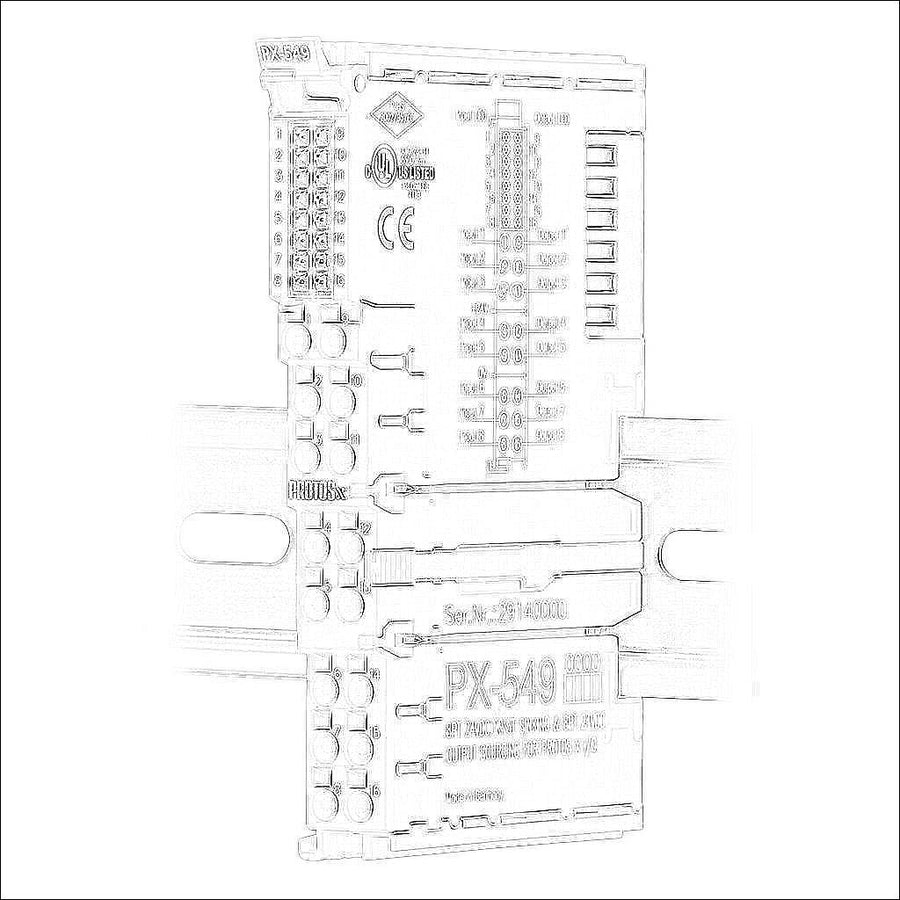

PX-549
PX-549
Protos X discrete combo module, Input: 8-point, 24 VDC, sinking, Output: 8-point, 24 VDC, sourcing, 0.5A/point.
$188.75

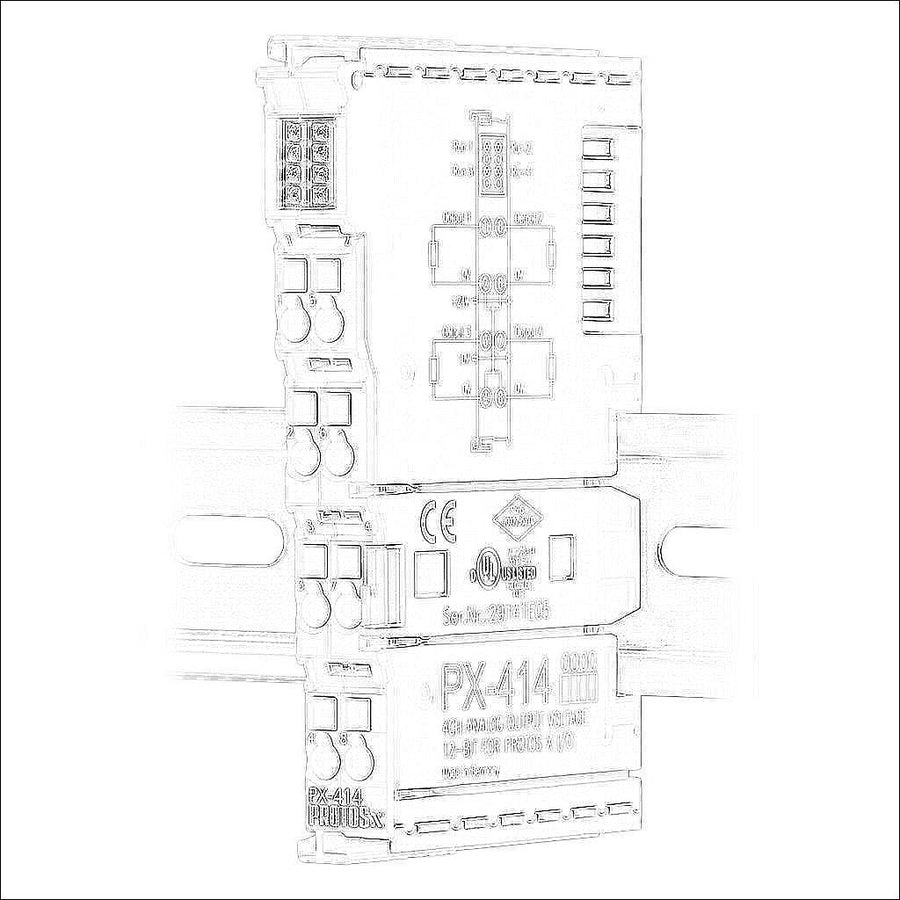

PX-414
PX-414
Protos X analog output terminal, 4-channel, voltage, 12-bit, output voltage signal range(s) of 0-10 VDC.
$363.75

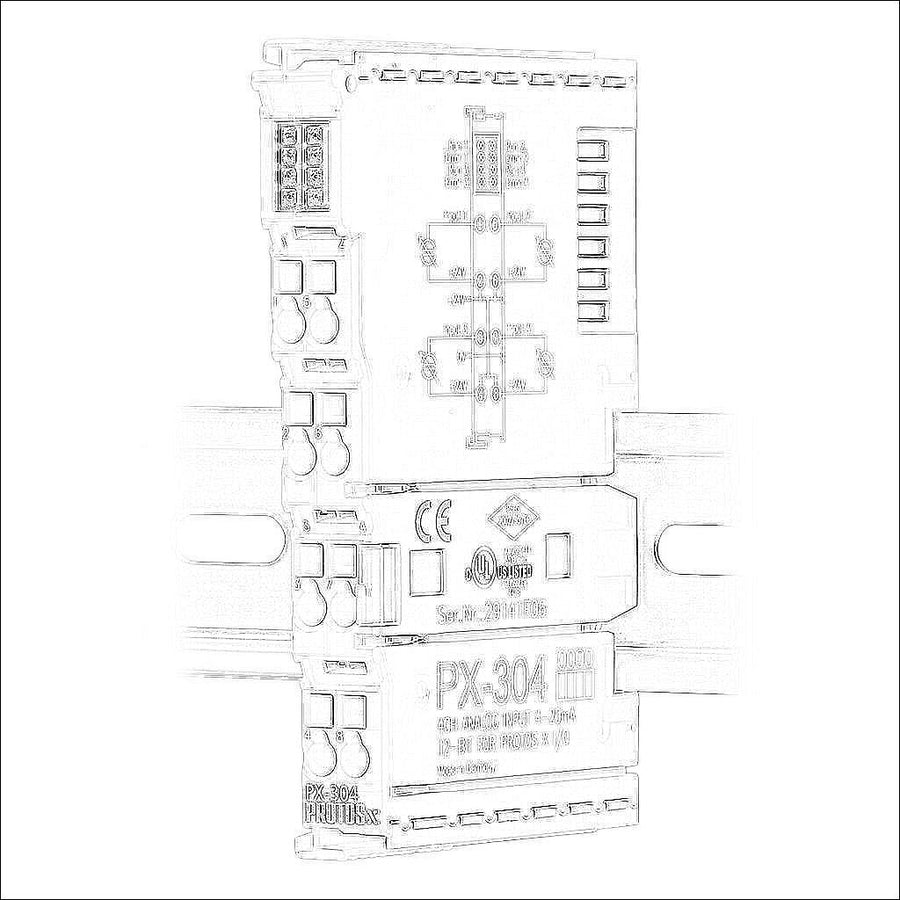

PX-304
PX-304
Protos X analog input terminal, 4-channel, current, 12-bit, input current signal range(s) of 4-20 mA.
$371.25

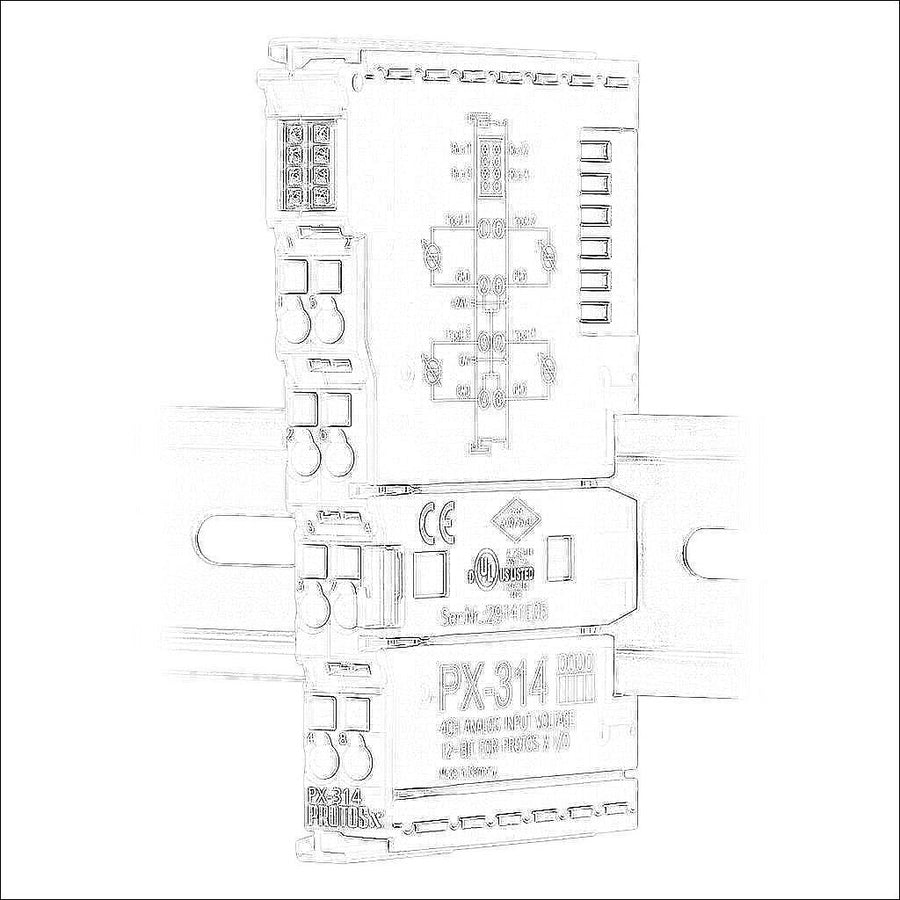

PX-314
PX-314
Protos X analog input terminal, 4-channel, voltage, 12-bit, input voltage signal range(s) of +/- 10 VDC.
$371.25

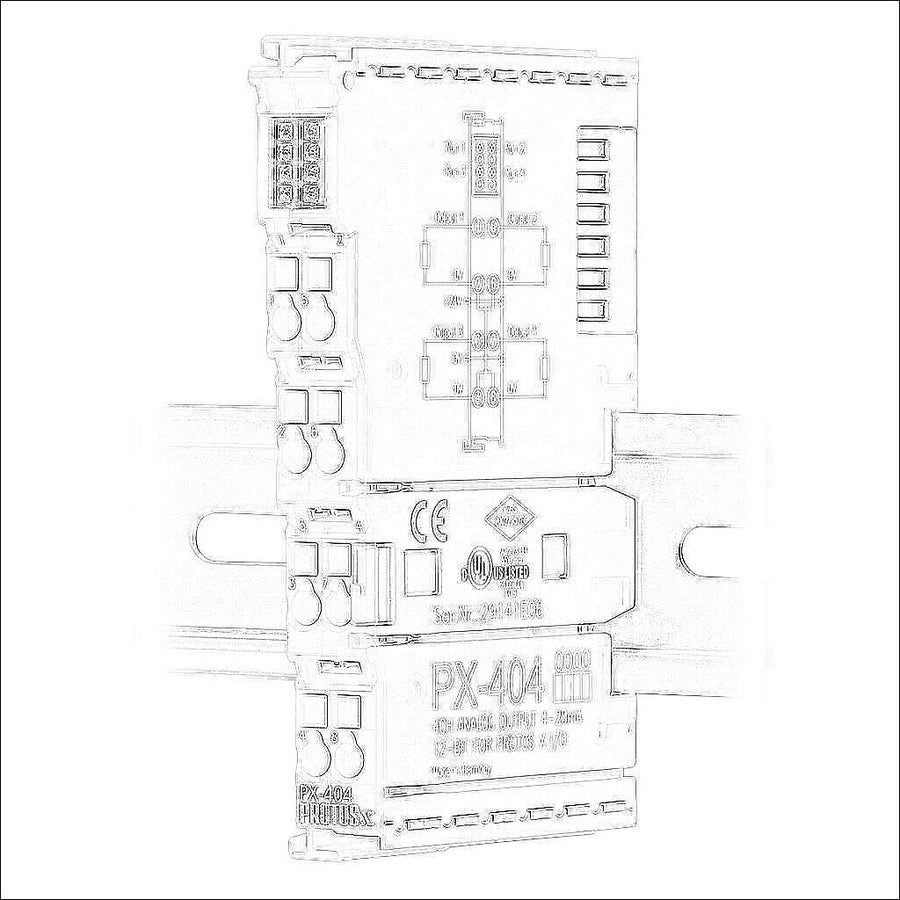

PX-404
PX-404
Protos X analog output terminal, 4-channel, current, 12-bit, output current signal range(s) of 4-20 mA.
$371.25
Showing pages 1 of 2
