| Technical Data | ||
|---|---|---|
| Brand | WEG Electric | |

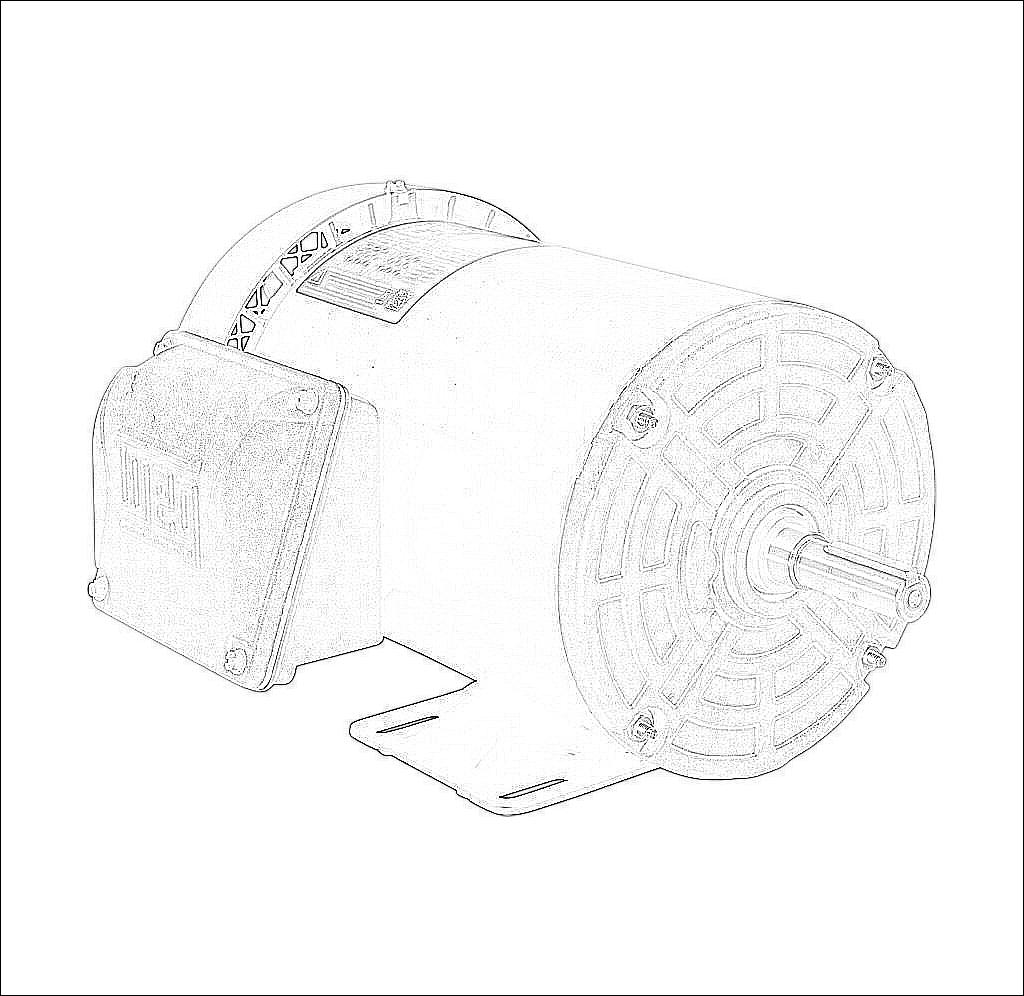

| Item | Motor | |
| Series | S | |
| Efficiency Group | Premium efficiency | |
| Efficiency | 85.5 | |
| Voltage Type | AC | |
| Motor Type | Induction | |
| Motor Application | General purpose and inverter rated | |
| Horsepower Rating | 1hp | |
| Number of Phases | 3 | |
| Voltage Rating | 208-230/460 VAC | |
| Synchronous Speed | 1800rpm | |
| Nameplate RPM | 1765rpm | |
| Overload Type | None | |
| Enclosure Type | TEFC | |
| Shaft Type | Round with square key | |
| Shaft Diameter | 5/8in | |
| Shaft Material | 1045 carbon steel | |
| Motor Frame | NEMA 56 | |
| Frame Material | Rolled steel | |
| Electrically Reversible | Yes | |
| Insulation Class | Class F | |
| IP Rating | IP55 | |
| Constant Torque Rating | 5:1 | |
| Variable Torque Rating | 1000:1 | |
| Service Factor | 1.15 | |
| Integrated Brake | No | |
| NEMA Design | Design B | |
| Junction Box Orientation | F1 | |
| Mounting | Rigid base | |
| Mounting Orientation | Horizontal | |
| Additional Information | Class I Div 2 hazardous rating | |
