| Technical Data | ||
|---|---|---|
| Brand | Stego | |

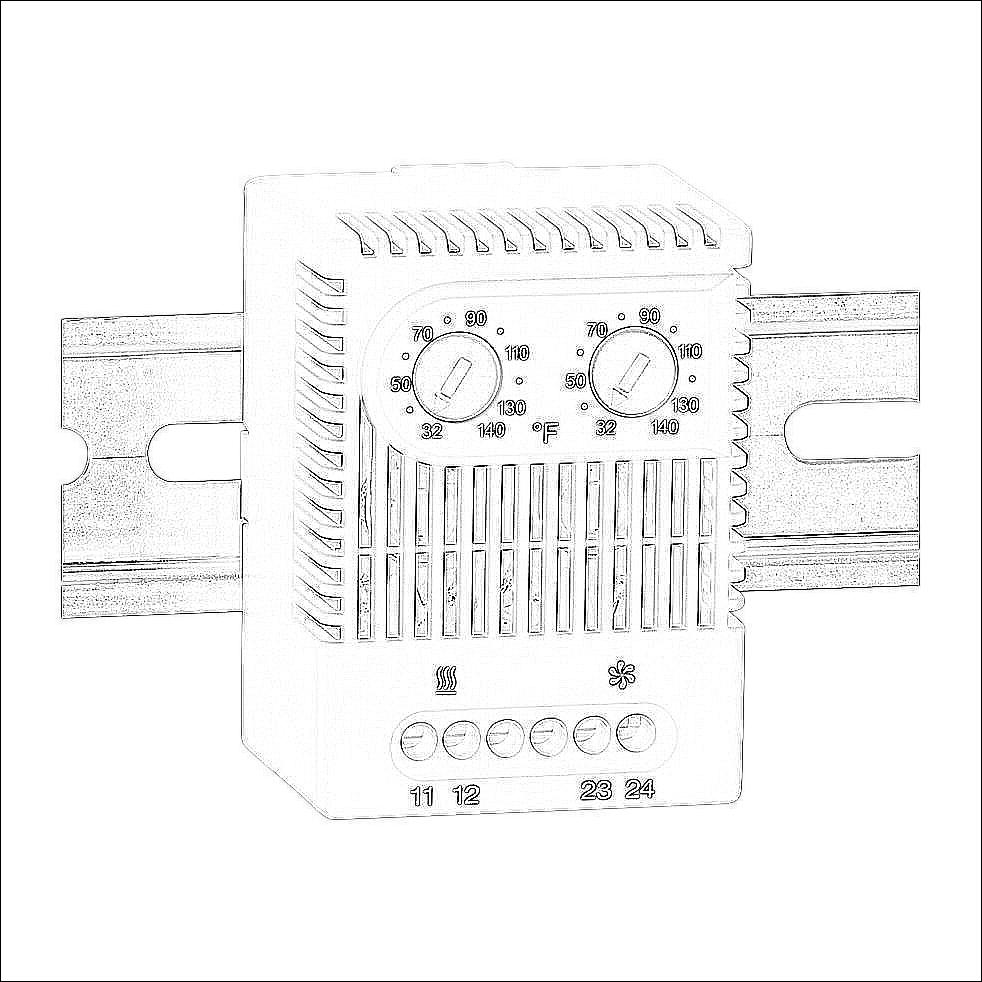

| Item | Thermostat | |
| IP Rating | IP20 | |
| Setpoint Type | Dual adjustable | |
| Contact 1 | N.C. (open on rise) 32 to 140 deg F | |
| Contact 2 | N.O. (close on rise) 32 to 140 deg F | |
| Switching Differential | 12.6 deg F | |
| Switching Tolerance | +/-7 deg F | |
| Maximum Switching Capacity | 15A resistive / 2A inductive at 120 VAC, N.C.: 10A resistive / 2A inductive at 250 VAC, N.O.: 5A resistive / 2A inductive at 250 VAC, 30W DC | |
| Connection | 4-pole terminal for 14 AWG max solid or 16 AWG max stranded wire | |
| Mounting | 35mm DIN rail | |
| Application | For electrical enclosure climate control | |
