| Technical Data | ||
|---|---|---|

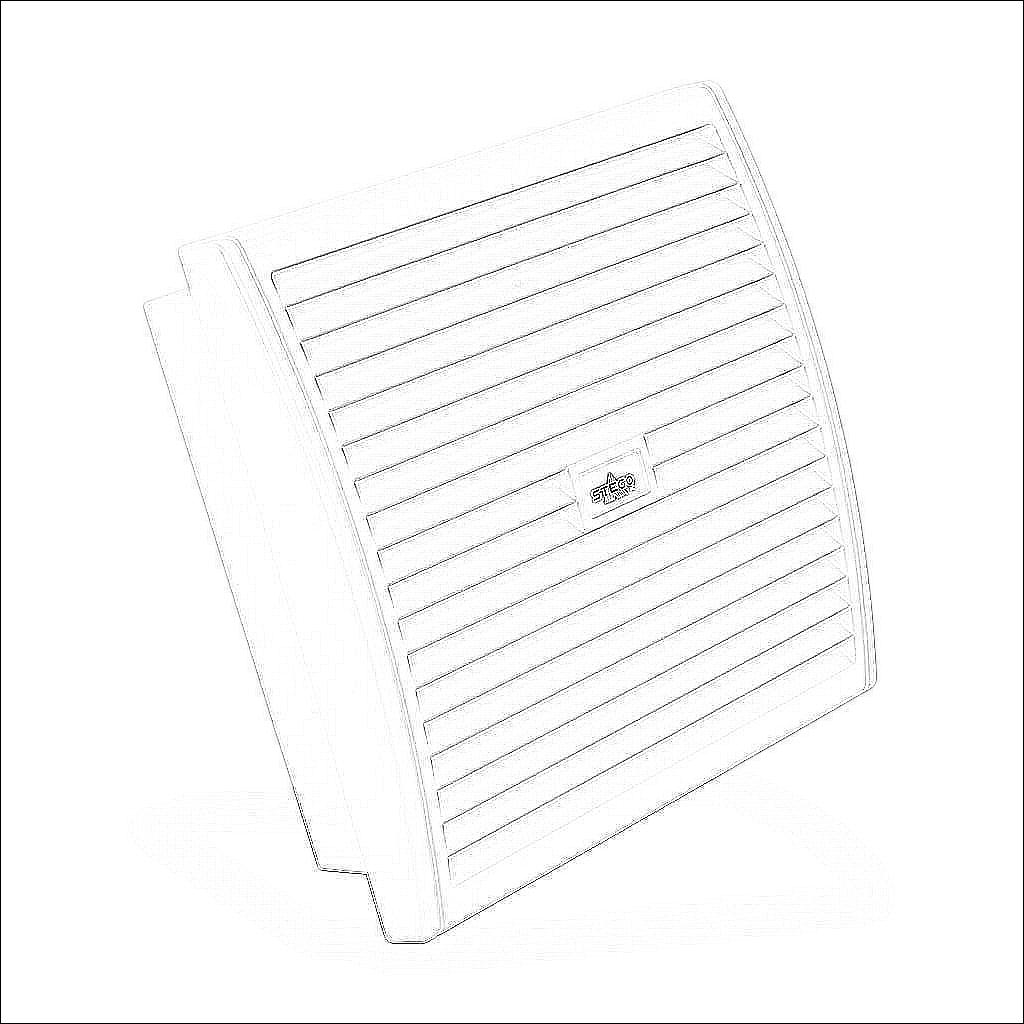

| Brand | Stego | |
| Series | Filter Fan | |
| Airflow Direction | Intake | |
| Item | Fan | |
| Mounting | Side | |
| With Air Flaps | No | |
| Filter Media | G4 (coarse) filter mat | |
| Free Airflow | 176 CFM | |
| Airflow with Grill and Filter(s) | 135 CFM | |
| Operating Voltage | 24 VDC | |
| Power Consumption | 20W | |
| Current Draw | 840 mA | |
| Electrical Connection | 3-pole clamp for AWG 14 wire, 7.1 in-lb maximum clamping torque | |
| Maximum Static Pressure | 27Pa | |
| Operating Temperature | 14 to 158 deg F | |
| Average Noise Level | 53 dBA | |
| NEMA Rating | 12 | |
| Application | Indoor use only | |
| IP Rating | IP54 (IP55 with optional M5 filter media) | |
| Enclosure Cutout | 9.84 x 9.84in | |
| Color | RAL 7035 light gray | |
| Includes | Optional mounting screws | |
| Additional Information | Purchase exhaust grille separately | |
