| Technical Data | ||
|---|---|---|
| Brand | Stego | |

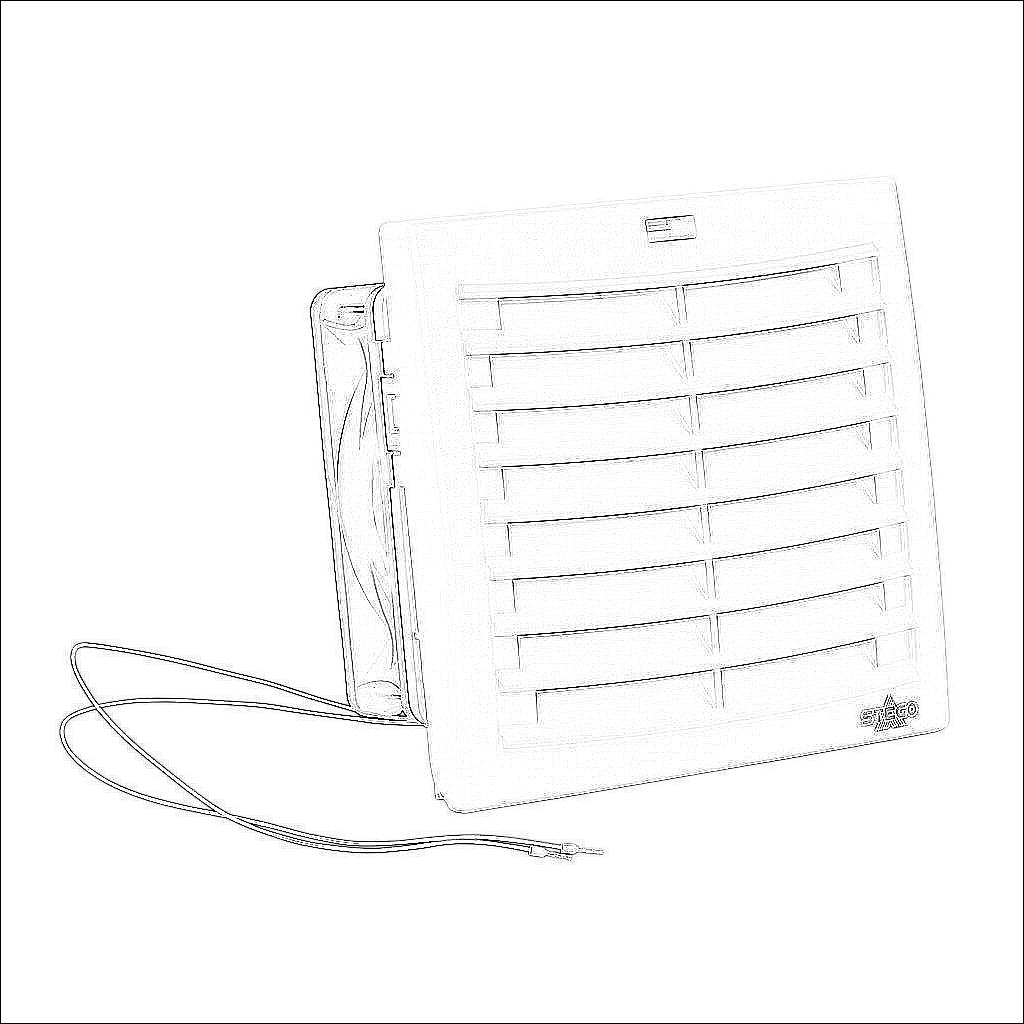

| Series | Filter Fan Plus FPO | |
| Airflow Direction | Exhaust | |
| Item | Fan | |
| Mounting | Side | |
| With Air Flaps | Yes | |
| Free Airflow | 74 CFM | |
| Airflow with Grill and Filter(s) | 37 CFM | |
| Operating Voltage | 48 VDC | |
| Power Consumption | 4.2W | |
| Current Draw | 88 mA | |
| Electrical Connection | (2) AWG 22 x 11.8in long wires | |
| Maximum Static Pressure | 92Pa | |
| Operating Temperature | -4 to 158 deg F | |
| Average Noise Level | 50 dBA | |
| NEMA Rating | 12 | |
| Application | Indoor use only | |
| IP Rating | IP54 | |
| Enclosure Cutout | 4.88 x 4.88in | |
| Color | RAL 7035 light gray | |
| Includes | Optional mounting screws | |
| Additional Information | Purchase intake grille separately | |
