| Technical Data | ||
|---|---|---|
| Brand | Stego | |

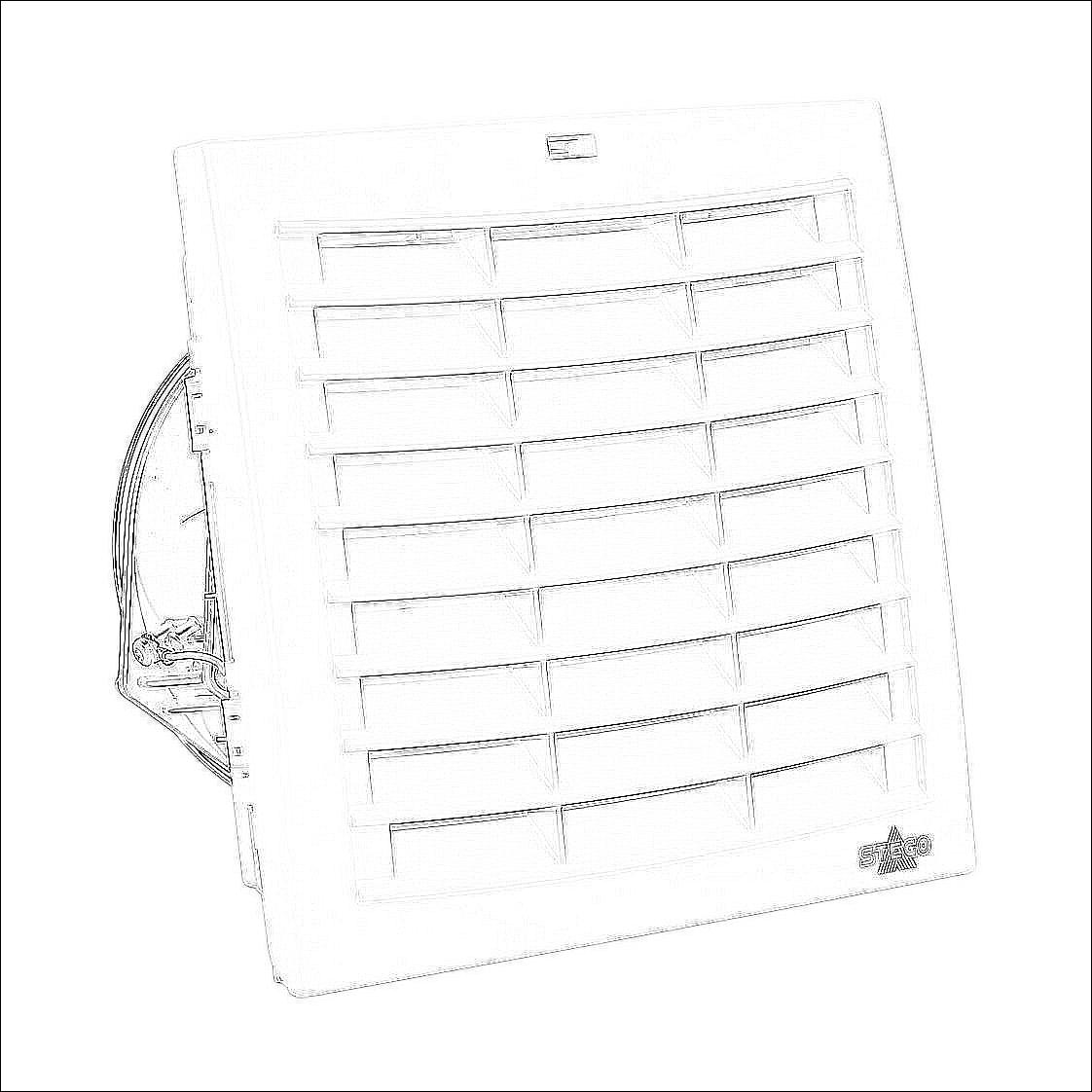

| Series | Filter Fan Plus FPO | |
| Airflow Direction | Exhaust | |
| Item | Fan | |
| Mounting | Side | |
| With Air Flaps | Yes | |
| Free Airflow | 158 CFM | |
| Airflow with Grill and Filter(s) | 83 CFM | |
| Operating Voltage | 24 VDC | |
| Power Consumption | 12W | |
| Current Draw | 500 mA | |
| Electrical Connection | 3-pole clamp for AWG 14 wire, 7.1 in-lb maximum clamping torque | |
| Maximum Static Pressure | 138Pa | |
| Operating Temperature | -13 to 158 deg F | |
| Average Noise Level | 63 dBA | |
| NEMA Rating | 12 | |
| Application | Indoor use only | |
| IP Rating | IP54 | |
| Enclosure Cutout | 6.93 x 6.93in | |
| Color | RAL 7035 light gray | |
| Includes | Optional mounting screws | |
| Additional Information | Purchase intake grille separately | |
