| Technical Data | ||
|---|---|---|
| Brand | Sumitomo | |
| Series | B2 | |

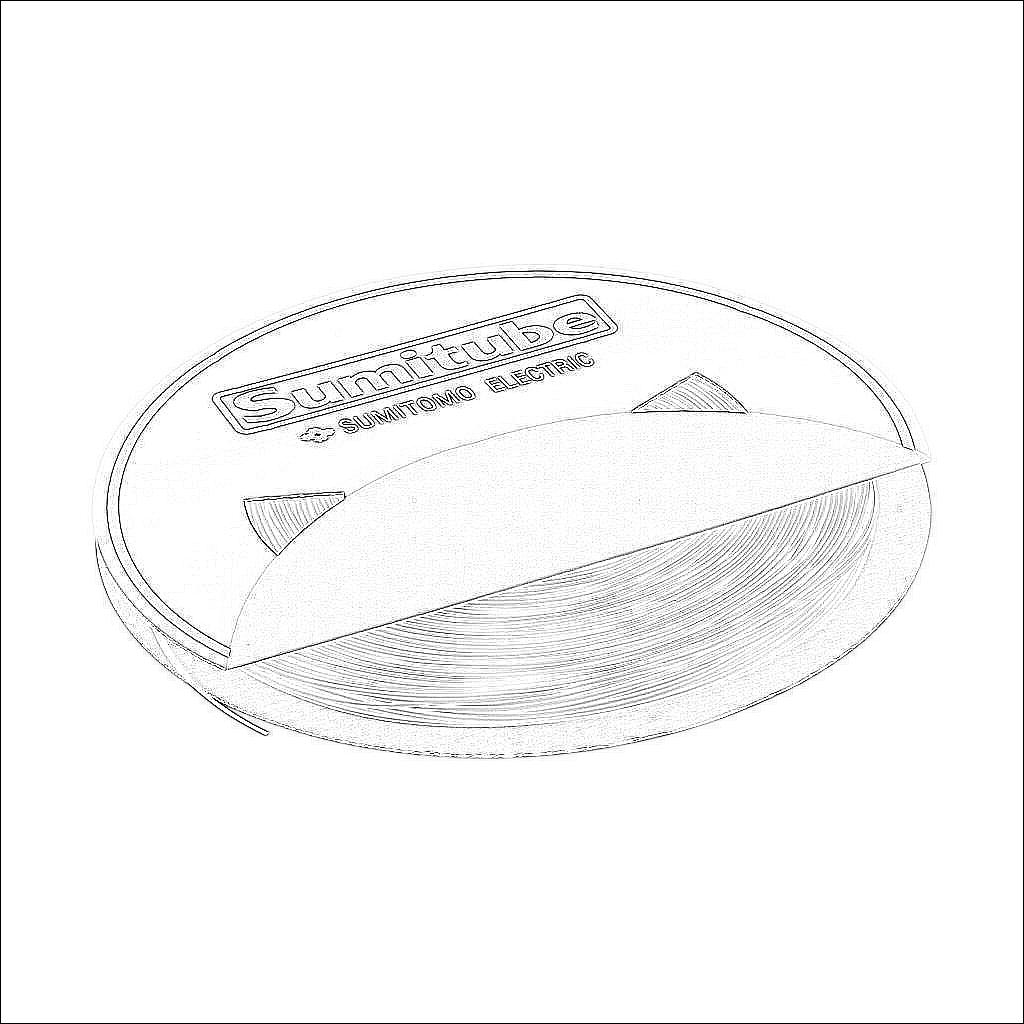

| Item | Heat shrink tubing | |
| Trade Size | 1/16in | |
| Shrink Ratio | 2:1 | |
| Flexibility | Flexible | |
| Wall Type | Single wall | |
| Outer Wall Material | Irradiated cross-linked polyolefin | |
| Color | Black | |
| Voltage Rating | 600V | |
| Supplied Inside Diameter | 0.063in (1.6mm) | |
| Recovered Inside Diameter | 0.031in (0.8mm) | |
| Recovered Wall Thickness | 0.017in (0.43mm) | |
| Dielectric Strength | 942 V/mil (37.1 kV/mm) | |
| Shrink Temperature | 194 deg F (90 deg C) | |
| Minimum Temperature | -67 deg F (-55 deg C) | |
| Maximum Temperature | 257 deg F (125 deg C) | |
| Flame Retardant | Yes | |
| Flammability | UL 1581 VW-1 | |
| Length | 1000ft spool | |
| Applicable Standards | UL 224, CSA C22.2 No. 198.1 and SAE-AS23053/4 Class 1, 3 | |
| Application | General purpose | |
