| Technical Data | ||
|---|---|---|
| Brand | WEG Electric | |

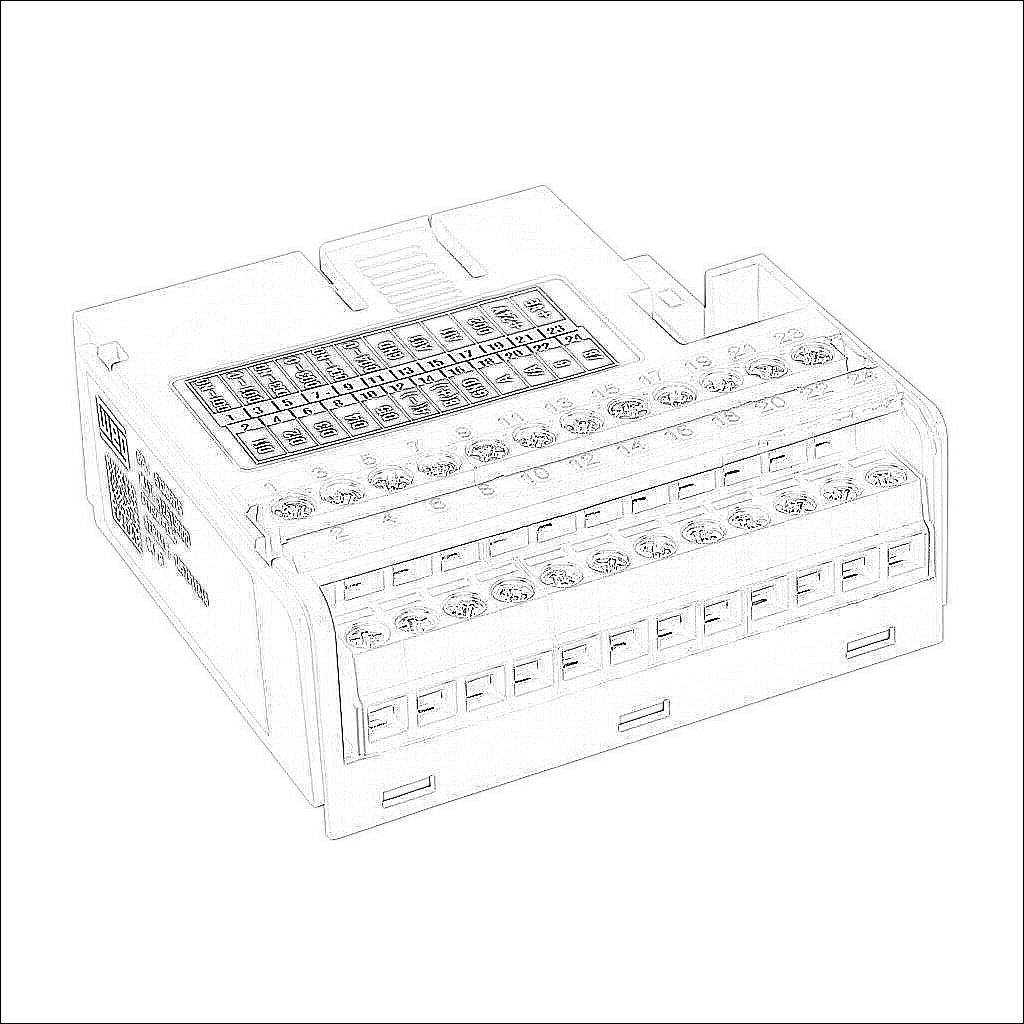

| Item | Combo module | |
| I/O Module Type | Encoder analog | |
| Series | CFW500 | |
| Maximum Switching Frequency | 400 kHz | |
| Input High Speed Type | 1-channel quadrature encoder | |
| Number of Analog Input Channels | 1 | |
| Analog Input Signal Type | Current/voltage | |
| Number of Non-Isolated Analog Input Commons | 1 | |
| Input Resolution | 10-bit | |
| Input Current Signal Range | 0-20 mA, 4-20 mA | |
| Input Voltage Signal Range | 0-10 VDC | |
| Number of Analog Output Channels | 1 | |
| Analog Output Signal Type | Current/voltage | |
| Number of Non-Isolated Analog Output Commons | 1 | |
| Output Resolution | 10-bit | |
| Output Current Signal Range | 0-20 mA and 4-20 mA | |
| Output Voltage Signal Range | 0-10 VDC | |
| For Use With | WEG CFW500 series AC drives | |
| Manufacturer Part Number | CFW500-ENC | |
