| Technical Data | ||
|---|---|---|
| Brand | Eaton | |

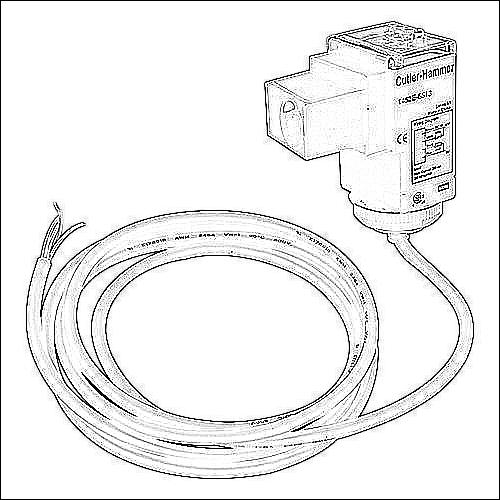

| Item | Photoelectric sensor | |
| Shape | Rectangular | |
| Housing Size | 73 x 79.5 x 46mm | |
| Thread mounting base size | 30mm | |
| IP Rating | IP67 | |
| Application | Clear object and standard duty | |
| Housing Material | Plastic | |
| Sensing Method | Polarized retroreflective | |
| Sensing Technology | Clear object detection | |
| Operating Voltage | 12-240 VDC/24-240 VAC | |
| Number of Wires | 4 | |
| Switching Output | Solid state relay | |
| Sensing Distance | 45in | |
| Sensitivity | Potentiometer | |
| Operation Mode | Selectable light-on/dark-on | |
| Switching Frequency | 500 Hz | |
| Light Emission | Visible red | |
| Cable Length | 6ft/1.8m | |
| Connection | Pigtail | |
| Conductor Size | 20 AWG | |
| Includes | Mounting hardware | |
| Additional Information | Mounting nut included | |
