| Technical Data | ||
|---|---|---|
| Brand | WEG Electric | |

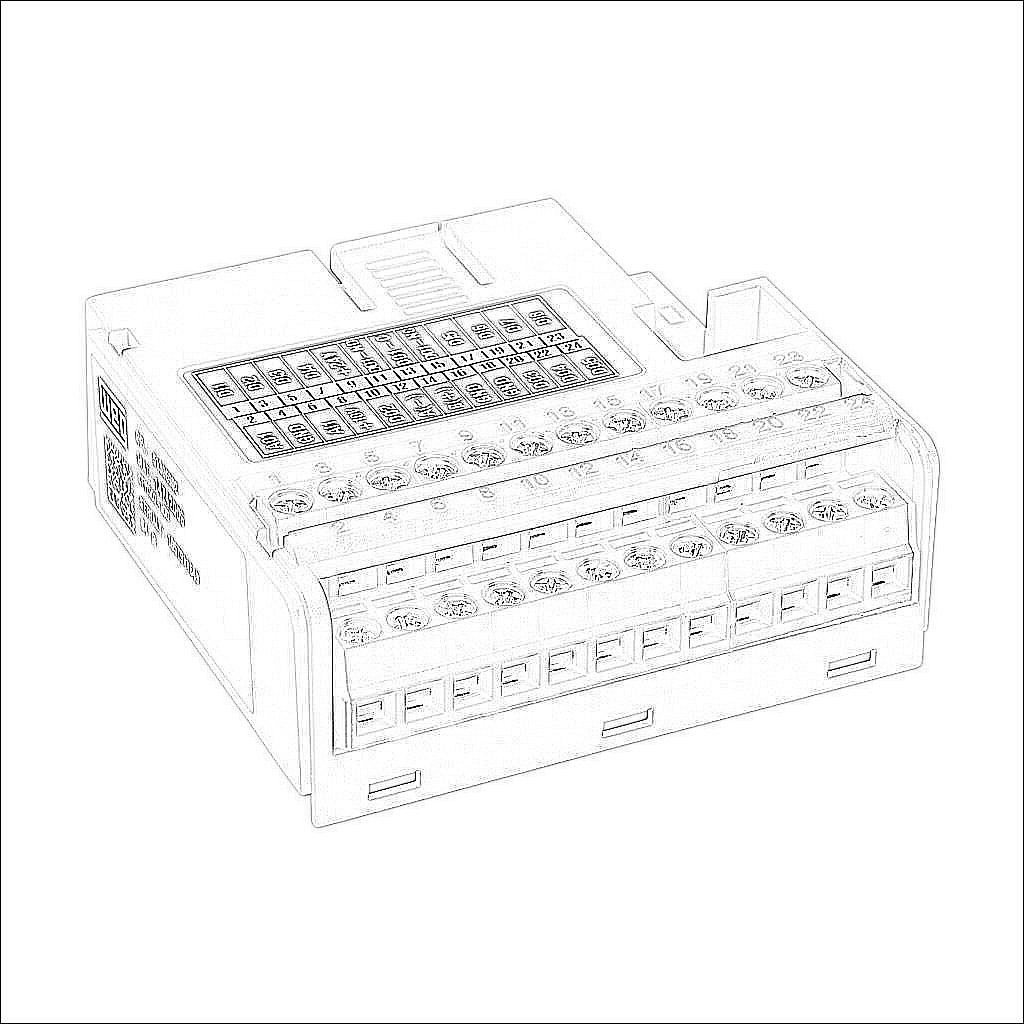

| Item | Combo module | |
| I/O Module Type | Relay/analog | |
| Series | CFW500 | |
| Number of Analog Input Channels | 1 | |
| Analog Input Signal Type | Current/voltage | |
| Analog Input Type | Sinking and sourcing | |
| Number of Non-Isolated Analog Input Commons | 1 | |
| Number of Points per Analog Input Common | 1 | |
| Input Resolution | 10-bit | |
| Input Current Signal Range | 0-20 mA and 4-20 mA | |
| Input Voltage Signal Range | 0-10 VDC | |
| Number of Analog Output Channels | 1 | |
| Analog Output Signal Type | Current/voltage | |
| Number of Non-Isolated Analog Output Commons | 1 | |
| Number of Points per Analog Output Common | 1 | |
| Output Resolution | 10-bit | |
| Output Current Signal Range | 0-20 mA and 4-20 mA | |
| Output Voltage Signal Range | 0-10 VDC | |
| Number of Discrete Input Points | 8 | |
| Nominal Input Voltage | 24 VDC | |
| Discrete Input Type | Sourcing | |
| Number of Non-Isolated Discrete Input Commons | 1 | |
| Number of Points per Discrete Input Common | 1 | |
| Number of Discrete Output Points | 5 | |
| Nominal Output Voltage | 240 VAC/24 VDC | |
| Discrete Output Type | Relay | |
| Relay Configuration | (1) Form C (SPDT) relay | |
| Number of Non-Isolated Discrete Output Commons | 1 | |
| Number of Points per Discrete Output Common | 1 | |
| Load Current | 0.5A/point relay, 150 mA/point discrete | |
| Communication Port and Connection Type(s) | (1) RS-485 (3-pin terminal) port(s) | |
| Port Protocol(s) | Modbus RTU Master/Slave | |
| Port Speed(s) | Up to 38.4k baud | |
| Fuse Type | User-supplied external fuse | |
| For Use With | WEG CFW500 series AC drives | |
| Manufacturer Part Number | CFW500-IOD | |
