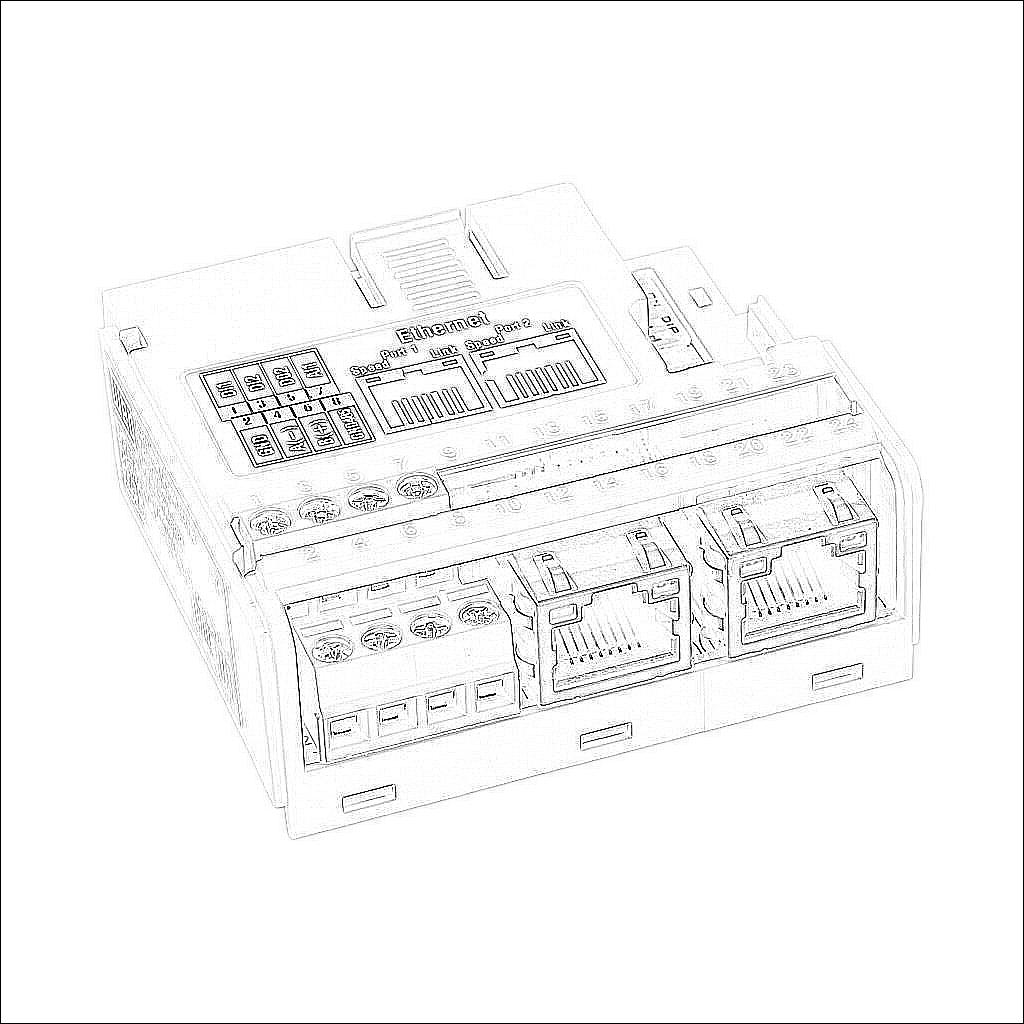

WEG Electric CFW500 series communication module, EtherNet/IP, Modbus TCP, Modbus RTU, BACnet and webserver, 3 ports, (2) Ethernet (RJ45) and (1) RS-485 (3-pin terminal) port(s). For use with WEG CFW500 series AC drives.

$435
/
Technical Data
BrandWEG Electric
ItemCommunication module
SeriesCFW500
Number of Ports3
Communication Port and Connection Type(s)
  • (2) Ethernet (RJ45)
  • (1) RS-485 (3-pin terminal)
Port Protocol(s)
  • EtherNet/IP Server
  • Modbus TCP Server
  • Modbus RTU Master/Slave
  • BACnet Master/Slave
  • webserver (non-secure HTTP)
Port Speed(s)
  • up to 38.4k baud
  • 10/100 Mbps auto-detect
For Use WithWEG CFW500 series AC drives
Manufacturer Part NumberCFW500-CETH2
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
