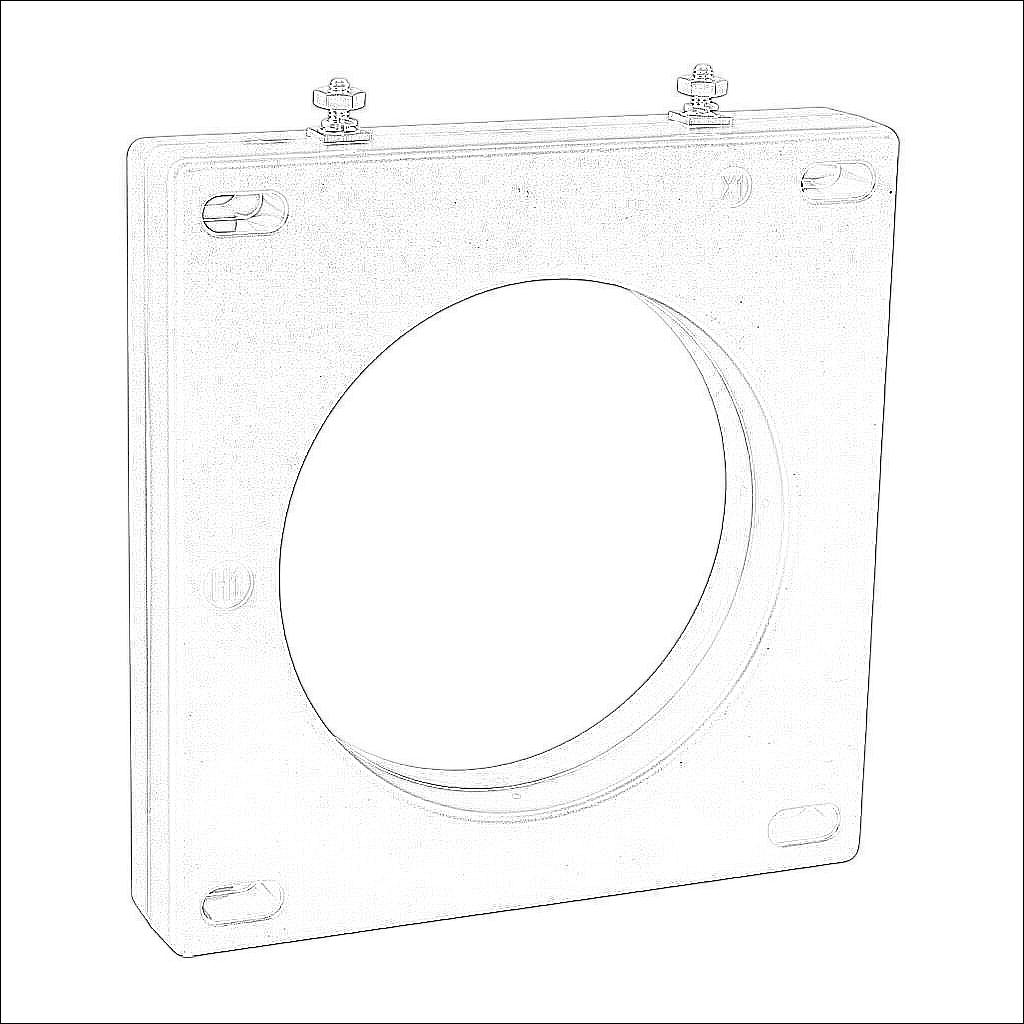

| Technical Data | ||
|---|---|---|
| Brand | Sifam Tinsley | |
| Item | Transformer | |
| Transformer Type | Current | |
| Voltage Type | AC | |
| Body Type | Solid core | |
| Primary Current | 800A | |
| Secondary Current | 5A | |
| Sensing Window | 4.25in diameter | |
| Accuracy | +/- 1% | |
| Secondary Conductors | 16 AWG minimum | |
| Secondary Connection Type | 8-32 terminal stud with nut | |
| Mounting | Panel | |
| Additional Information | Metering Class Accuracy achievable when maximum burden values are not exceeded | |
