| Technical Data | ||
|---|---|---|
| Brand | Pfannenberg | |

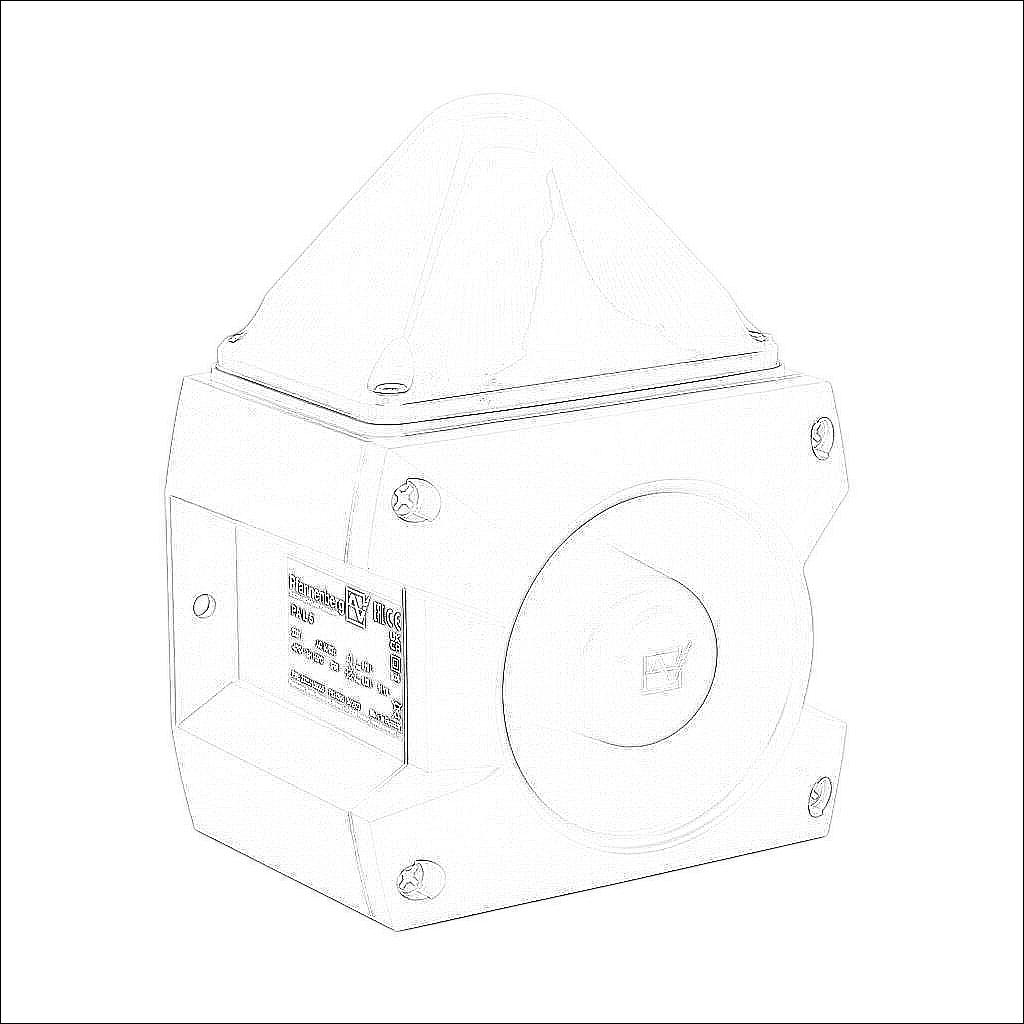

| Item | Audible-visual signal beacon | |
| Series | PATROL | |
| Bulb Type | LED | |
| Operator Size | 163 x 132 x 215mm | |
| Operator Color | Clear | |
| Light Color(s) | Red/yellow/green/blue | |
| Light Function | Selectable permanent, blinking or flashing | |
| Housing Material | Polycarbonate | |
| Material | ABS plastic | |
| Loudness Decibel | 107 dB at 1m | |
| Tone Frequency | 150 Hz to 2.9 kHz | |
| Tone Type | (80) selectable | |
| Touch to Acknowledge | No | |
| Number of Alarms | 80 | |
| Voltage Rating | 230 VAC | |
| Mounting | Surface | |
| IP Rating | IP66 | |
| NEMA Rating | 4/4X | |
| Connection | Screw terminal | |
