| Technical Data | ||
|---|---|---|

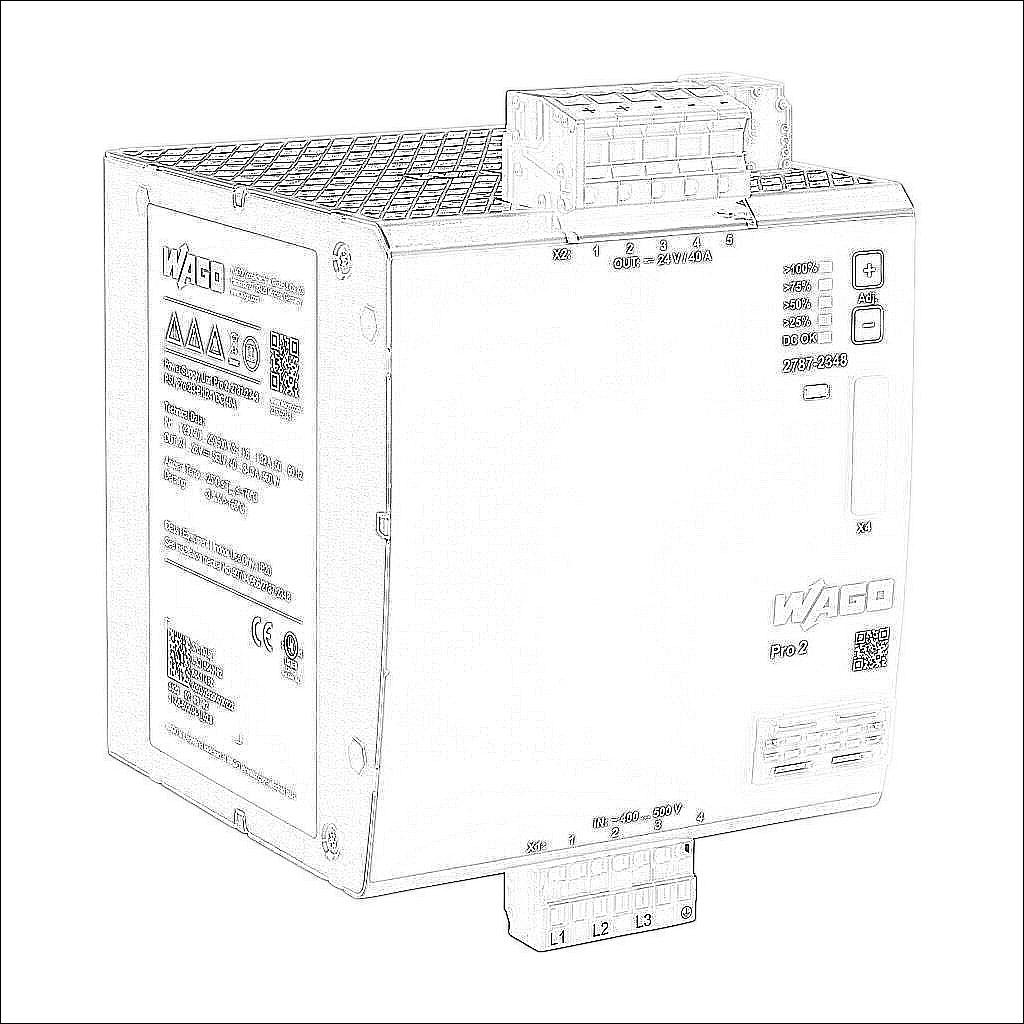

| Brand | WAGO | |
| Item | Power supply | |
| Series | Pro2 | |
| Power Supply Type | Switching | |
| Efficiency | 96.3% @ 400 VAC | |
| Output Configuration | Single output | |
| Output | 24 VDC @ 40A/960W (adjustable) | |
| Output Voltage Range | 24-28 VDC | |
| Input voltage range | 340-550 VAC/480-780 VDC | |
| Number of Input Phases | 3 | |
| Protection Type(s) |
| |
| Voltage Monitoring | Yes | |
| Enclosure Type | Enclosed | |
| Housing Material | Metal | |
| IP Rating | IP20 | |
| Mounting | 35mm DIN rail | |
| Connector Type | Cage clamp | |
| NEC Class 2 | No | |
| Integrated UPS Battery Control | No | |
| Operating Temperature | -20 to 75 deg C | |
| Power Boost | 150% for 5s | |
