| Technical Data | ||
|---|---|---|
| Brand | Gates | |

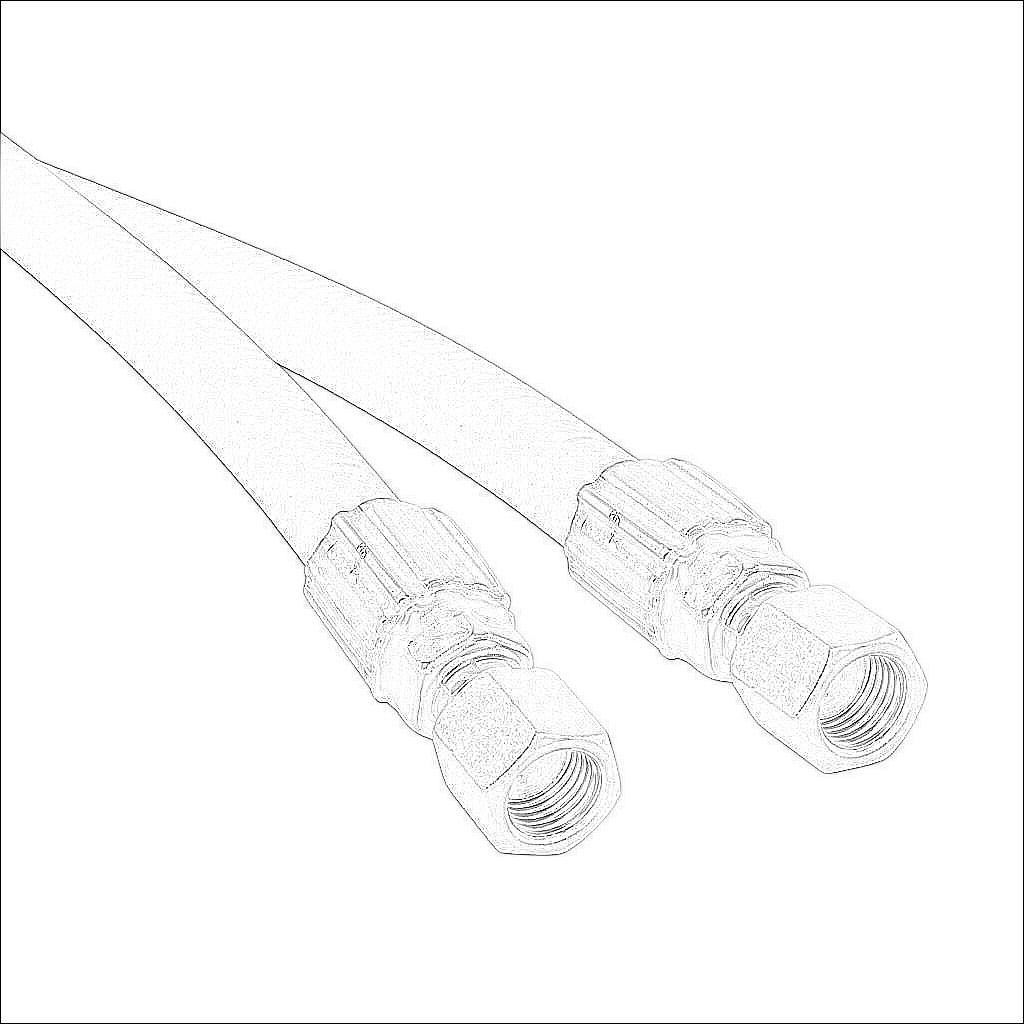

| Item | Hose assembly | |
| Series | ProFlex | |
| Working Fluid | Petroleum based hydraulic fluid | |
| Material | Synthetic rubber | |
| Reinforcement | Braided steel wire | |
| Color | Black | |
| Inside Diameter | 3/8in | |
| Outside Diameter | 0.65in | |
| Connection | (2) -6 female straight JIC 37 deg fittings | |
| Minimum Bend Radius | 2.5in | |
| Working Length | 6ft working length | |
| Operating Pressure | 4800 psi | |
| Operating Temperature | -40 to +212 deg F | |
| Duty Rating | 200,000 cycles | |
