| Technical Data | ||
|---|---|---|
| Brand | FTG | |

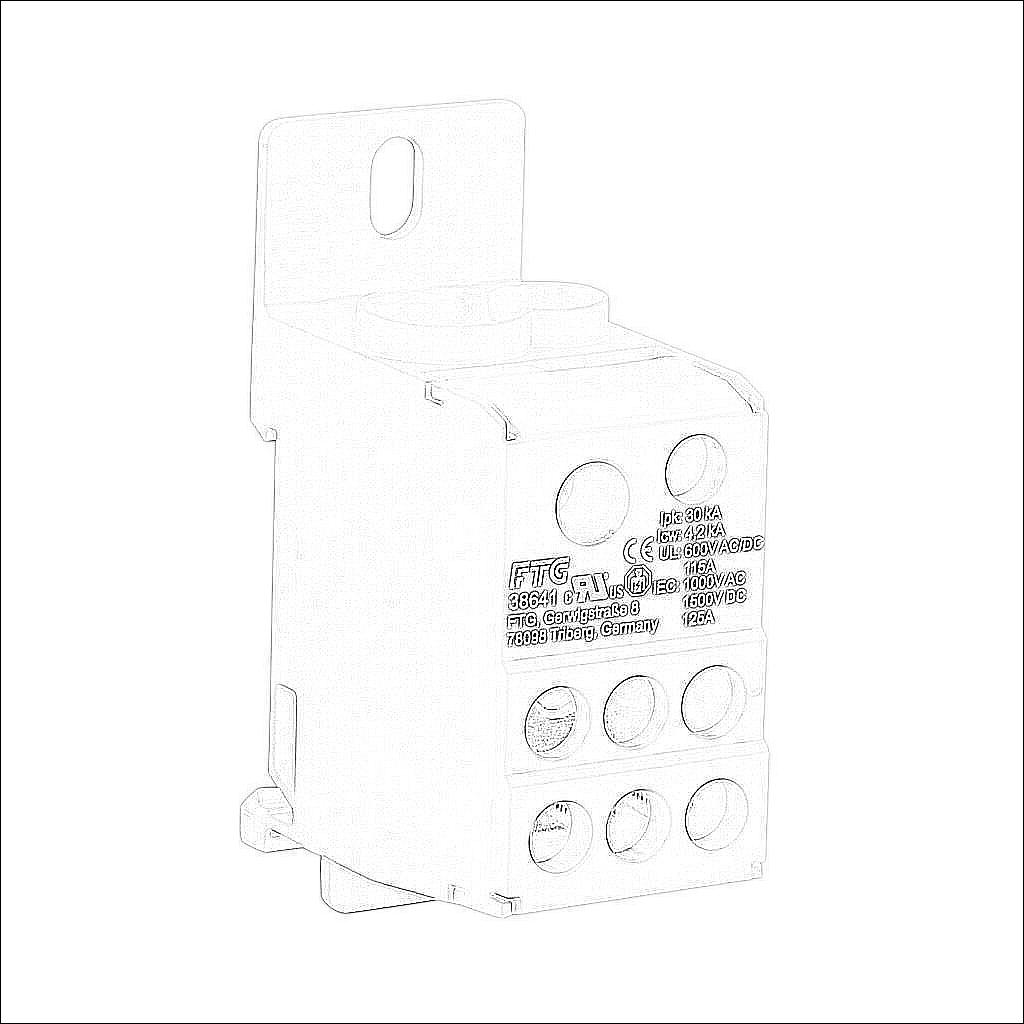

| Item | Terminal block | |
| Terminal Block Type | Enclosed | |
| Modular | No | |
| Finger-safe | Yes | |
| Amperage Rating | 115A | |
| Number of Poles | 1 | |
| Line Side Openings | 1 opening accepts 2 AWG to 8 AWG &1 opening accepts 4 AWG to 14 AWG | |
| Load Side Openings | 6 openings accept 4 AWG to 14 AWG | |
| Mounting | Panel or 35mm DIN rail | |
| SCCR Rating | 10kA SCCR | |
| UL Rating | UL 1059 recognized | |
| IP Rating | IP20 | |
