| Technical Data | ||
|---|---|---|
| Brand | FTG | |

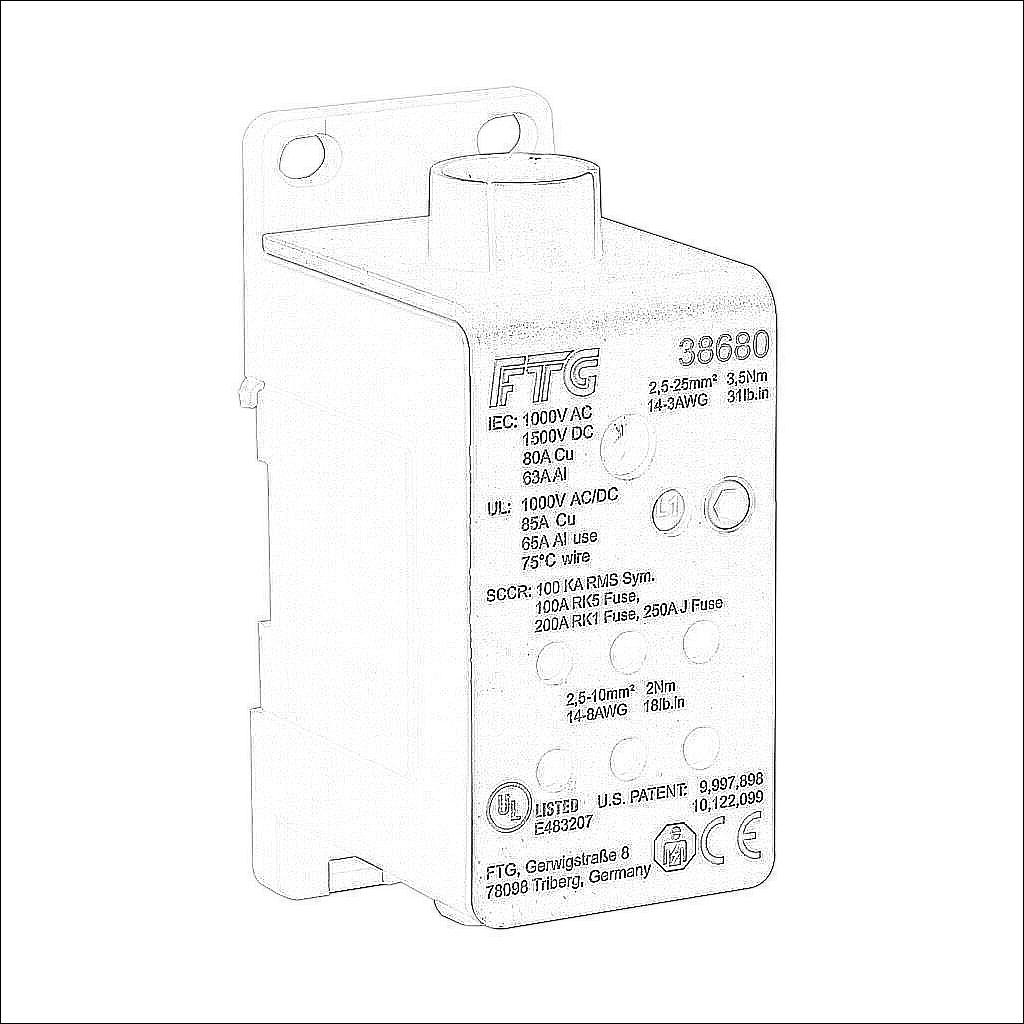

| Item | Power distribution block | |
| Terminal Block Type | Enclosed | |
| Modular | Yes | |
| Finger-safe | Yes | |
| Amperage Rating | 85A | |
| Number of Poles | 1 | |
| Line Side Openings | 1 opening accepts 3 AWG to 14 AWG | |
| Load Side Openings | 6 openings accept 8 AWG to 14 AWG | |
| Mounting | Panel or 35mm DIN rail | |
| SCCR Rating | 100kA SCCR | |
| UL Rating | UL 1953 listed | |
| IP Rating | IP20 | |
| Additional Information | Suitable for branch and feeder circuits | |
