| Technical Data | ||
|---|---|---|
| Brand | AcuAMP | |

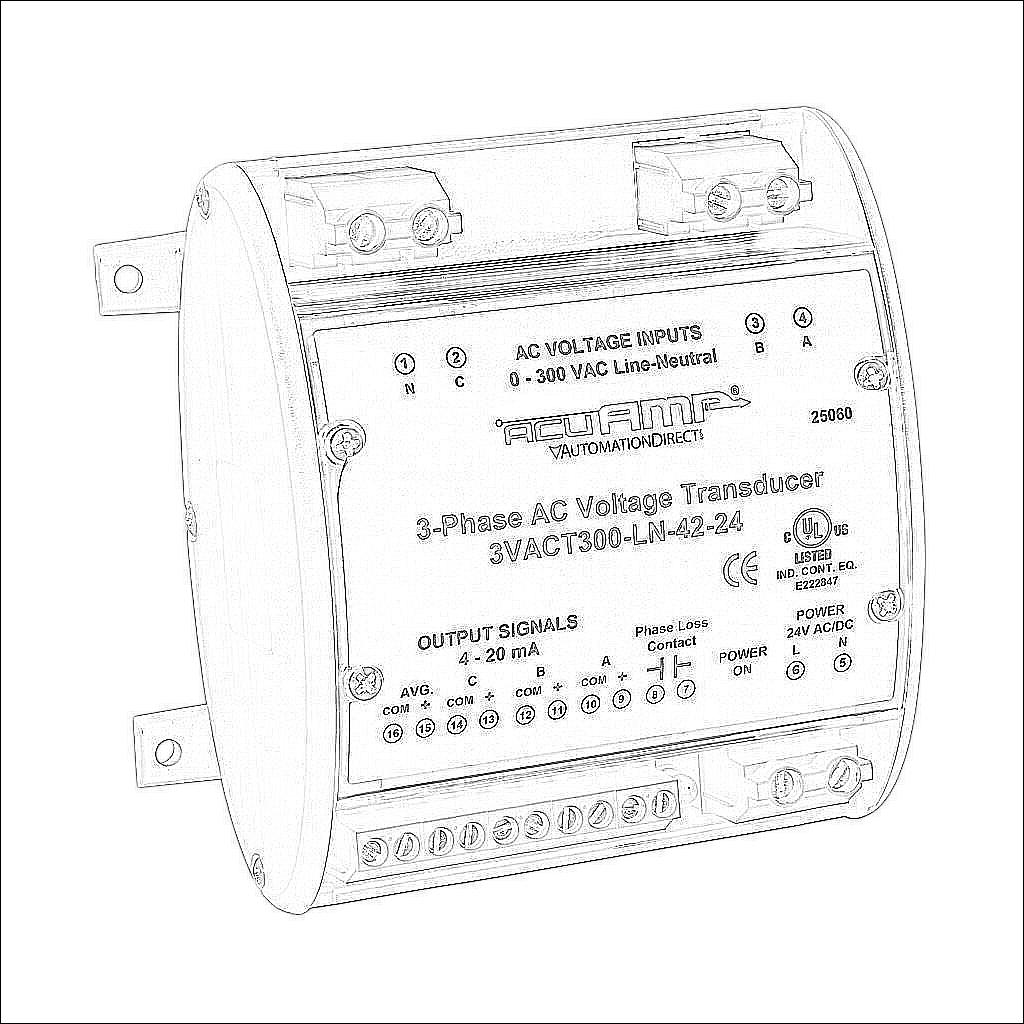

| Item | Voltage transducer | |
| Voltage Type | AC | |
| Number of Phases | 3 | |
| Sensing Range | 0-300 VAC line-to-neutral | |
| True RMS | Yes | |
| Output | (4) 4-20 mA and (1) relay, SPST-N.O. | |
| Output Rating | 0.5A @ 125 VAC, 1A @ 30 VDC | |
| Trip Point | Phase loss @ 180 VAC non-adjustable | |
| Operating Voltage | 24 VAC/VDC | |
| Mounting | Panel or 35mm DIN rail | |
| Electrical Connection | Screw terminals | |
| UL Rating | UL 508 listed | |
