| Technical Data | ||
|---|---|---|
| Brand | WERMA | |

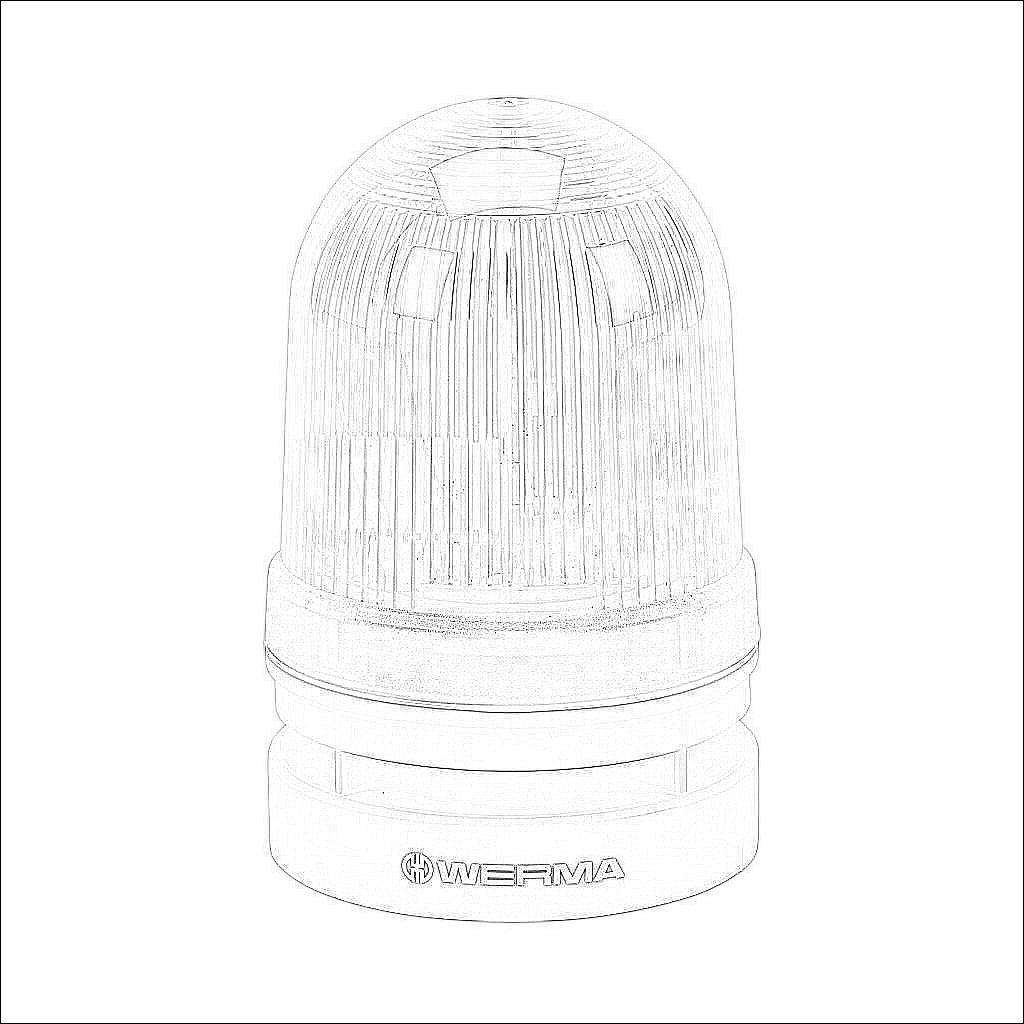

| Item | Audible-visual signal beacon | |
| Series | EvoSIGNAL Midi TwinFLASH | |
| Bulb Type | LED | |
| Operator Size | 85mm | |
| Operator Color | Red | |
| Light Color(s) | Red | |
| Light Function | Double flash (ON 30ms, Off 160ms, ON 30ms, Off 740ms, 1 Hz flash frequency) or EVS (Enhanced Visibility System) flashing (random flashing) | |
| Housing Material | Polycarbonate | |
| Material | ABS/polycarbonate | |
| Loudness Decibel | 110 dB at 1m | |
| Tone Frequency | 3.3 kHz | |
| Tone Type | (10) selectable | |
| Touch to Acknowledge | No | |
| Number of Alarms | 10 | |
| Voltage Rating | 12/24 VAC/VDC | |
| Mounting | Modular | |
| IP Rating | IP66 | |
| Connection | Push-in terminal | |
| Requires | Mounting adapter | |
