| Technical Data | ||
|---|---|---|
| Brand | Murrelektronik | |

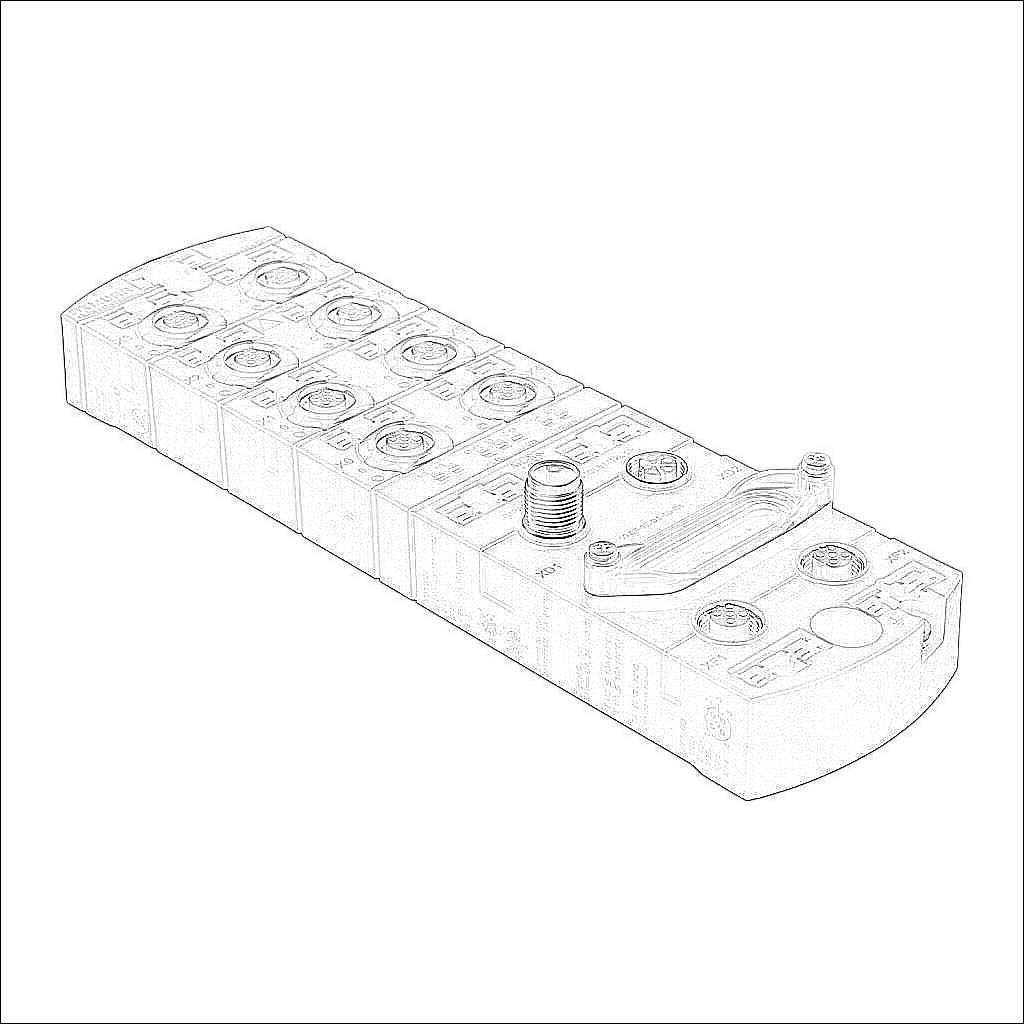

| Item | IO-Link master | |
| Series | Premium | |
| Number of IO-Link Capable I/O Points | 8 | |
| Number of Discrete I/O Points | Up to (16) | |
| Discrete I/O Port Type(s) | (8) 5-pin M12 A-coded | |
| Nominal Input Voltage | 24 VDC | |
| Discrete Input Type | Sinking | |
| Number of Non-Isolated Discrete Input Commons | 1 | |
| Number of Points per Discrete Input Common | 16 | |
| Nominal Output Voltage | 24 VDC | |
| Discrete Output Type | Sourcing | |
| Number of Non-Isolated Discrete Output Commons | 1 | |
| Number of Points per Discrete Output Common | 16 | |
| Communication Port and Connection Type(s) |
| |
| Port Protocol(s) |
| |
| Port Speed(s) |
| |
| IO-Link Version | IO-Link v1.1 | |
| Line Side Port(s) | (1) 5-pin M12 L-coded male | |
| Load Side Port(s) | (1) 5-pin M12 L-coded female | |
| External Power Requirement | 24 VDC | |
| Amperage Rating | 16A | |
| Load Current | 2A/port | |
| Indicator | LED | |
| Housing Material | Plastic | |
| IP Rating | IP65 and IP67 | |
| Temperature Rating | -25 to 70 deg C | |
| Includes | Marking tags | |
| Programming Software | Murrelektronik IO-Link Device Tool v4.0 or later | |
