57050002

57050002

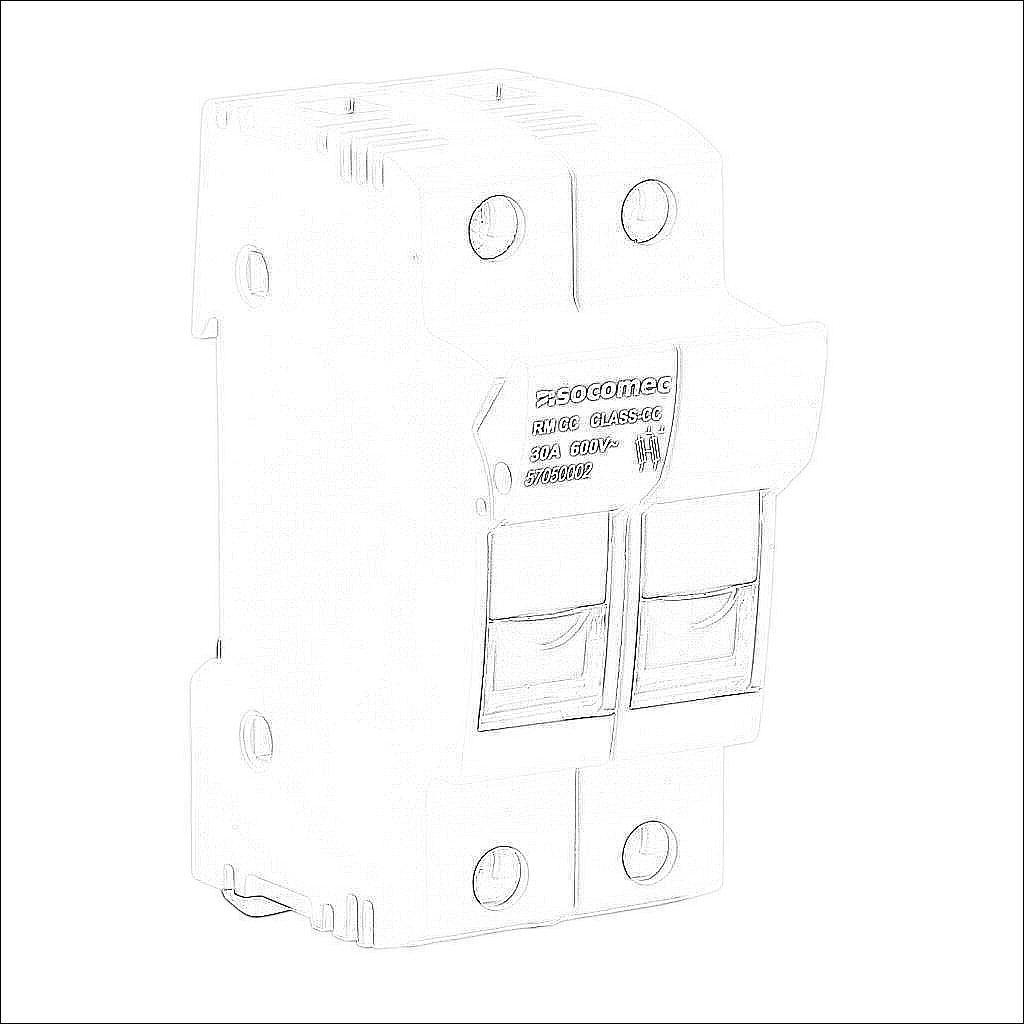

Socomec modular fuse holder, accepts Class CC fuses, 30A, 600 VAC, 2-pole, 18-8 AWG copper only, pressure plate, 35mm DIN rail mount. Package of 6.

$116.25
/
Technical Data
BrandSocomec
ItemFuse holder
ModularYes
Blown Fuse IndicatorNo
Multi-WireNo
Accepts Fuse ClassClass CC
Amperage Rating30A
Voltage Rating600 VAC
Number of Poles2
Conductor Size18-8 AWG copper only
Conductor Connection TypePressure plate
SCCR Rating200kA SCCR
Fuse Connection TypeClip with reinforced spring
Mounting35mm DIN rail
Quantity per Pack6
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
