| Technical Data | ||
|---|---|---|
| Brand | Murrelektronik | |

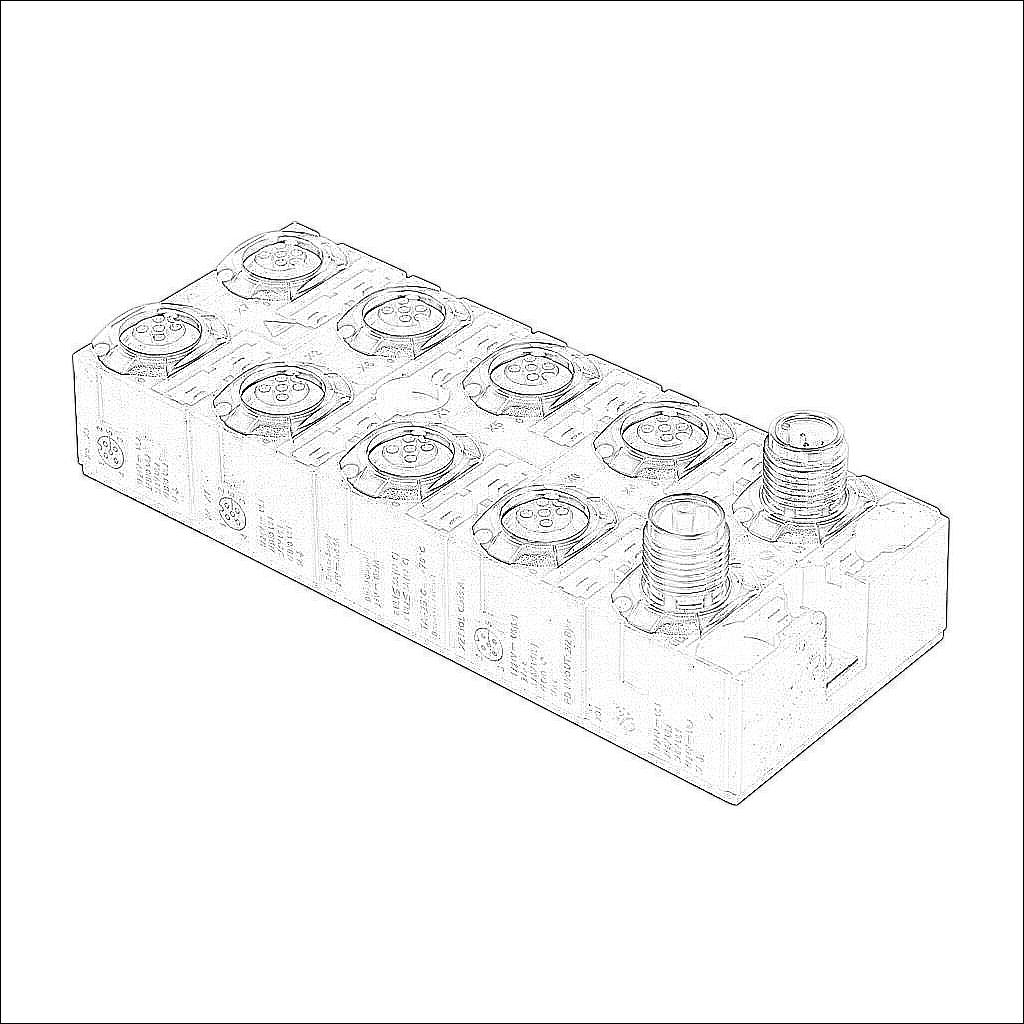

| Item | IO-Link hub | |
| Number of Discrete I/O Points | Up to (16) | |
| Discrete I/O Port Type(s) | (8) 5-pin M12 A-coded | |
| Nominal Input Voltage | 24 VDC | |
| Discrete Input Type | Sinking | |
| Number of Isolated Discrete Input Commons | 2 | |
| Number of Points per Discrete Input Common | 8 | |
| Nominal Output Voltage | 24 VDC | |
| Discrete Output Type | Sourcing | |
| Number of Isolated Discrete Output Commons | 2 | |
| Number of Points per Discrete Output Common | 8 | |
| IO-Link Version | IO-Link v1.1.2 (compatible with v1.1.3) | |
| Communication Port and Connection Type(s) |
| |
| Port Protocol(s) |
| |
| Port Speed(s) |
| |
| External Power Requirement | 24 VDC | |
| Amperage Rating | 12A | |
| Load Current | 4A/port | |
| Indicator | LED | |
| Housing Material | Plastic | |
| IP Rating | IP68 | |
| Temperature Rating | -25 to 70 deg C | |
| Includes | Marking tags | |
| Requires | IO-Link master | |
| Programming Software | Murrelektronik IO-Link Device Tool v4.0 or later | |
