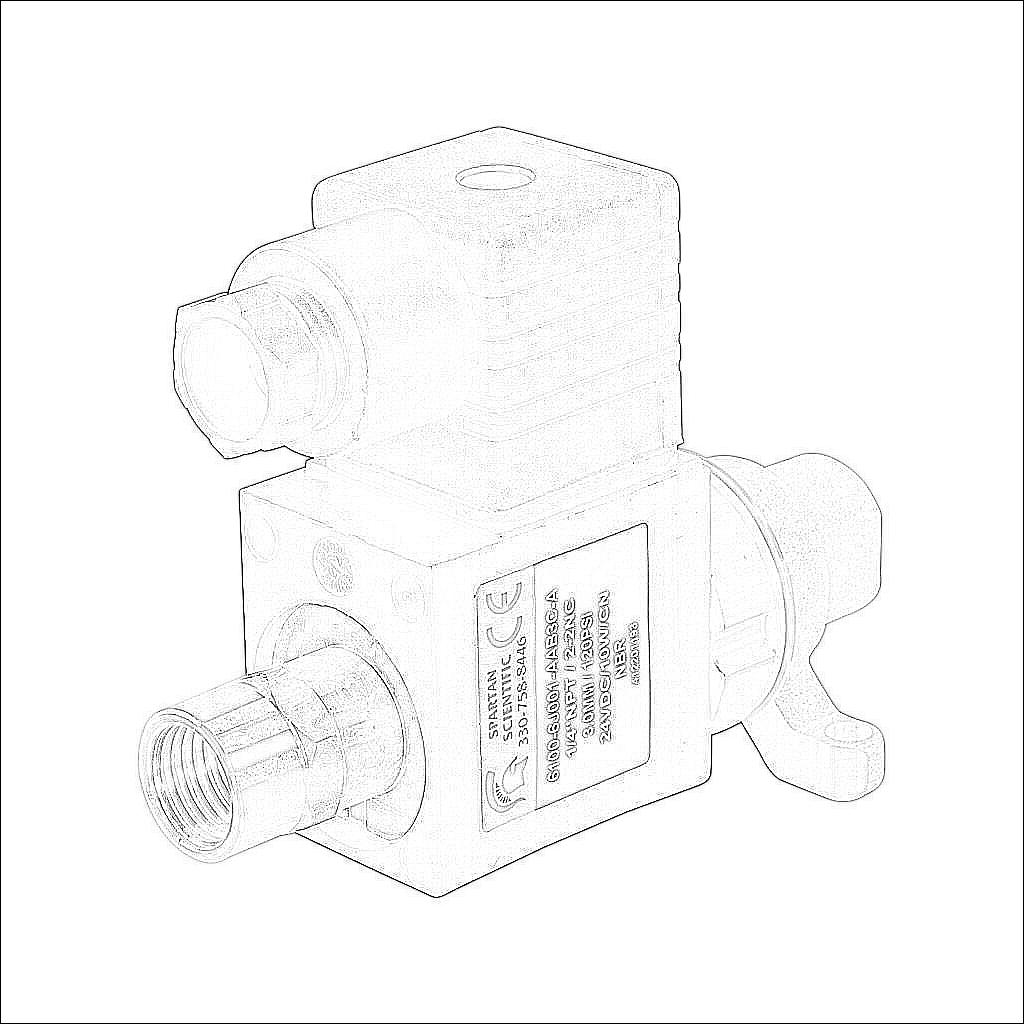

6100-6J001-AAB3C-A

6100-6J001-AAB3C-A

Spartan solenoid valve, 2-way, 2-position, N.C., low lead brass body, 1/4in female NPT inlet(s), 1/4in female NPT outlet(s), Cv=0.31, vacuum minimum operating pressure, 24 VDC operating voltage, 18mm DIN style wiring plug.

$95
/
Technical Data
BrandSpartan
ItemValve
Working FluidPotable water
Valve TypeSolenoid process
Series6100
IP RatingIP65
Port Quantity2-way
Number Of Positions2
Valve ConfigurationN.C.
ActionSingle solenoid spring return
Body MaterialLow lead brass
Inlet Port1/4in female NPT
Outlet Port1/4in female NPT
Flow Coefficient0.31
Maximum Operating Pressure120 psi
Minimum Operating PressureVacuum
Operating Voltage24 VDC
Electrical Connection18mm DIN style wiring plug
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
