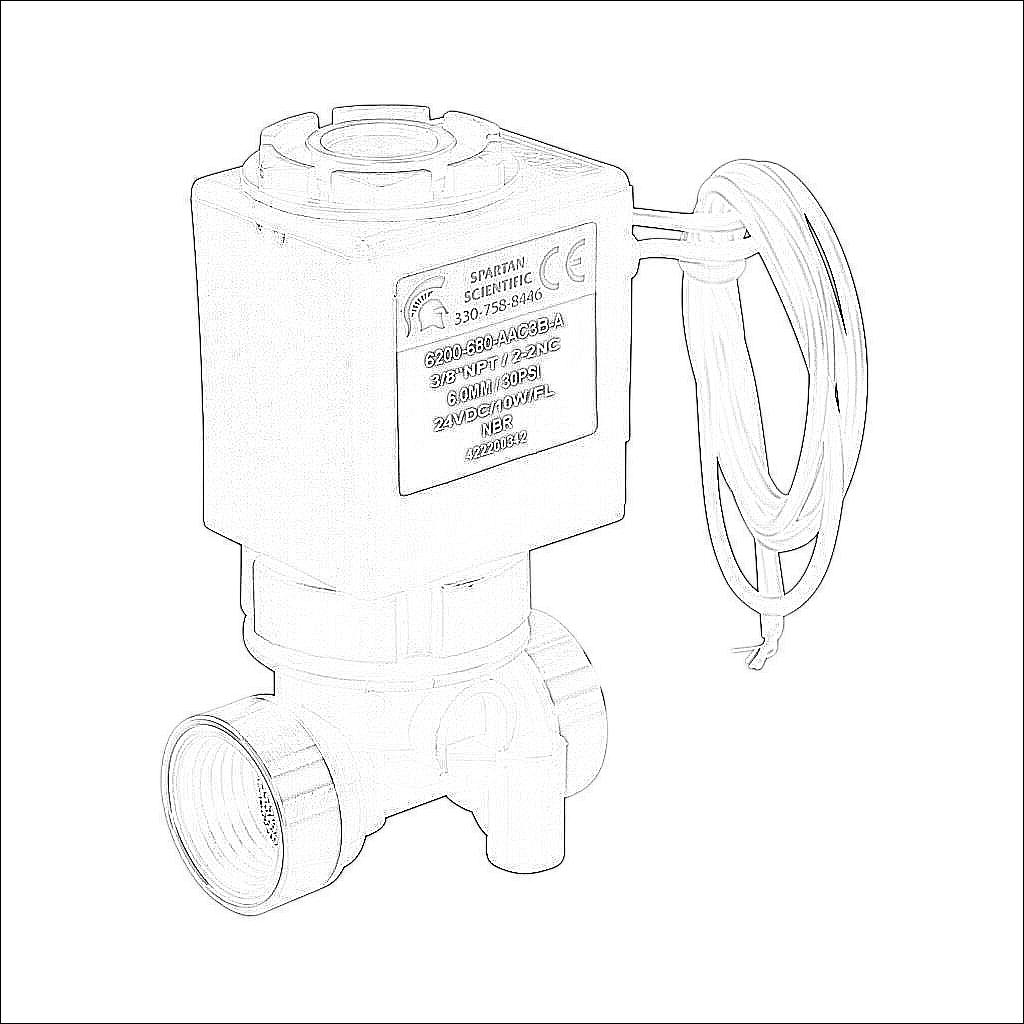

6200-680-AAC3B-A

6200-680-AAC3B-A

Spartan solenoid valve, 2-way, 2-position, N.C., glass-filled nylon body, 3/8in female NPT inlet(s), 3/8in female NPT outlet(s), Cv=0.72, vacuum minimum operating pressure, 24 VDC operating voltage, 18in 22 AWG pigtail.

$67.50
/
Technical Data
BrandSpartan
ItemValve
Working FluidPotable water
Valve TypeSolenoid process
Series6200
IP RatingIP65
Port Quantity2-way
Number Of Positions2
Valve ConfigurationN.C.
ActionSingle solenoid spring return
Body MaterialGlass-filled nylon
Inlet Port3/8in female NPT
Outlet Port3/8in female NPT
Flow Coefficient0.72
Maximum Operating Pressure30 psi
Minimum Operating PressureVacuum
Operating Voltage24 VDC
Electrical Connection18in 22 AWG pigtail
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
