| Technical Data | ||
|---|---|---|
| Brand | WERMA | |

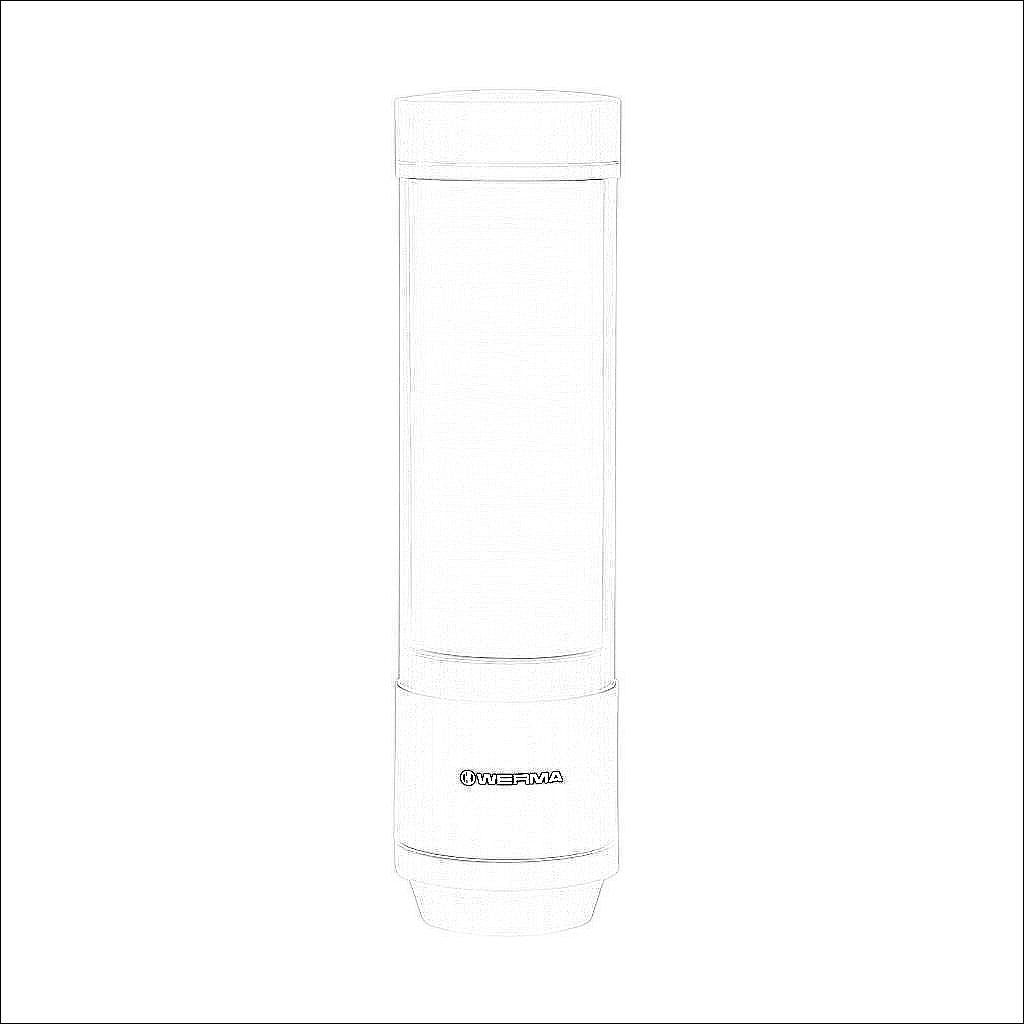

| Item | Signal tower | |
| Bulb Type | LED | |
| Series | ESIGN | |
| Number of Pre-Assembled Tiers | 9 | |
| Diameter | 72mm | |
| Light Color(s) | Custom programmable colors | |
| Light Function | Selectable permanent, blinking, flashing, double flash, triple flash or rotating | |
| Communication Port and Connection Type(s) |
| |
| Port Protocol(s) |
| |
| Port Speed(s) |
| |
| IO-Link Version | IO-Link v1.1 | |
| Standard I/O Mode Supported | Yes | |
| Voltage Rating | 24 VDC | |
| Lens Type | Clear | |
| Body Length | 271mm | |
| Body Color | White | |
| Body Material | Polycarbonate | |
| Tower Viewing Angle | 360 degree | |
| Connector Type | 4-pin M12 A-coded (IO-Link) | |
| Mounting | Base or tube | |
| IP Rating | IP66 and IP69K | |
