7001000600U

7001000600U

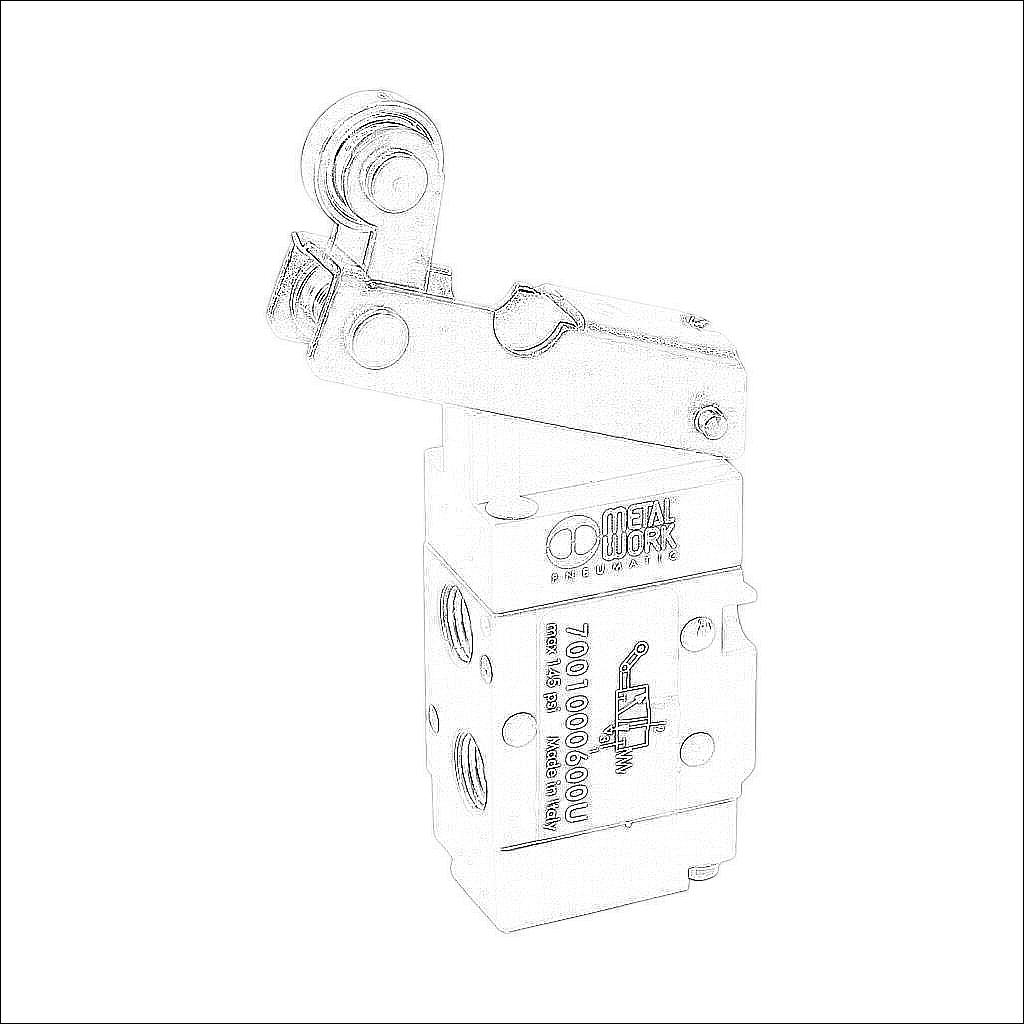

Metal Work Series 70 pneumatic mechanically operated directional control valve, 3-port (3-way), 2-position, N.C., unidirectional roller lever, spring return, 1/8in female NPT inlet(s), 1/8in female NPT outlet(s), 1/8in female NPT exhaust(s), Cv=0.55.

$45.63
/
Technical Data
BrandMetal Work
ItemValve
Working FluidAir
Valve TypeMechanically operated directional control
SeriesSeries 70
Port Quantity3-port (3-way)
Number Of Positions2
Valve ConfigurationN.C.
Operator TypeUnidirectional roller lever
ActionSpring return
Body MaterialAluminum
Body Width22mm
Inlet Port1/8in female NPT
Outlet Port1/8in female NPT
Exhaust Port1/8in female NPT
Flow Coefficient0.55
Maximum Operating Pressure145 psi (10 bar)
Minimum Operating PressureVacuum
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
