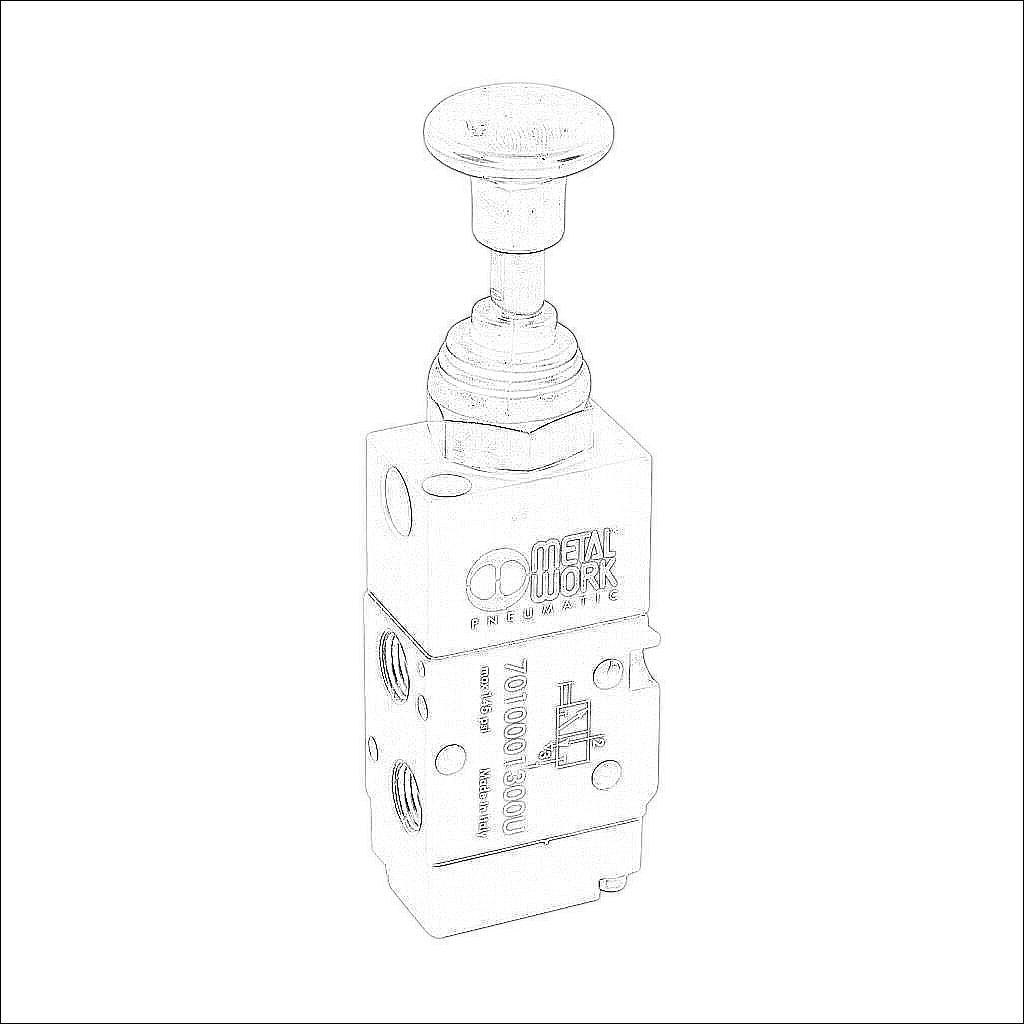

| Technical Data | ||
|---|---|---|
| Brand | Metal Work | |
| Item | Valve | |
| Working Fluid | Air | |
| Valve Type | Manual directional control | |
| Series | Series 70 | |
| Port Quantity | 3-port (3-way) | |
| Number Of Positions | 2 | |
| Operator Type | Push-pull knob | |
| Action | Detented | |
| Body Material | Aluminum | |
| Body Width | 22mm | |
| Inlet Port | 1/8in female NPT | |
| Outlet Port | 1/8in female NPT | |
| Exhaust Port | 1/8in female NPT | |
| Flow Coefficient | 0.55 | |
| Maximum Operating Pressure | 145 psi (10 bar) | |
| Minimum Operating Pressure | Vacuum | |
