7010011100U

7010011100U

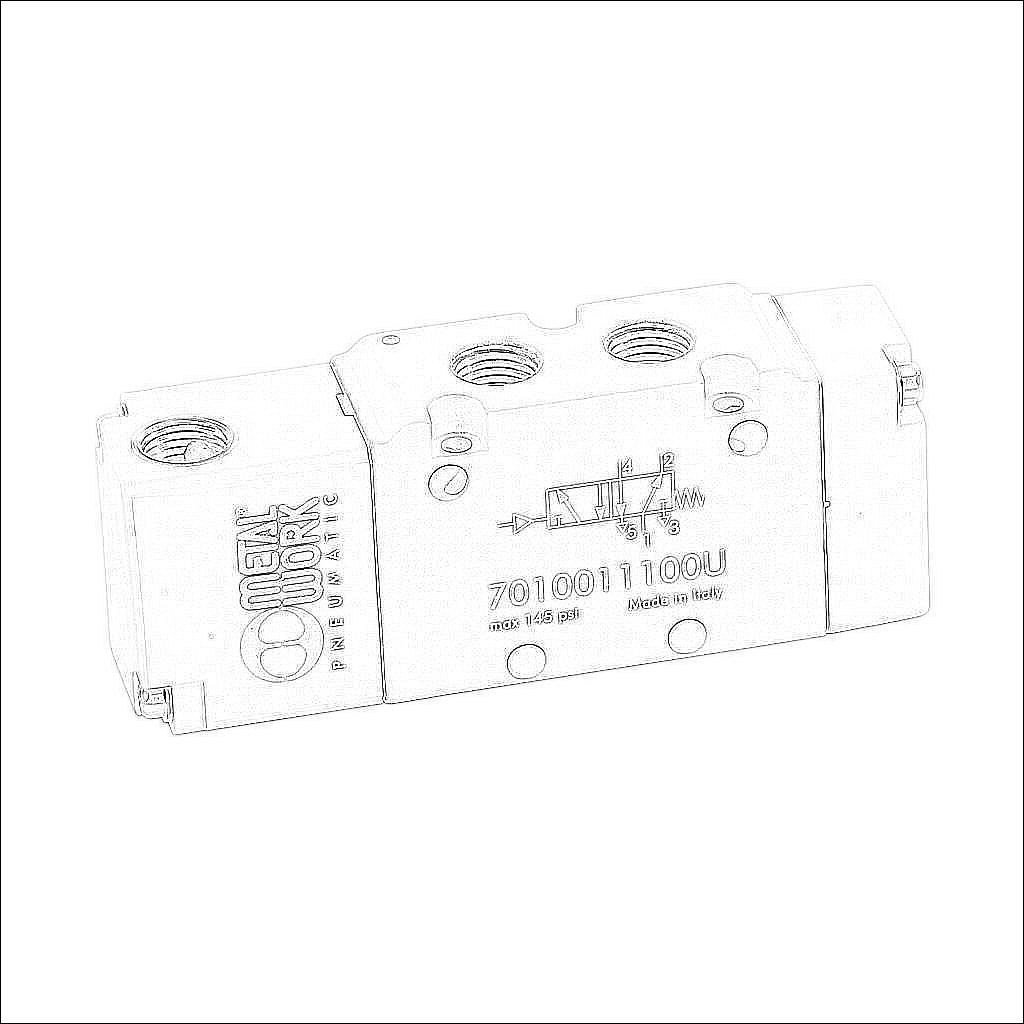

Metal Work pilot valve, 5-port (4-way), 2-position, single air pilot spring return, 1/8in female NPT inlet(s), 1/8in female NPT outlet(s), 1/8in female NPT exhaust(s), 1/8in female NPT pilot(s), Cv=0.55.

$48.75
/
Technical Data
BrandMetal Work
ItemValve
Working FluidPneumatic
Valve TypePilot directional control
SeriesSeries 70
Port Quantity5-port (4-way)
Number Of Positions2
ActionSingle air pilot spring return
Body MaterialAluminum
Body Width22mm
Inlet Port1/8in female NPT
Outlet Port1/8in female NPT
Exhaust Port1/8in female NPT
Pilot Port1/8in female NPT
Flow Coefficient0.55
Maximum Operating Pressure145 psi (10 bar)
Minimum Operating PressureVacuum
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
