| Technical Data | ||
|---|---|---|
| Brand | Metal Work | |

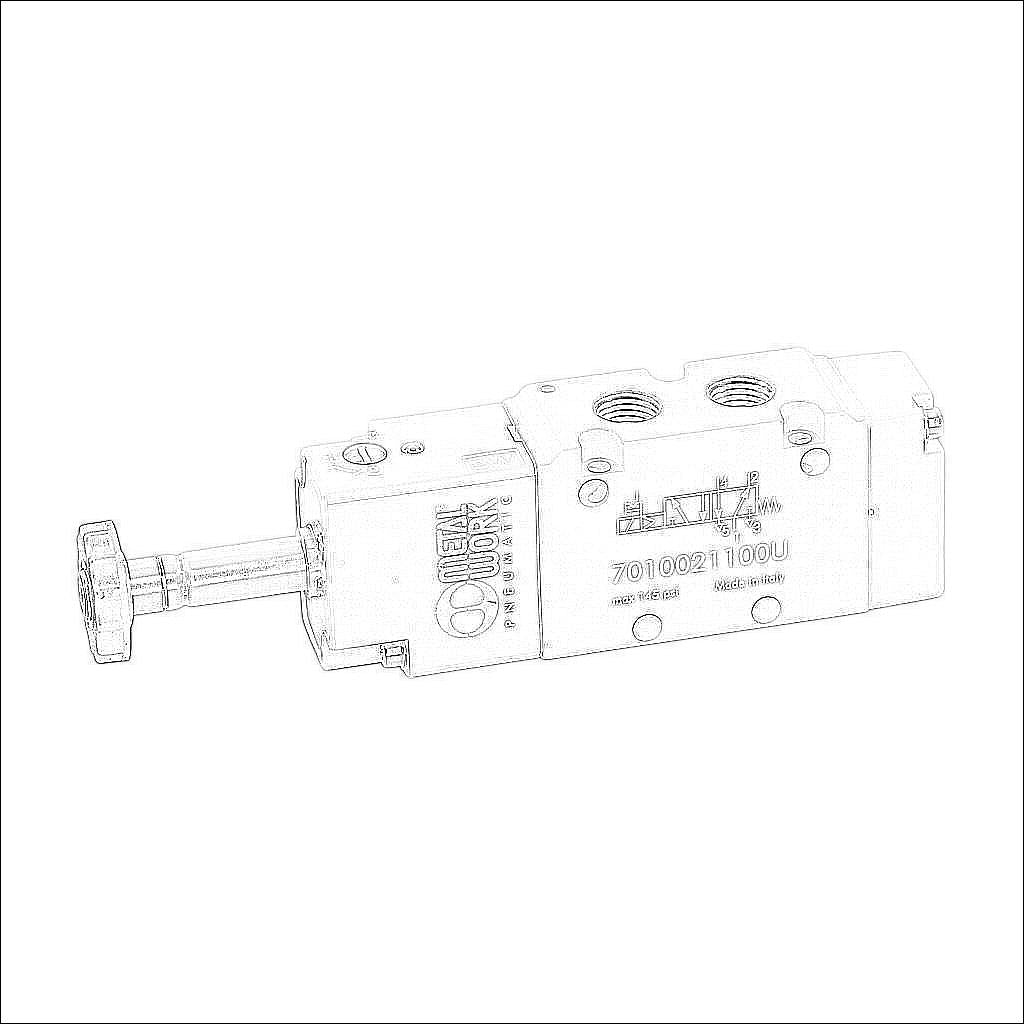

| Item | Valve | |
| Working Fluid | Pneumatic | |
| Valve Type | Solenoid directional control | |
| Port Quantity | 5-port (4-way) | |
| Number Of Positions | 2 | |
| Action | Single solenoid spring return | |
| Body Material | Aluminum | |
| Body Width | 22mm | |
| Inlet Port | 1/8in female NPT | |
| Outlet Port | 1/8in female NPT | |
| Exhaust Port | 1/8in female NPT | |
| Manual Override Type | Locking | |
| Flow Coefficient | 0.55 | |
| Maximum Operating Pressure | 145 psi (10 bar) | |
| Minimum Operating Pressure | 37 psi (2.5 bar) | |
| Additional Information | Purchase solenoid coil in desired voltage separately | |
