| Technical Data | ||
|---|---|---|
| Brand | Minerallac | |

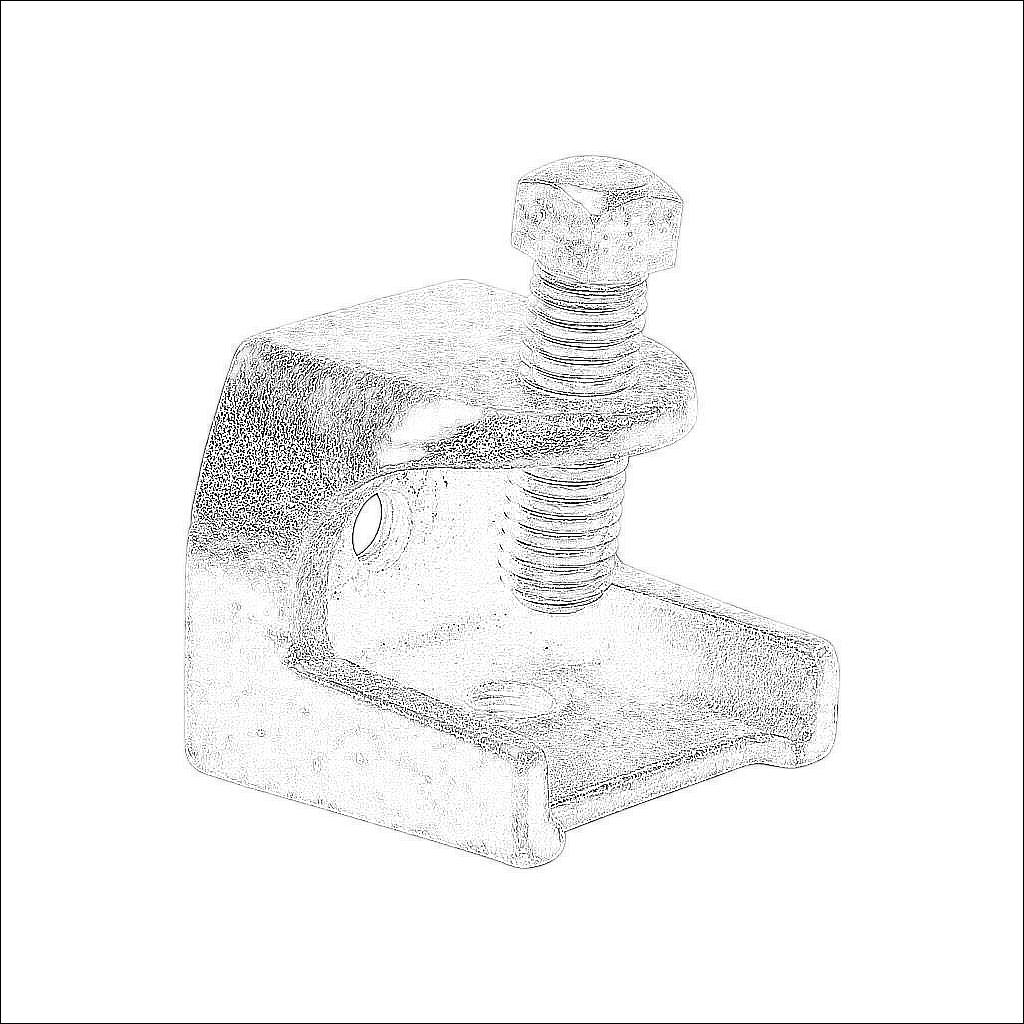

| Item | Clamp | |
| Clamp Type | Beam | |
| Attachment Type | Screw-on | |
| Mounting Holes | 3/8-16 UNC bottom and 3/8-16 UNC back | |
| Load Rating | 750 lbs | |
| Material | Malleable iron | |
| Finish | Zinc plated | |
| Maximum Flange Thickness | 3/4in | |
| Set Screw Size | 1/2in-13 UNC | |
| Tightening Torque | 125 in-lb | |
| Quantity per Pack | 6 | |
| For Use With | Flanges up to 3/4in and 3/8-16 threaded rod | |
