7111

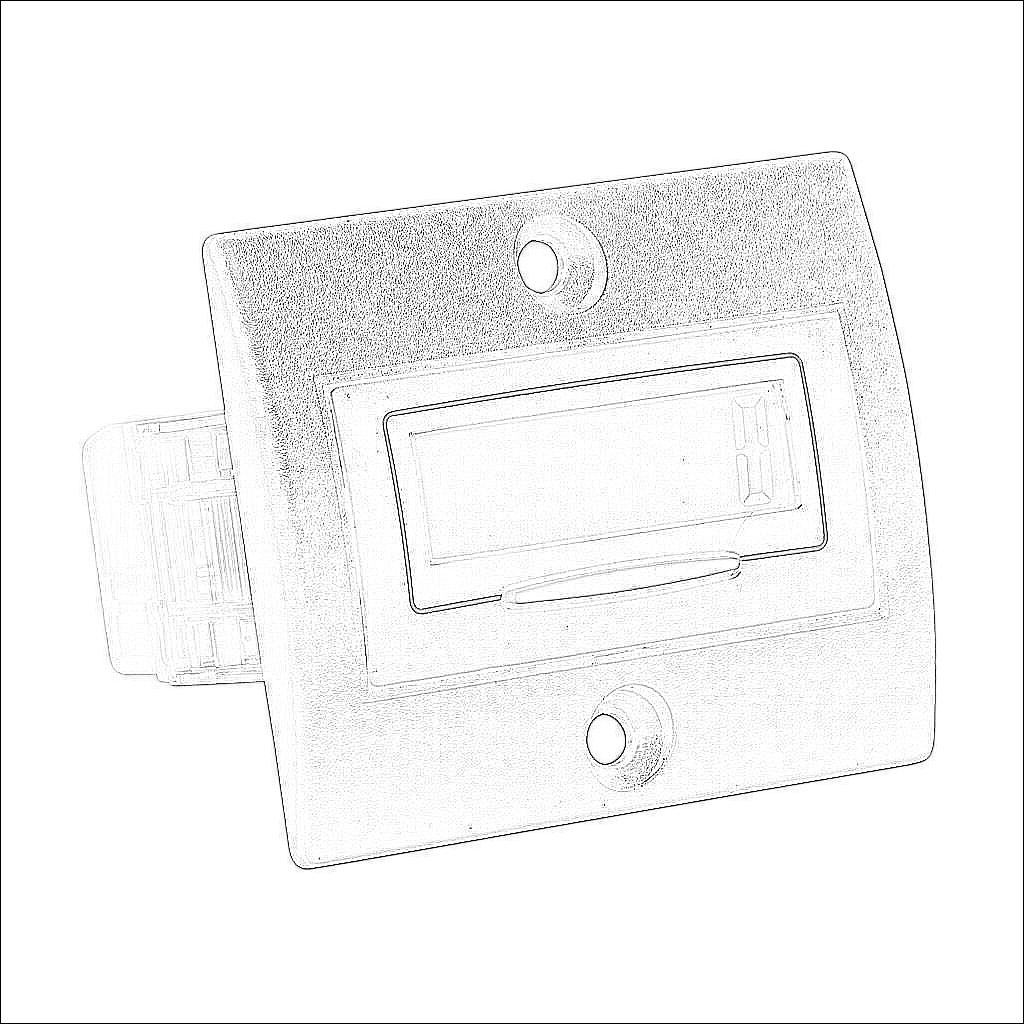

Trumeter electrical counter, 9mm 8-digit LCD, discrete input, remote, manual or disabled reset, rectangular flush mount with clip, screw terminals.

$51.25

		Technical Data
	Brand	Trumeter
	Item	Counter
	Counter Type	Electrical
	Count Direction	Up/down
	Count Speed	30Hz and 10kHz
	Display Type	LCD
	Display Size	9mm 8-digit
	Reset	Remote, manual or disabled
	Input Signal	Discrete
	Mounting	Panel
	Mounting Type	Rectangular flush mount with clip
	Mounting Hole Size	1/32 DIN
	Connector Type	Screw terminals
	Includes	NEMA 4X gasket
	Additional Information	5-30 VDC externally powered backlight, requires separate resistor above 5 VDC
	Dangerous Goods	Battery Installed: Yes Packaging Instructions: 970 UN Number: UN3091 Hazard Type: Lithium Battery Battery Type: Other Generic Battery: CR2477

Downloads

Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
