| Technical Data | ||
|---|---|---|
| Brand | GAM | |

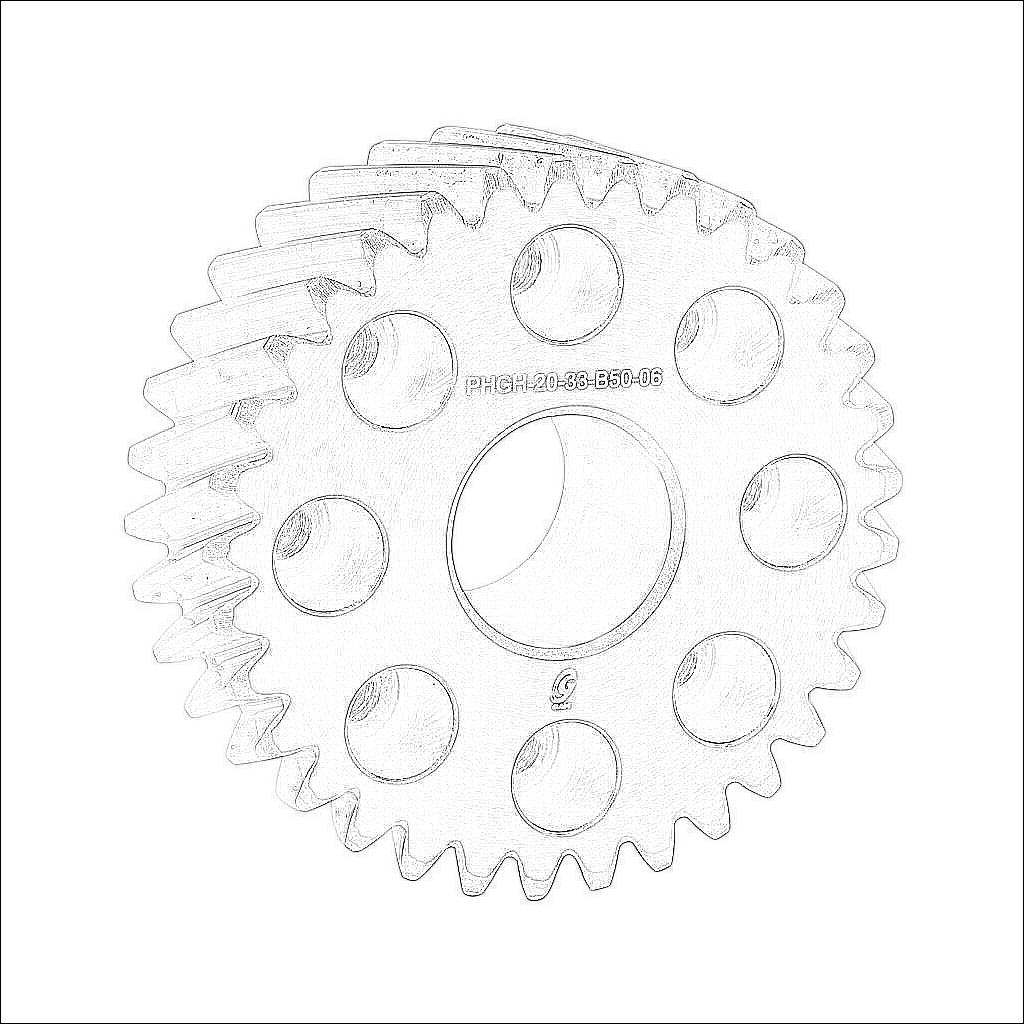

| Item | Pinion | |
| Tooth Profile | Helical | |
| Pressure Angle | 20 degrees | |
| Module | 2 | |
| Pitch Diameter | 70.028mm | |
| Number of Teeth | 33 | |
| Travel per Rotation | 220mm | |
| Maximum Force Feed | 18.4 kN | |
| Mounting | Bolt-through | |
| Mounting Distance | 57.8mm | |
| Material | 4140 carbon steel | |
| Hardness | 55 - 60 HRC | |
| Finish | Ra 0.8 | |
| Precision Grade | ISO Q06 | |
| For Use With | SureGear PGD090 series gearboxes | |
