852-1322

852-1322

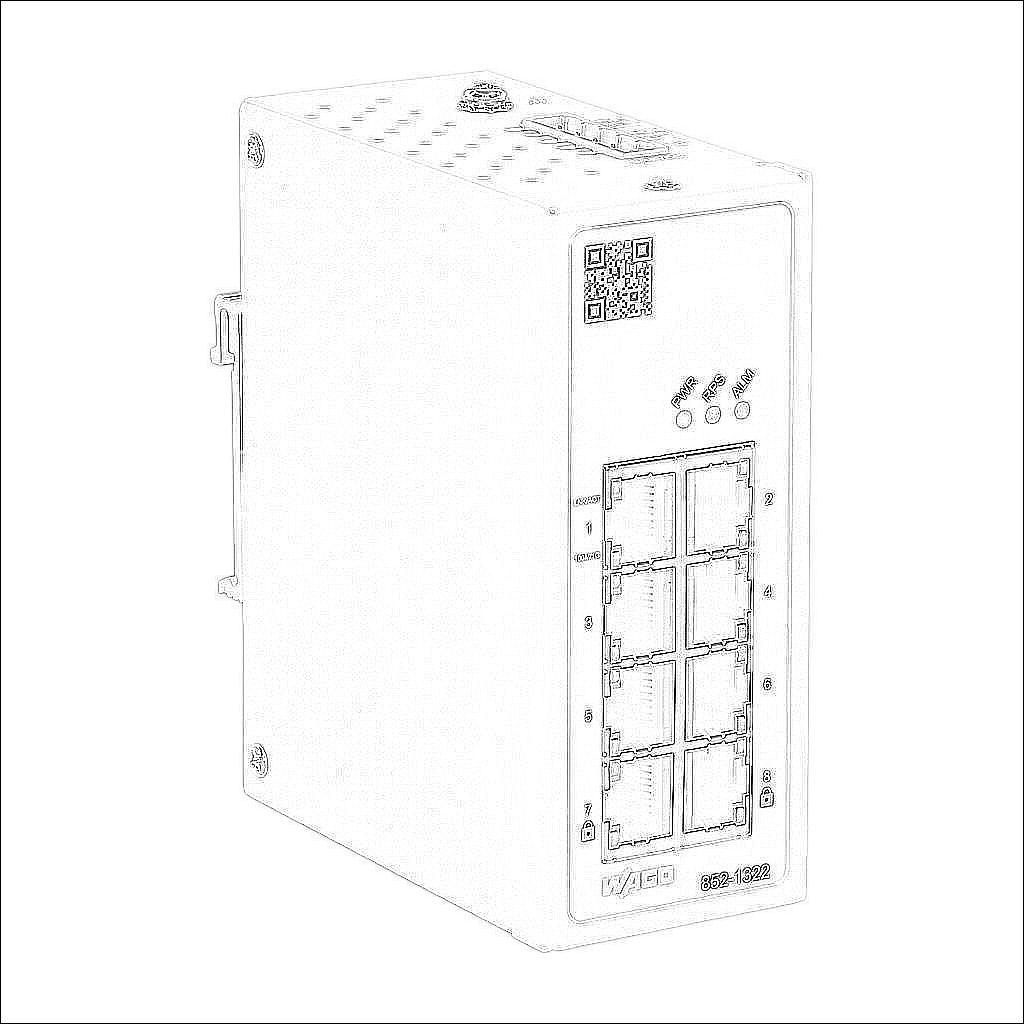

WAGO industrial lean managed Ethernet switch, MAC Security, 8 ports, (8) Ethernet Gigabit (RJ45) port(s), Modbus TCP and SNMP, -20 to +70 deg C, metal housing, IP30, 35mm DIN rail mount.

$1,227.50
/
Technical Data
BrandWAGO
ItemEthernet switch
GradeIndustrial
Switch TypeLean managed
Number of Ports8
Communication Port and Connection Type(s)
  • (8) Ethernet Gigabit (RJ45)
Communication Standard(s)
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX/FX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3x Flow Control
  • IEEE 802.1p QoS/CoS
  • IEEE 802.1x Port Authentication
  • IEEE 802.1q VLAN Tagging
  • IEEE 802.1AE MAC Security
Port Protocol(s)
  • Modbus TCP
  • SNMP
  • webserver (secure HTTPs)
Port Speed(s)
  • 10/100/1000 Mbps auto-detect
Redundant Input PowerYes
Nominal Input Voltage9-48 VDC
Operating Temperature-20 to +70 deg C
Housing MaterialMetal
IP RatingIP30
Mounting35mm DIN rail
Programming SoftwareNone, configure via Internet browser
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
