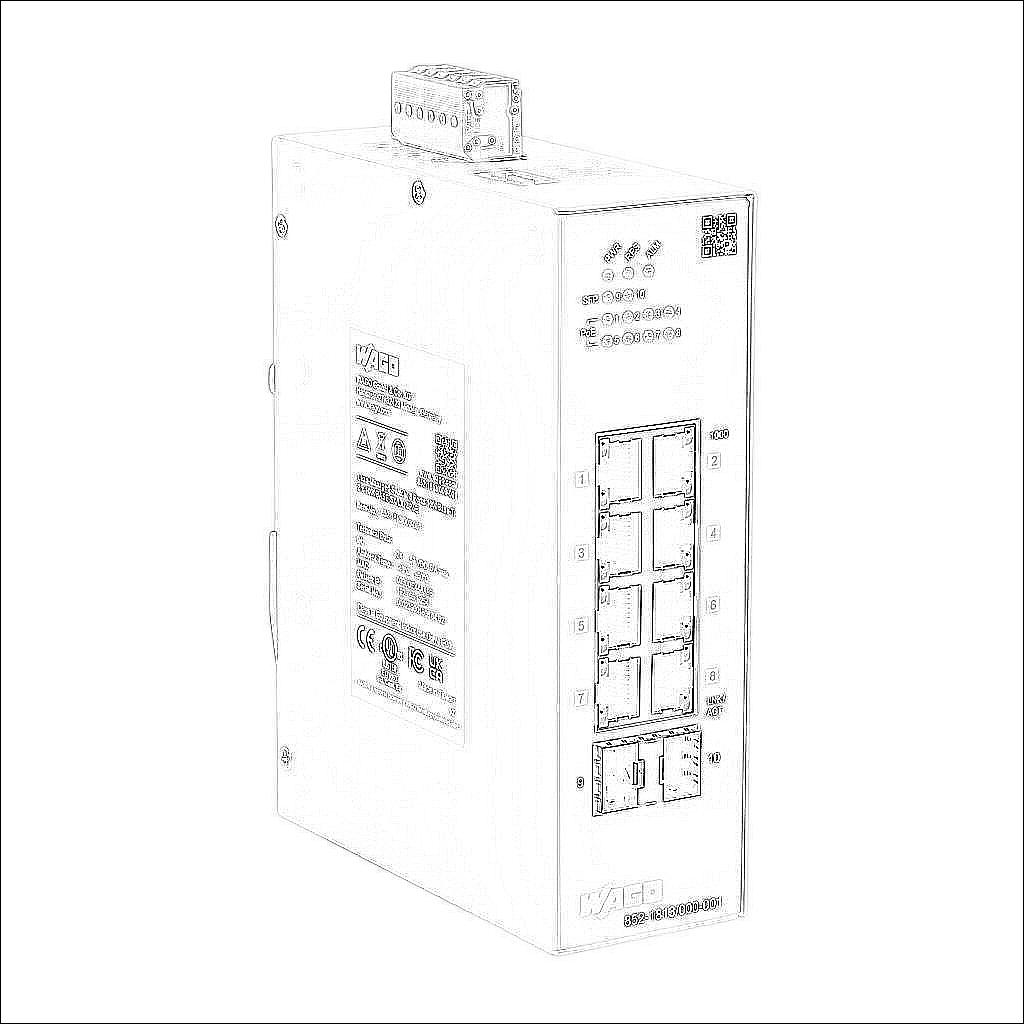

852-1813/000-001

852-1813/000-001

WAGO industrial lean managed PoE+ switch, IEEE 802.3af/at, 120W @ 24-48 VDC, 240W @ 48-57 VDC, 8 ports, (8) PoE+ 10/100/1000Base-T (RJ45) and (2) SFP combo Gigabit port(s), Modbus TCP and SNMP, 24-57 VDC nominal input, -40 to +60 deg C, 35mm DIN rail mount.

$1,538.75
/
Technical Data
BrandWAGO
ItemPoE+ switch
GradeIndustrial
Switch TypeLean managed
PoE StandardIEEE 802.3af/at
Maximum PoE Output Power120W @ 24-48 VDC, 240W @ 48-57 VDC
Maximum PoE Output Power per Port30W
Number of Ports8
Communication Port and Connection Type(s)
  • (8) PoE+ 10/100/1000Base-T (RJ45)
  • (2) SFP combo Gigabit
Communication Standard(s)
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX/FX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3x Flow Control
  • IEEE 802.1d Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1q VLAN Tagging
  • IEEE 802.1p QoS/CoS
  • IEEE 802.1x Port Authentication
  • IEEE 802.1ab Link Layer Discovery Protocol (LLDP)
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • ITU-T G8032v1/v2 Ethernet Ring Protection Switching (ERPS)
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE+
Port Protocol(s)
  • Modbus TCP
  • SNMP
  • webserver (secure HTTPs)
Port Speed(s)
  • 10/100/1000 Mbps auto-detect
Redundant Input PowerYes
Nominal Input Voltage24-57 VDC
Number of Output Points1
Nominal Output Voltage24 VDC
Relay Configuration(1) Form A (SPST) relay
Number of Points per Common1
Load Current1A/point
Operating Temperature-40 to +60 deg C
Housing MaterialMetal
IP RatingIP30
Mounting35mm DIN rail
Additional InformationOptional SFP modules sold separately
Programming SoftwareCommand Line Interface (CLI), Internet browser
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
