852-1816

852-1816

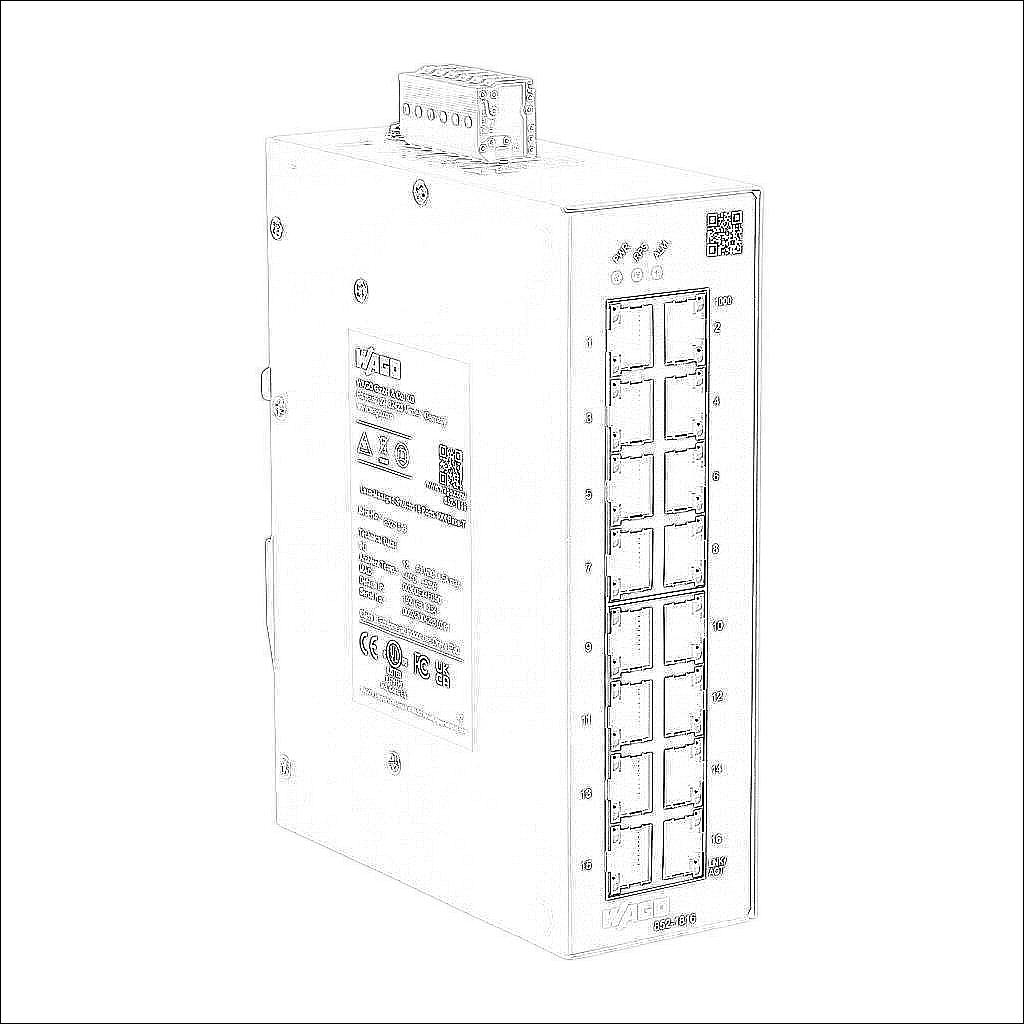

WAGO industrial lean managed Ethernet switch, 16 ports, (16) Ethernet Gigabit (RJ45) port(s), Modbus TCP and SNMP, -40 to +60 deg C, metal housing, IP30, 35mm DIN rail mount.

$1,475
/
Technical Data
BrandWAGO
ItemEthernet switch
GradeIndustrial
Switch TypeLean managed
Number of Ports16
Communication Port and Connection Type(s)
  • (16) Ethernet Gigabit (RJ45)
Communication Standard(s)
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX/FX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3x Flow Control
  • IEEE 802.1d Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1q VLAN Tagging
  • IEEE 802.1p QoS/CoS
  • IEEE 802.1x Port Authentication
  • IEEE 802.1ab Link Layer Discovery Protocol (LLDP)
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • ITU-T G8032v1/v2 Ethernet Ring Protection Switching (ERPS)
Port Protocol(s)
  • Modbus TCP
  • SNMP
  • webserver (secure HTTPs)
Port Speed(s)
  • 10/100/1000 Mbps auto-detect
Redundant Input PowerYes
Nominal Input Voltage12-60 VDC
Number of Output Points1
Nominal Output Voltage24 VDC
Relay Configuration(1) Form A (SPST) relay
Number of Points per Common1
Load Current1A/point
Operating Temperature-40 to +60 deg C
Housing MaterialMetal
IP RatingIP30
Mounting35mm DIN rail
Programming SoftwareCommand Line Interface (CLI), Internet browser
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
