9260-23-11-10S

9260-23-11-10S

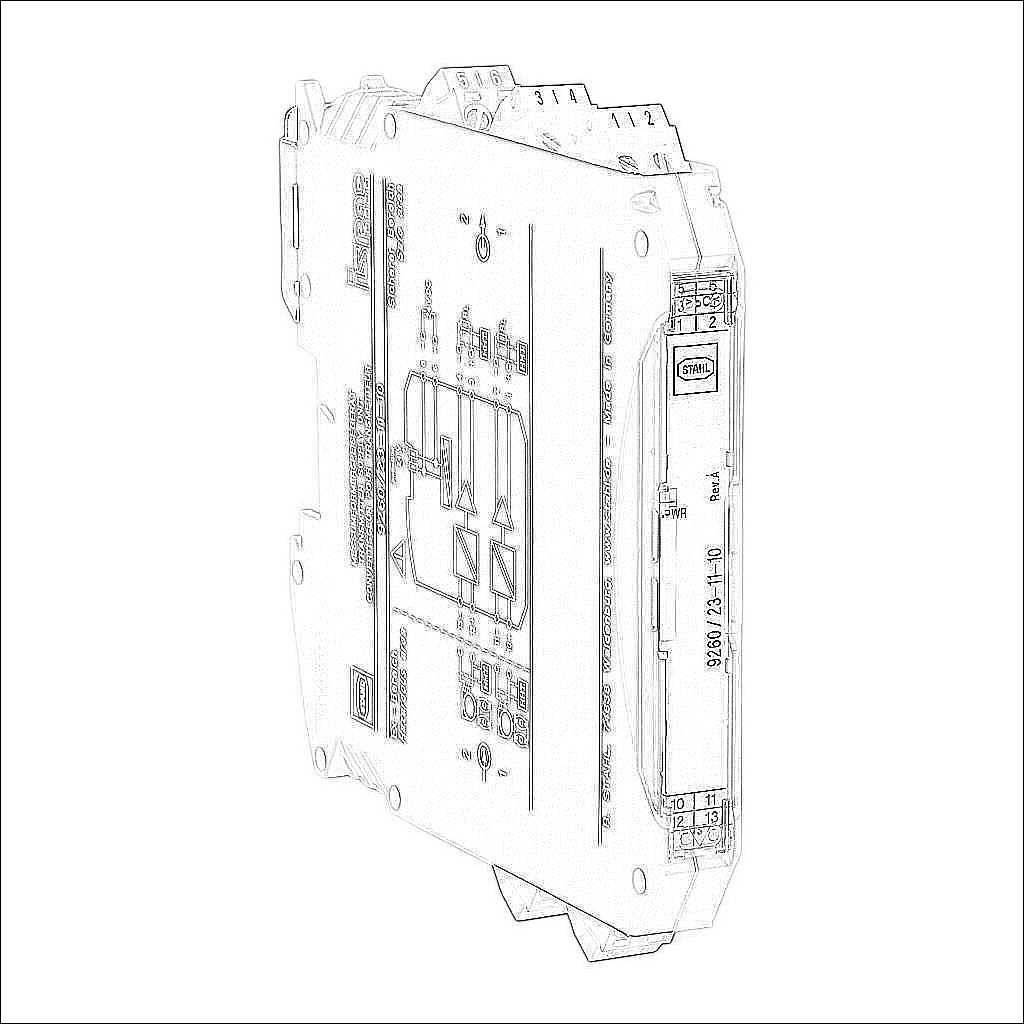

STAHL ISpac intrinsically safe analog input isolator, (2) 0-20 mA or (2) 4-20 mA input, (2) 0-20 mA and (2) 4-20 mA output, 24 VDC operating voltage, screw terminals.

$967.50
/
Technical Data
BrandSTAHL
SeriesISpac
ItemIsolator
Isolator TypeAnalog input
Intrinsically SafeYes
Input(2) 0-20 mA or (2) 4-20 mA
Output(2) 0-20 mA and (2) 4-20 mA
Maximum Voltage25.2 VDC
Maximum Current93 mA
Maximum Power587 mW
Operating Voltage24 VDC
Housing MaterialPolyamide
Mounting35mm DIN rail
ConnectionScrew terminals
ApplicationHazardous location rated
Manufacturer Part Number9260/23-11-10s
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
