| Technical Data | ||
|---|---|---|
| Brand | STAHL | |
| Series | ISpac | |

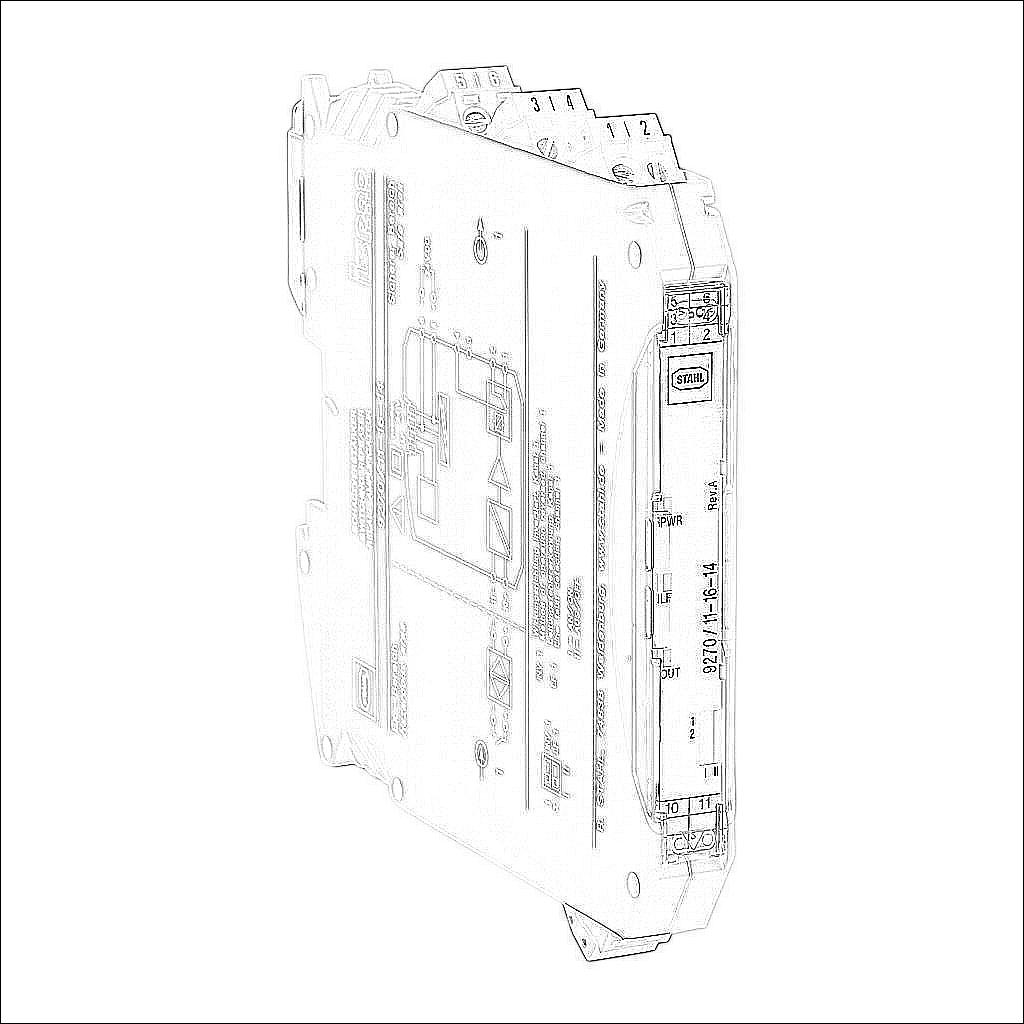

| Item | Isolator | |
| Isolator Type | Digital input | |
| Intrinsically Safe | Yes | |
| Input | NAMUR sensor or dry contact | |
| Output | SPDT relay | |
| Maximum Voltage | 9.6 VDC | |
| Maximum Current | 10 mA | |
| Maximum Power | 25 mW | |
| Operating Voltage | 24 VDC | |
| Housing Material | Polyamide | |
| Mounting | 35mm DIN rail | |
| Connection | Screw terminals | |
| Application | Hazardous location rated | |
| Manufacturer Part Number | 9270/11-16-14s | |
