| Technical Data | ||
|---|---|---|

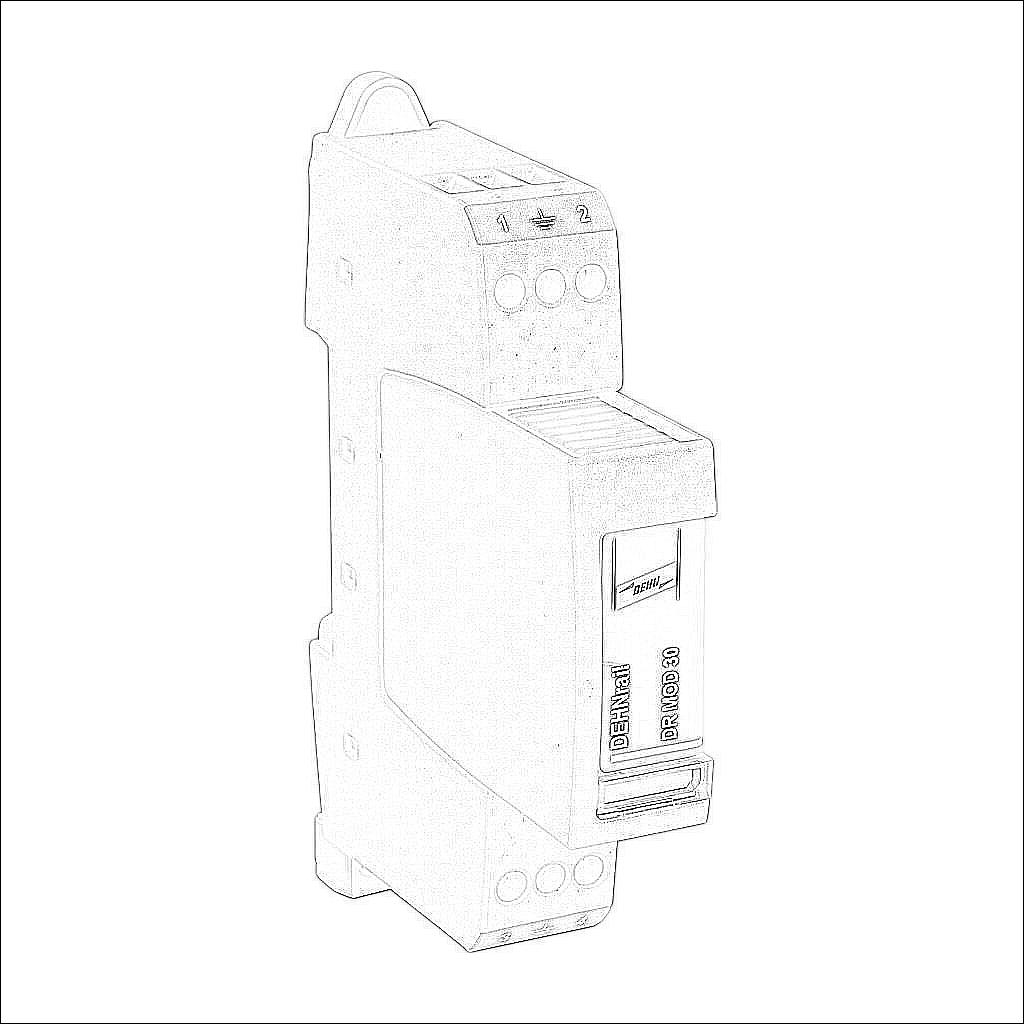

| Brand | Dehn | |
| Item | Surge Protective Device (SPD) | |
| Series | DR-M-2P | |
| Surge Protection Type | Supplemental power & controls protection | |
| UL Type | UL Type 4 component assembly | |
| Circuit Type | Series or parallel circuit | |
| System Voltage | 24VAC/VDC 1-Phase | |
| Nominal Discharge Current | 1 kA | |
| Voltage Protection Rating (VPR) | 180V (L-N), 630V (L-G) | |
| Indicating Type | Red/green indicating flag | |
| UL Rating | UL 1449 rated | |
| Mounting | 35mm DIN rail | |
| Connection | Screw terminal | |
| Includes | (1) SPDT health status contact | |
