| Technical Data | ||
|---|---|---|
| Brand | LS Electric | |

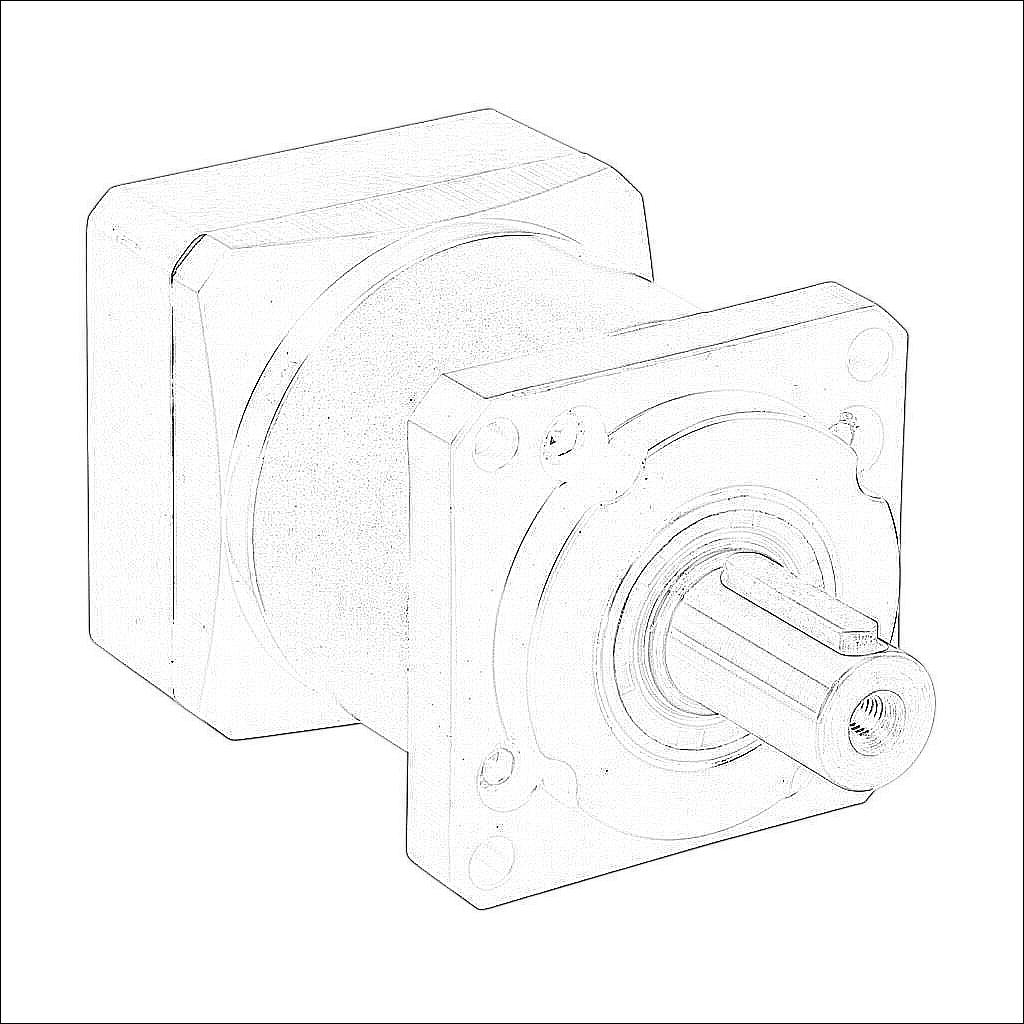

| Item | Gearbox | |
| Application | High-precision | |
| Gearbox Type | Planetary | |
| Gear Ratio | 5:1 | |
| Output Configuration | Inline | |
| Gearbox Output Shaft Diameter | 16mm | |
| Nominal Output Torque | Nominal output torque 54 N-m (478 lb-in) | |
| Number of Stages | 1 | |
| Frame | 60mm | |
| For Use With | FBL series 100W, 200W and 400W motors | |
| Includes | Input adapter bushing, motor mounting hardware and output shaft key | |
| Manufacturer Part Number | MSS0601A-005KS-B3110103C14 | |
