| Technical Data | ||
|---|---|---|
| Brand | LS Electric | |

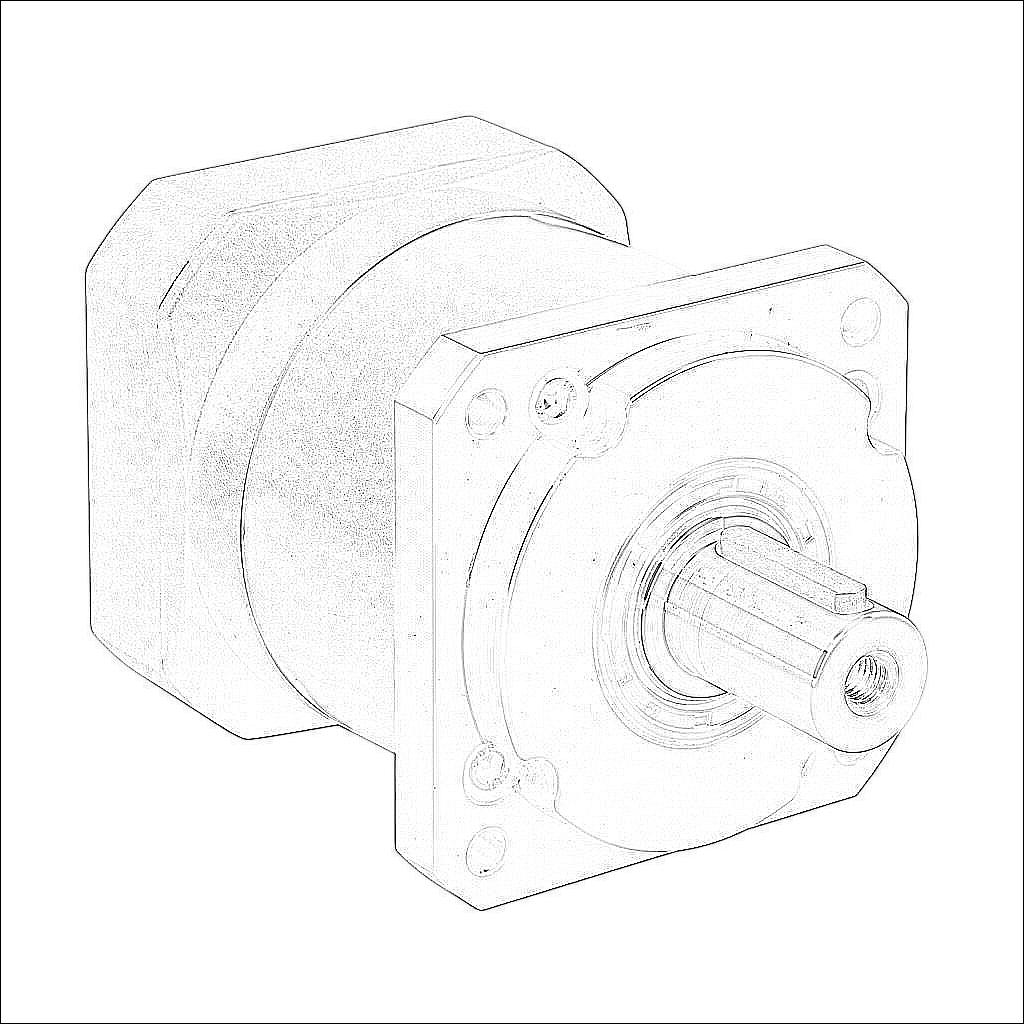

| Item | Gearbox | |
| Application | High-precision | |
| Gearbox Type | Planetary | |
| Gear Ratio | 10:1 | |
| Output Configuration | Inline | |
| Gearbox Output Shaft Diameter | 22mm | |
| Nominal Output Torque | Nominal output torque 121 N-m (1071 lb-in) | |
| Number of Stages | 1 | |
| Frame | 90mm | |
| For Use With | FCL series 750W and 1 kW motors | |
| Includes | Input adapter bushing, motor mounting hardware and output shaft key | |
| Manufacturer Part Number | MSS0901A-010KS-C3110103C19 | |
