| Technical Data | ||
|---|---|---|
| Brand | Sung-Il Machinery | |

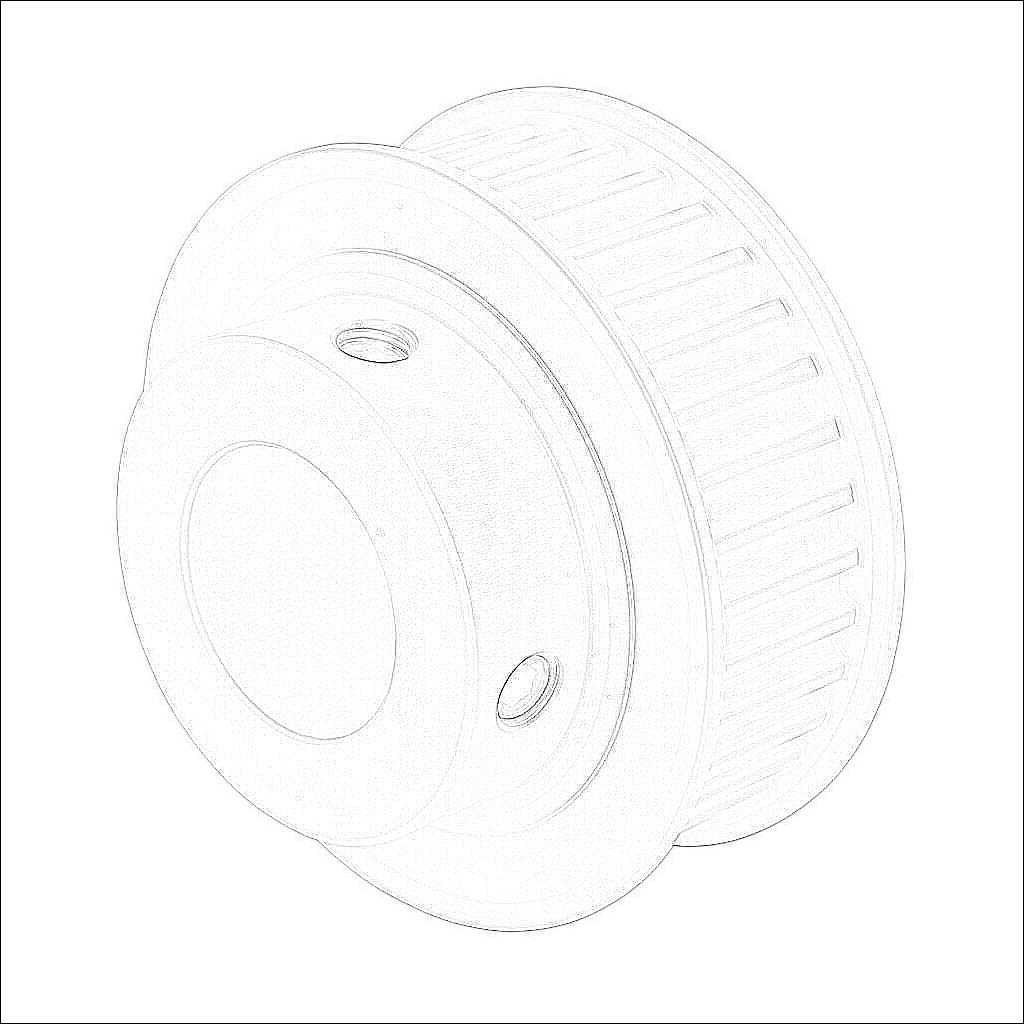

| Item | Timing pulley | |
| Material | Aluminum | |
| Pitch | 5mm 5M | |
| Number of Teeth | 36 | |
| Pitch Diameter | 2.256in | |
| Bore Diameter | 7/8in | |
| Maximum Allowable Bore | 1-1/8in | |
| Pulley Type | Hub with flanges | |
| Mounting Type | Smooth bore with set screws | |
| For Use With | 15mm wide belt | |
