A41H-0200-HZCP6-AL2

A41H-0200-HZCP6-AL2

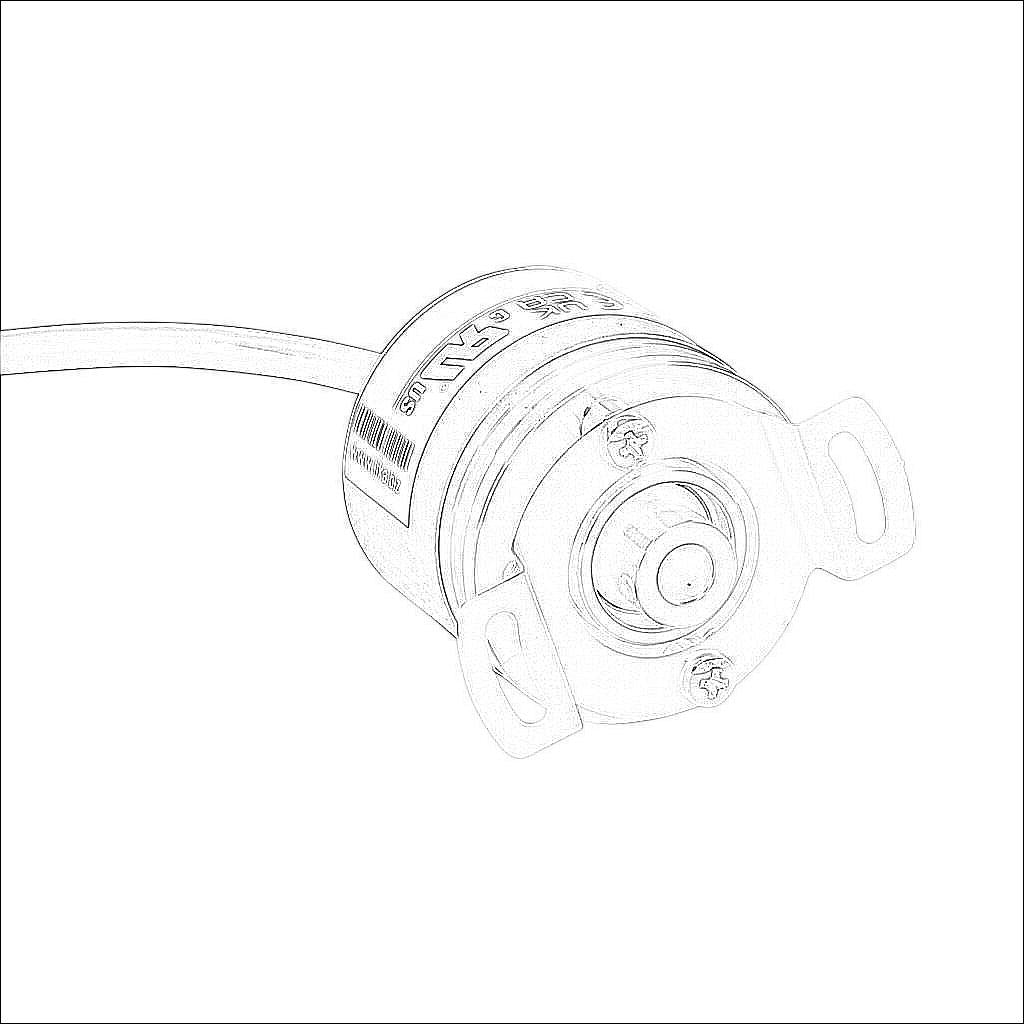

Lika Electronic A41 series incremental (quadrature) rotary encoder, 5-30 VDC, universal (line driver or NPN/PNP open collector) output, light duty, 200 ppr, 1/4in hollow shaft, 41mm diameter body, IP64, 6.5ft/2m cable length, axial exit, pigtail.

$133.75
/
Technical Data
BrandLika Electronic
ItemEncoder
SeriesA41
Feedback TypeIncremental (quadrature)
Encoder TypeRotary
Voltage Rating5-30 VDC
Encoder Output TypeUniversal (line driver or NPN/PNP open collector)
Duty RatingLight duty
Programmable Encoder ResolutionNo
Encoder Resolution200 ppr
Shaft TypeHollow
Shaft Diameter1/4in
Radial Shaft Load20N
Axial Shaft Load20N
Frequency Response100 kHz
Speed Rating6000rpm
Flange MountNo
Encoder Body Diameter41mm
Housing MaterialFiberglass reinforced plastic
IP RatingIP64
Protection Type(s)
  • short circuit (between each output and common)
  • reverse polarity
Cable Length6.5ft/2m
Cable Diameter Size5mm
Wire Size24 AWG
Exit OrientationAxial
Connector TypePigtail
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
