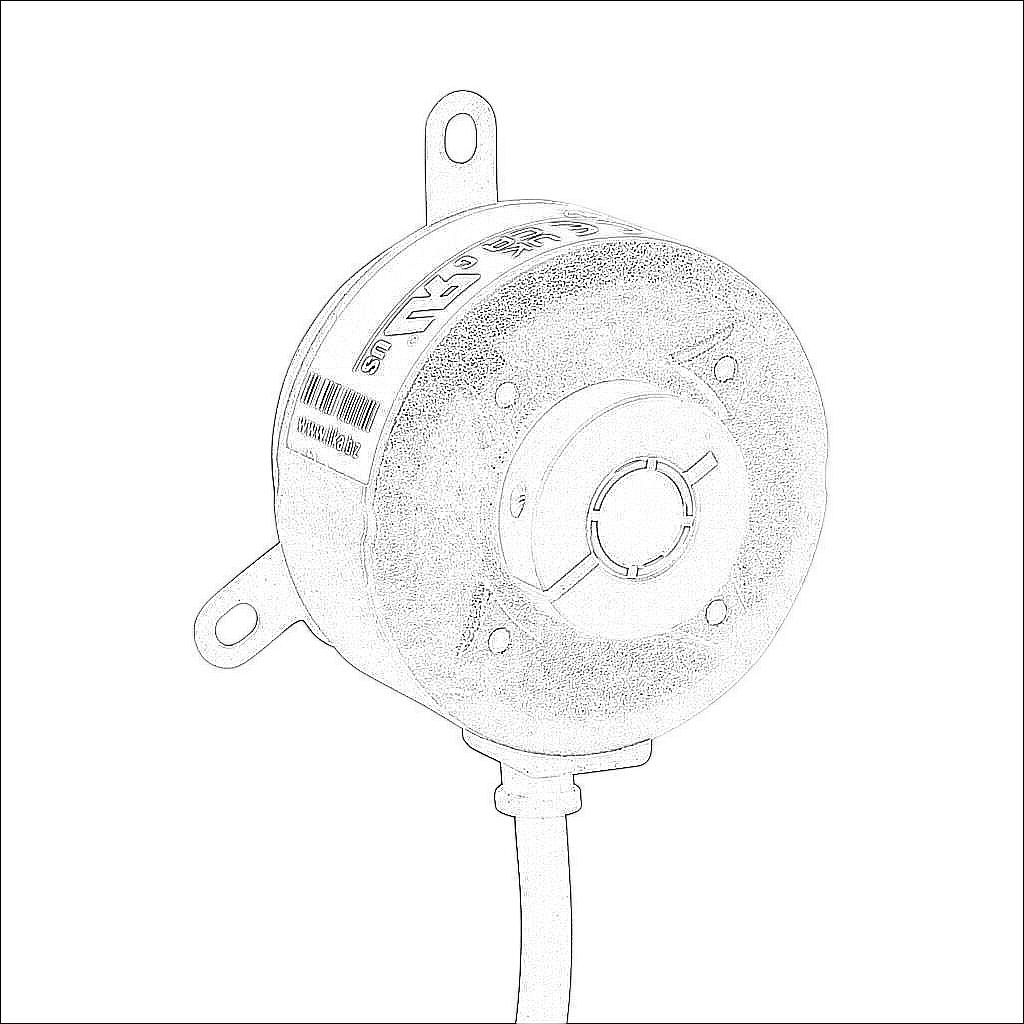

A50H-1000-HZCP9-RL2

A50H-1000-HZCP9-RL2

Lika Electronic A50 series incremental (quadrature) rotary encoder, 5-30 VDC, universal (line driver or NPN/PNP open collector) output, medium duty, 1000 ppr, 3/8in hollow shaft, 50mm diameter body, IP65, 6.5ft/2m cable length, radial exit, pigtail.

$145
/
Technical Data
BrandLika Electronic
ItemEncoder
SeriesA50
Feedback TypeIncremental (quadrature)
Encoder TypeRotary
Voltage Rating5-30 VDC
Encoder Output TypeUniversal (line driver or NPN/PNP open collector)
Duty RatingMedium duty
Programmable Encoder ResolutionNo
Encoder Resolution1000 ppr
Shaft TypeHollow
Shaft Diameter3/8in
Radial Shaft Load20N
Axial Shaft Load20N
Frequency Response100 kHz
Speed Rating6000rpm
Flange MountNo
Encoder Body Diameter50mm
Housing MaterialAluminum alloy
IP RatingIP65
Protection Type(s)
  • short circuit (between each output and common)
  • reverse polarity
Cable Length6.5ft/2m
Cable Diameter Size5mm
Wire Size24 AWG
Exit OrientationRadial
Connector TypePigtail
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
