| Technical Data | ||
|---|---|---|
| Brand | IronHorse | |

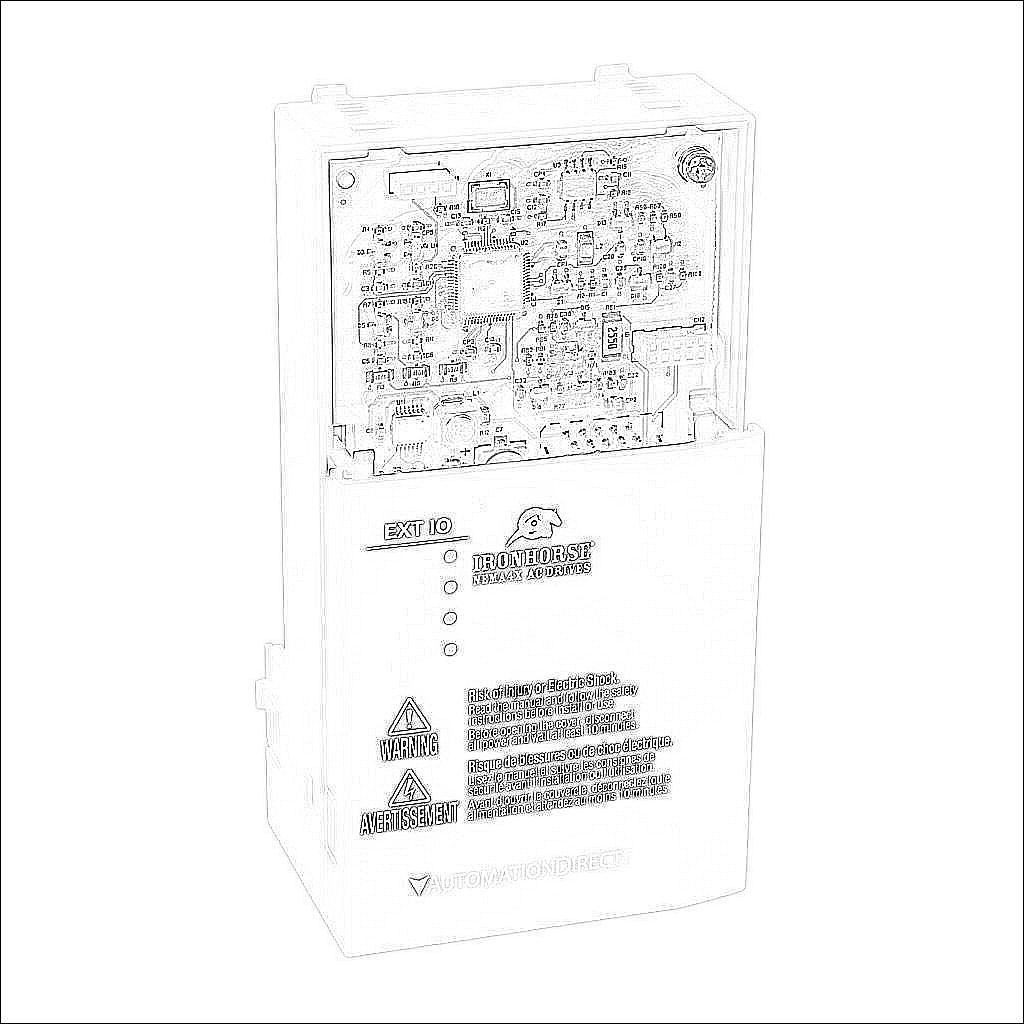

| Item | Combo module | |
| I/O Module Type | Relay/analog | |
| Series | ACN | |
| Number of Analog Input Channels | 2 | |
| Analog Input Signal Type | Current/voltage | |
| Analog Input Type | Sinking and sourcing | |
| Number of Non-Isolated Analog Input Commons | 1 | |
| Number of Points per Analog Input Common | 2 | |
| Input Resolution | 10-bit | |
| Input Current Signal Range | 4-20 mA | |
| Input Voltage Signal Range | 0-10 VDC and +/- 10 VDC | |
| Number of Analog Output Channels | 1 | |
| Analog Output Signal Type | Current/voltage | |
| Number of Isolated Analog Output Commons | 1 | |
| Number of Points per Analog Output Common | 1 | |
| Output Resolution | 10-bit | |
| Output Current Signal Range | 0-20 mA and 4-20 mA | |
| Output Voltage Signal Range | 0-10 VDC | |
| Number of Discrete Input Points | 3 | |
| Nominal Input Voltage | 24 VDC | |
| Discrete Input Type | Sinking/sourcing | |
| Number of Non-Isolated Discrete Input Commons | 1 | |
| Number of Points per Discrete Input Common | 3 | |
| Number of Discrete Output Points | 2 | |
| Nominal Output Voltage | 250 VAC/30 VDC | |
| Discrete Output Type | Relay | |
| Relay Configuration | (2) Form C (SPDT) relays | |
| Number of Non-Isolated Discrete Output Commons | 1 | |
| Number of Points per Discrete Output Common | 2 | |
| Load Current | 1A/point max | |
| Fuse Type | User-supplied external fuse | |
| External Power Requirement | 12-24 VDC | |
| For Use With | IronHorse ACN series drives | |
| Includes | Mounting hardware | |
