| Technical Data | ||
|---|---|---|

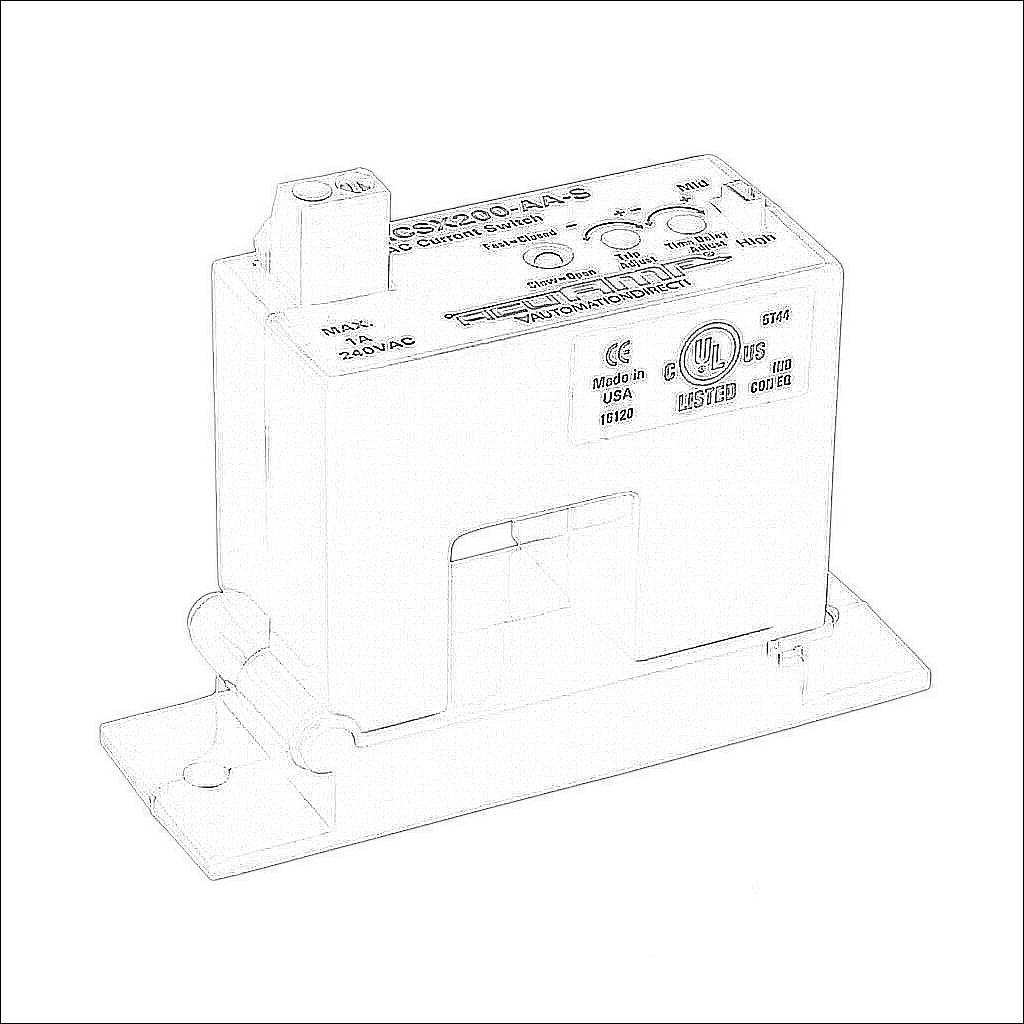

| Brand | AcuAMP | |
| Item | Current switch | |
| Voltage Type | AC | |
| Body Type | Split core | |
| Sensing Range | 2-12, 12-55, or 55-200A selectable | |
| True RMS | No | |
| Trip Point | 2-200A adjustable | |
| Trip Point Adjustment | 4-turn potentiometer | |
| Output | Solid state switch, N.O., adjustable time delay | |
| Output Rating | 1A @ 240 VAC | |
| Operating Voltage | Self powered | |
| Mounting | Panel or optional 35mm DIN rail | |
| Electrical Connection | Screw terminals | |
| UL Rating | UL 508 listed | |
