| Technical Data | ||
|---|---|---|

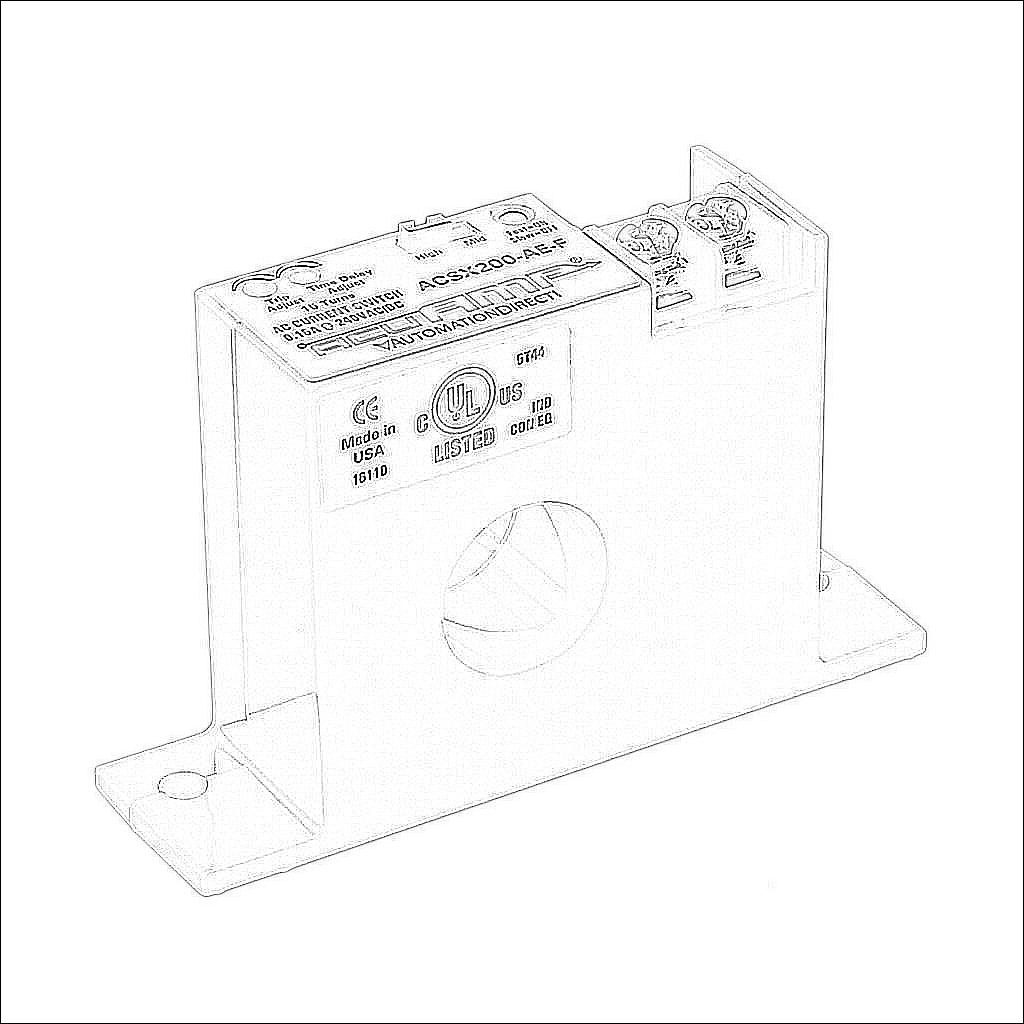

| Brand | AcuAMP | |
| Item | Current switch | |
| Voltage Type | AC | |
| Body Type | Fixed core | |
| Sensing Range | 1.5-12, 12-55, or 55-175A selectable | |
| True RMS | No | |
| Trip Point | 1.5-175A adjustable | |
| Trip Point Adjustment | 15-turn potentiometer | |
| Output | Solid state switch, N.O., adjustable time delay | |
| Output Rating | 0.15A @ 240 VAC/VDC | |
| Operating Voltage | Self powered | |
| Mounting | Panel or optional 35mm DIN rail | |
| Electrical Connection | Screw terminals | |
| UL Rating | UL 508 listed | |
