| Technical Data | ||
|---|---|---|
| Brand | Trumeter | |

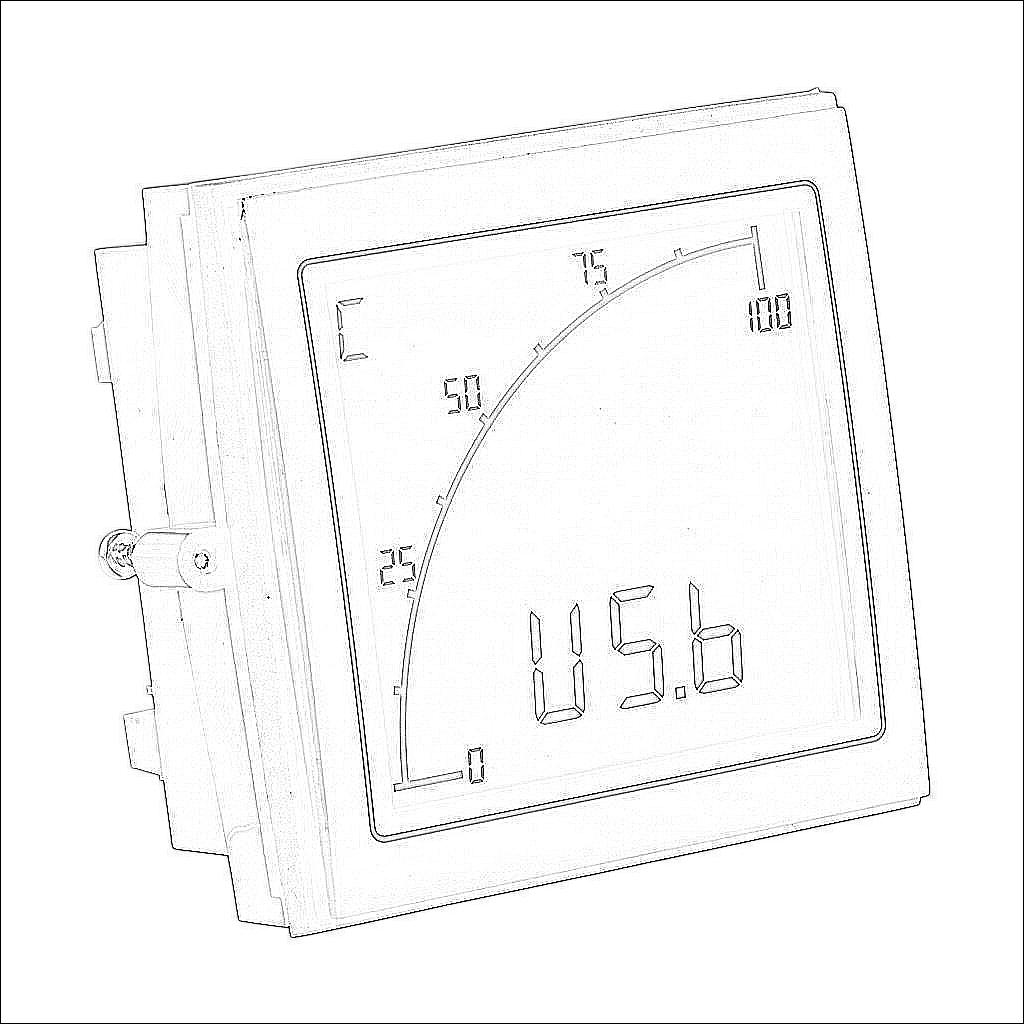

| Item | Graphical temperature meter | |
| Series | ADM100 | |
| Application | Standard | |
| Display Type | 3in negative backlit LCD configurable to white, green, red | |
| Input Thermocouple Signal Type | B, E, J, K, N, R, S, T | |
| Discrete Output Type | Open collector (34 VDC/0.5A) | |
| Output Current Signal Range | 4-20 mA | |
| Operating Voltage | 12-24 VAC/VDC | |
| Accuracy | 0.25% | |
| NEMA Rating | 4 | |
| IP Rating | IP65 | |
| Mounting | Panel | |
| Mounting Hole Size | 68 x 68mm (2.68 x 2.68in) | |
| Additional Information | Configurable using the free downloadable utility software. User customizable display parameters are static or based on alarm threshold: scaling, blinking, color, intensity, 4 digit alphanumeric message | |
