| Technical Data | ||
|---|---|---|
| Brand | Trumeter | |

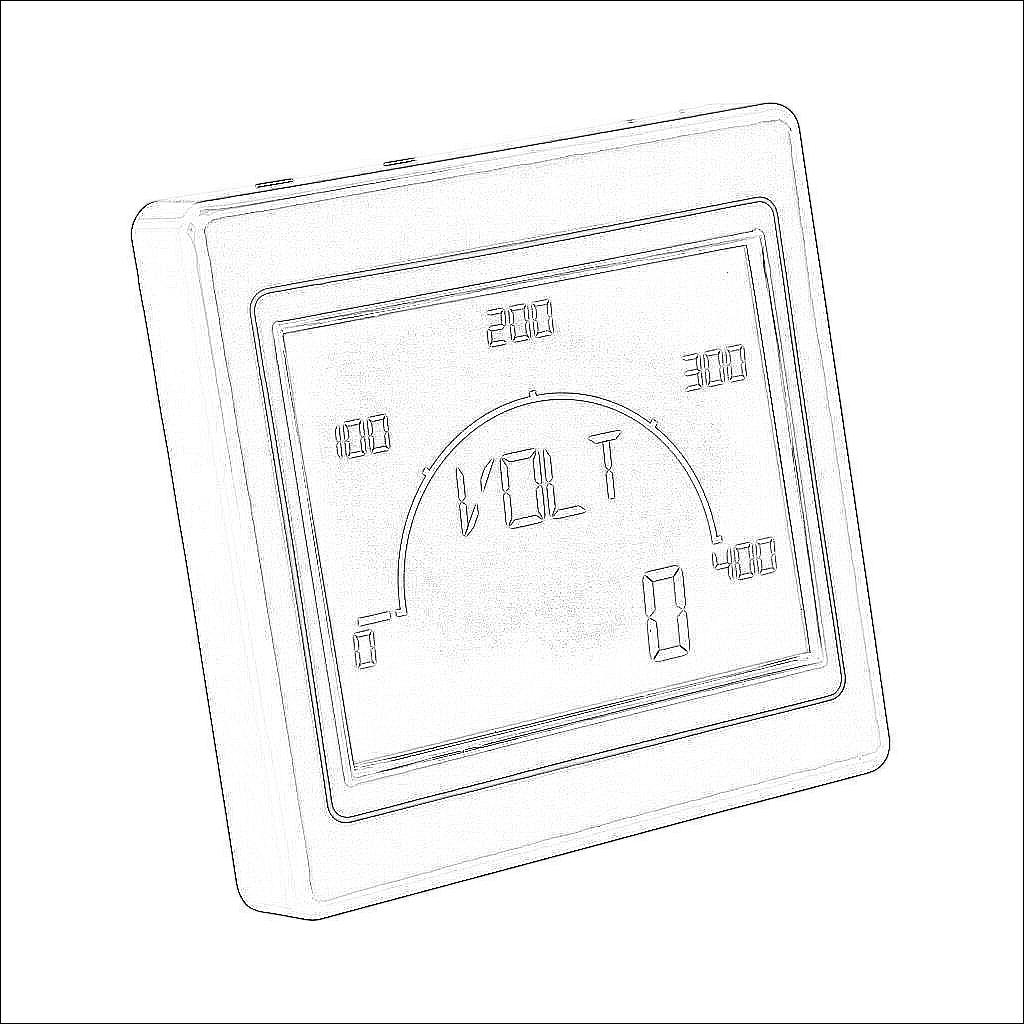

| Item | Graphical process meter | |
| Series | ADM200 | |
| Application | Advanced | |
| Display Type | 4in positive backlit LCD configurable to multiple RGB colors | |
| Input Current Signal Range | 0-50 mA | |
| Input Voltage Signal Range | 0-10 VDC and 0-500 mVDC (shunt) | |
| Input Frequency Signal Range | 0-400 Hz | |
| Discrete Output Type | Open collector (34 VDC/0.5A) | |
| Output Current Signal Range | 4-20 mA | |
| Operating Voltage | 12-24 VAC/VDC | |
| Accuracy | 0.5% current, 0.5% voltage, 0.5% power, 0.1% frequency | |
| Communication | Modbus RTU and Modbus TCP | |
| IP Rating | IP65 | |
| Mounting | Panel | |
| Mounting Hole Size | 68 x 68mm (2.68 x 2.68in) | |
| Additional Information | Configurable using the free downloadable utility software. User customizable display parameters are static or based on alarm threshold: scaling, blinking, color, intensity, 4 digit alphanumeric message | |
